Using surround view monitor(SVM) - Option

About SVM

• SVM (Surround View Monitor) is an option that is provided to the customers who selected the option.
• It is a system that allows you to see the front, rear, left and right through four cameras mounted on the vehicle.
• While vehicle is started, if gear is put to "R" position, it automatically starts SVM.
• If gear is changed from "R" to "P" position, SVM operation stops.

Operating front SVM

When the vehicle is started, put the transmission lever position to "N" or "D".

Press camera view button to execute the front SVM.

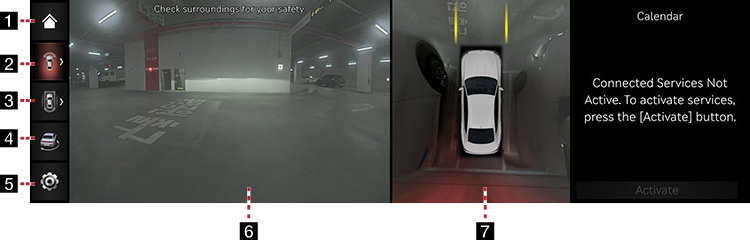

1 Home screen

Moves to the home screen.

2 Front top view

Displays the top view of the front screen of the vehicle magnified.

Front wide view

Only front screen of the vehicle is displayed.

Front side view

Displays left front/right front screen of the vehicle simultaneously.

3 Rear view while driving

Displays the rear screen of the vehicle and the top view.

4 3D surround view

Displays 3D screen around the vehicle.

5 SVM settings

Moves to the SVM settings menu.

6Front camera screen

Displays the rear view through the camera.

7 Top view camera screen

Displays combined image for each directions (left, right, front, rear) of side mirror camera.

,Reference

While front SVM is running, if you drive at about 15km/h or more, SVM is turned off. At this state, even if you drive at about 15km/h or less, SVM is remained at off state.

Operating rear SVM

When the vehicle is started, put the transmission lever position to "R". The rear SVM starts.

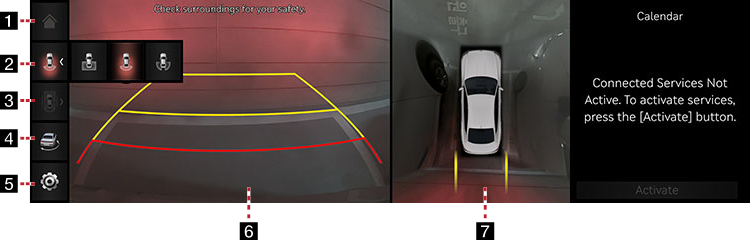

1 Home screen

Moves to the home screen.

2 Rear top view

Displays the top view of the rear of the vehicle screen magnified.

Rear wide view

Displays only the rear screen of the vehicle.

Rear side view

Displays left rear/right rear screen of the vehicle simultaneously.

3Rear view while driving

Displays the rear screen of the vehicle and the top view.

4 3D surround view

Displays 3D screen around the vehicle.

5 SVM settings

Moves to the SVM settings menu.

6Rear camera screen

Displays the rear view through the rear camera.

7 Top view camera screen

Displays combined image for each directions (left, right, front, rear) of side mirror camera.

,Reference

SVM camera has an optical lens to secure wide view, so there is a little difference between the distance shown on the screen and the actual one. For safety, make sure to check the rear, left, and right view by yourself.

About rear view while driving

It is a device that can see the rear of the vehicle while driving through the rear camera mounted on the vehicle.

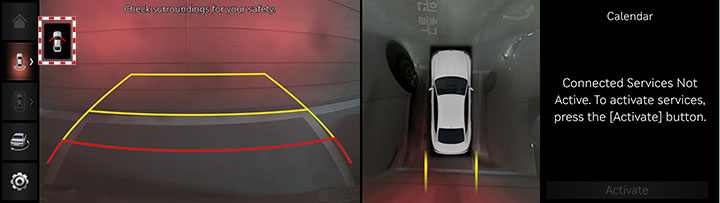

Operating the rear view while driving

When the vehicle is started, put the transmission lever position to "N" or "D".

Press parking/view button to execute the driving support view.

,Reference

When the rear view while driving is activated, the rear view while driving is maintained regardless of the vehicle speed. Press [HOME] button or the parking/view button to turn it off.

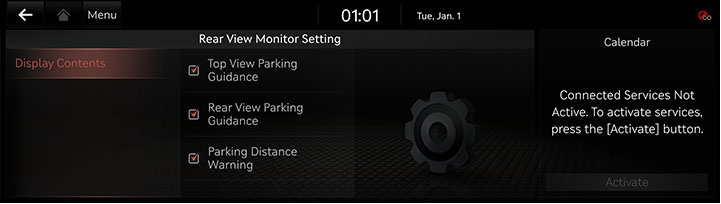

SVM settings

Press [a] on the SVM screen. Sets the properties of camera.

Warning display

A warning icon is displayed on the screen when the vehicle door or trunk is opened, or the side mirrors are folded.

• (Red color on left door): Driver’s door open indicator.
• (Red color on right door): Front passenger’s door open indicator.
• (Red color on trunk): Trunk open indicator.
• (Side mirror): Side mirror folding indicator.
