Name of each component

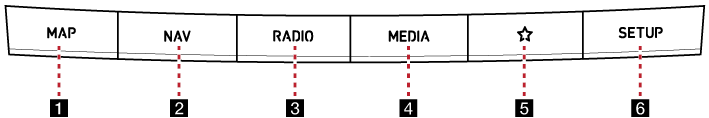

Head unit

The images may differ from the actual components.

1 MAP button

• Moves to the map screen showing the current position of the vehicle.
• When the destination is set, the voice navigation starts on the map screen.

2 NAV button

• Moves to the navigation menu screen.
• Press and hold to move to the destination search screen.

3 RADIO button

• Activates radio mode.
• Press to change to FM, AM or DMB mode.

4 MEDIA button

• Press to switch between the media menu screen and the media playback screen.
• Press and hold to move to the media menu screen.

5 K(Custom) button

• Activates the selected custom function.
• Press and hold to move to the custom button settings screen.

6 SETUP button

• Moves to the settings screen.
• Press and hold to move to the general settings screen.

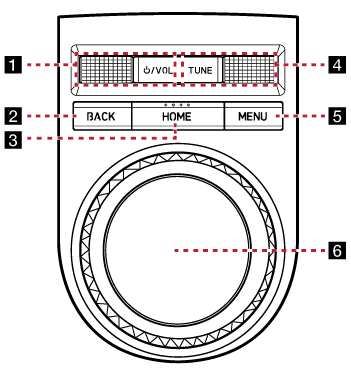

Front seat control key

The images may differ from the actual components.

1 :/VOL wheel button

• Press briefly to turn AV on/off.
• Press and hold to turn on or off the display.
• Turn the wheel up/down to adjust the volume.

2 BACK button

• Press briefly to move to the previous screen.
• Press and hold to go to the home screen.

3 HOME button

• Press briefly to go to the home screen.
• Press and hold to go to the map screen.

4 TUNE wheel button

• Radio: Turning the wheel up/down to increases/decreases the frequency by one step. (FM: 0.1MHz, AM: 9 KHz)
• USB, Sounds of nature, Voice memo, Bluetooth Audio, Music streaming: Search for a file by turning the wheel up/down. And, when the name of desired file is displayed, press the button to play the file.
• DMB: Search for a channel by turning the wheel up/down.
• Navigation: Turn up/down to change the map scale on the map screen.

5MENU button

• Press briefly to displays a pop-up menu for each mode.
• Press and hold to turn split screen on or off on the map screen.

6Controller

• Use controller to move and select the menu.
• Use controller to change the map scale on the map screen.

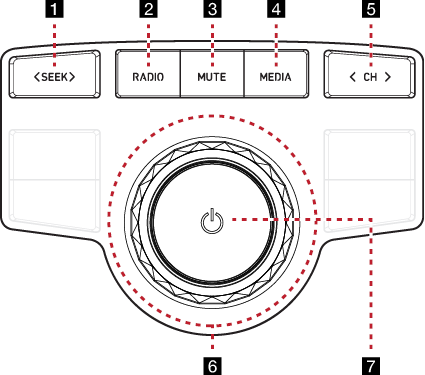

Rear remote control (Option - A)

The image of this product may be different from the actual product.

The RRC (Rear Remote Control) function keys differ depending on the selected option.

1 A SEEK D button

Selects or searches the previous/next item in each mode.

2 RADIO button

Activates radio mode.

3 MUTE button

Turns mute on/off.

4 MEDIA button

Each press of the media button toggles to the playable media playback screen.

5 A CH D button

• Radio mode: Selects a preset radio station.
• DMB mode: Selects a channel.
• Media mode: The previous/next item is selected or searched in each mode.

6Controller

Turns the wheel left/right to adjust the volume.

7 1 (Power) button

• Press to turn AV on/off.
• Press and hold to turn on or off the display

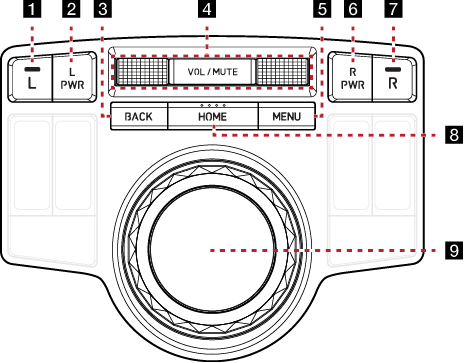

Rear remote control (Option - B)

The image of this product may be different from the actual product.

The RRC (Rear Remote Control) function keys differ depending on the selected option.

1L button

Press to use the rear remote control only for left monitor of rear seat.

2 L PWR button

• Press to turn the left monitor of rear seat on/off.
• Press and hold to turn AV on/off.

3 BACK button

Press to move to the previous screen.

4 VOL / MUTE button

• Turns the wheel up/down to adjust the volume.
• Press the wheel to turn mute on/off.

5MENU button

Press to display a pop-up menu for each mode.

6R PWR button

• Press to turn the right monitor of rear seat on/off.
• Press and hold to turn AV on/off.

7 R button

Press to use the rear remote control only for right monitor of rear seat.

8 HOME button

Press to move to the home screen.

9 Controller

Use controller to move and select the menu.

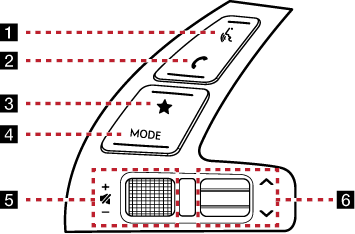

Steering wheel remote control

The images may differ from the actual components.

1 i (Voice recognition) button

• When it is pressed shortly
• Activates voice recognition mode
• Press and hold the button to cancel voice recognition.
• When it is pressed and held
• Activates voice recognition mode of the connected phone projection device.

2 W (Bluetooth call) button

When it is pressed shortly

• Searches new Bluetooth phone or connects the registered phone if Bluetooth is not connected.
• If Bluetooth is connected,
• If selected in the call waiting screen, displays call history screen.
• If selected in call history screen, makes a call to last called number.
• If selected in phone entrance screen, enters the last call number.
• If selected in phone reception alert screen, answers the phone call.
• If selected in calling, ends the call.

When it is pressed and held

• When Bluetooth is connected, if selected in Bluetooth hand free waiting mode, redials.
• If selected in calling, ends the call.

3 L (User) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

4 MODE button

• When it is pressed shortly
• Selects a mode from FM, AM, DMB, USB music, USB video, Sounds of nature, Phone projection, genie music or Bluetooth audio.
• When it is pressed and held
• Moves to the MODE Button (Steering wheel) settings screen.

5 J/I button

Turn the wheel up/down to adjust the volume.

f (MUTE) button

Press the wheel to turn mute on/off.

6 S/W button

• When it is pressed shortly
• Selects a preset radio station in Radio mode.
• Moves to a channel in DMB mode.
• In media mode, searches track, file or chapter
• When it is pressed and held
• In Radio mode, Broadcasting are automatically searched.
• While USB mode activated, rewinds or fast forwards the file.
