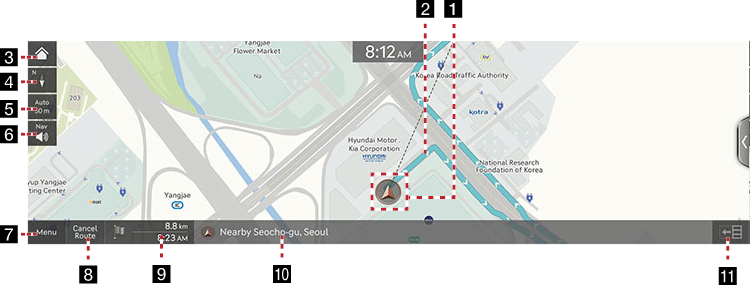

Map Screen Composition

1 Vehicle Position Mark

Shows the current vehicle position and the direction of vehicle movement.

2Route Display

A rough from the current vehicle position to the set destiny is displayed.

3 B

Moves to the home screen.

4 Map View

The Map is displayed based on the vehicle direction or the North direction.

GPS Reception Status Display

• Reception: Specified in color
• Reception Failure: Specified in grey color

5 Map Scale Display

Switches to a desired scale in 25 m~100 km level.

• (Auto Inactivation): Fixed scale
• (Auto Activation): Automatic Scale (Scale changes based on the current vehicle speed)

6 Navigation Volume

Sets the voice and the sound effect of the navigation.

• c: Activate the voice and the sound effect.
• d: Mute the guidance voice and guidance sound effect.

7 Menu

Opens the popup menu.

8 Cancel Route/Resume Route

• Deletes the currently set route to press the [Cancel Route].
• Press and hold [Cancel Route] on the map screen to pause the currently set guidance.
• Press [Resume Route] to guide the paused route again.

9 Estimated Arrival Time and Remaining Distance

Displays the remaining distance, the required time and the estimated time to arrive the destination.

10 Current Location and Destination Name Display

Displays the current location and the destination name.

11 s

Turns the TBT (Turn By Turn) on/off.

• Displays distance and direction information for the upcoming TBT (Turn By Turn) when the route is activated.
• TBT (Turn By Turn) is deactivated when the route is not set.

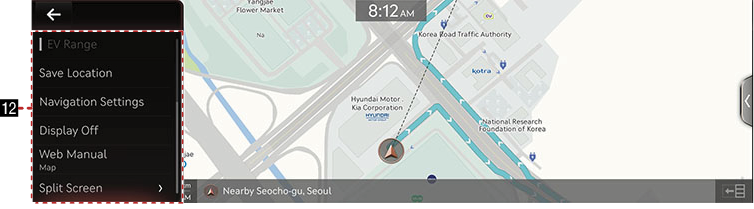

12 Route

Shows route menu.

Destination

Shows various menus to search destination.

Location Sharing

Moves to location sharing menu screen.

Display Traffic

Sets whether to display traffic information.

Nearby Info.

Searches the surrounding area.

EV Range

Displays EV range information.

Save

Saves the current location in Address Book.

Navigation Settings

Moves to the navigation settings.

Display Off

Turns off the screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.
