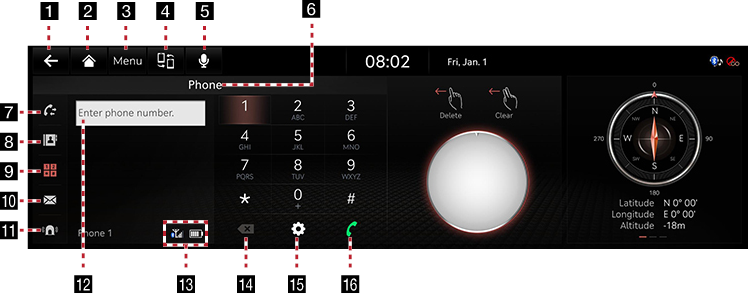

Using Dial Screen

Press [G] on the screen.

1 a

Switches to the home screen or the previous screen.

2 B

Moves to the home screen.

3 Menu

Displays popup menu of each mode.

4 Change Device

Displays the change device pop-up.

5 Voice Recognition

Moves to voice recognition.

6 Mode Display

Shows the mode currently in play.

7 I (Recent Calls)

Moves to recent calls screen.

8 F (Contacts)

Moves to contacts screen.

9 G (Dial Pad Screen)

Moves to Bluetooth phone dial pad screen.

10 H (Message)

Moves to message screen.

11 (Emergency calls)

Moves to the emergency calls screen.

12 Number Entrance Window

Opens phone number entrance window.

13 (Reception level icon)

The reception level (sensitivity) of the calling area is specified in the bar graph.

(Mobile battery icon)

Specifies the remaining battery of mobile phone.

14 N (Delete)

Deletes the entered phone no.

15 a (Setting)

Moves to device connection settings screen.

16 U (Call)

If there is a registered phone no., the call is connected. If there is no registered phone no., the most recent call number is entered.

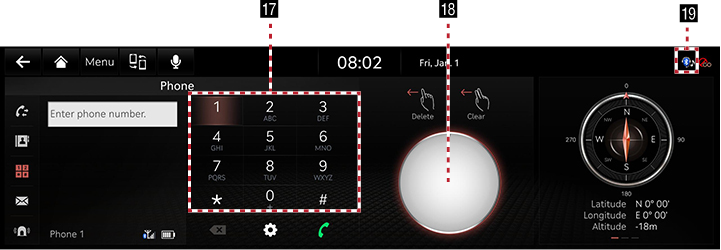

17 Dial Pad

Enter the phone number to call. The entered number is displayed on the number entrance window.

18 Touchpad recognition screen

Display the screen when handwriting on touchpad is recognized.

19 (Bluetooth Connection Icon)

Shows the connection status between Bluetooth phone and the head unit.

When the phone is connected and the phone call is made, Bluetooth Icon () switches to Handset Icon ().
