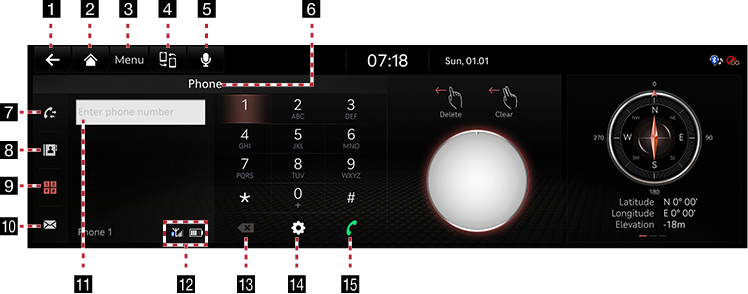

Using dial screen

Press [G] on the screen.

1 a

Switches to home or the previous screen.

2 B

Moves to home screen.

3 Menu

Displays pop-up menu of each mode.

4 Change connection

Displays the change device pop-up. (Displays the icon when there is more than one connected device.)

5 Voice recognition

Moves to voice recognition.

6 Mode display

Shows the active mode currently.

7 I (Recent calls)

Moves to recent calls screen.

8 F (Contacts)

Moves to contacts screen.

9 G (Dial pad screen)

Moves to Bluetooth phone dial pad screen.

10 H (Message)

Moves to Message screen.

11 Number entrance window

Enter phone number or initial letter.

12 (Reception level icon)

The reception level (sensitivity) of the calling area is specified in the bar graph.

(Mobile battery icon)

Specifies the remaining battery of mobile phone.

13 N (Delete)

Deletes the entered phone no.

14 a (Setting)

Moves to Bluetooth settings screen.

15 U (Call)

If there is a registered phone no., the call is connected. If there is no registered phone no., the most recent call number is entered.

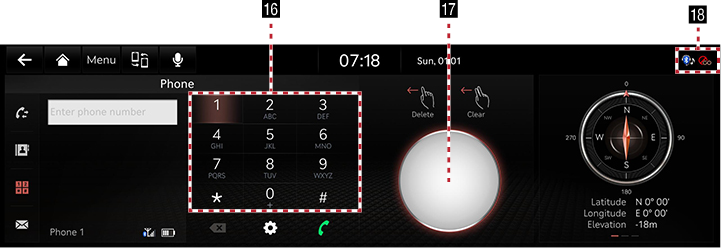

16 Dial pad

Enter the phone number to call. The entered number is displayed on the number entrance window.

17 Touchpad recognition screen

Display the screen when handwriting on touchpad is recognized.

18 (Bluetooth connection icon)

Shows the connection status between Bluetooth phone and the head unit.

When the phone is connected and the phone call is made, Bluetooth icon () switches to calling icon ().
