Climate

The images may differ from the actual components.

Operating Climate

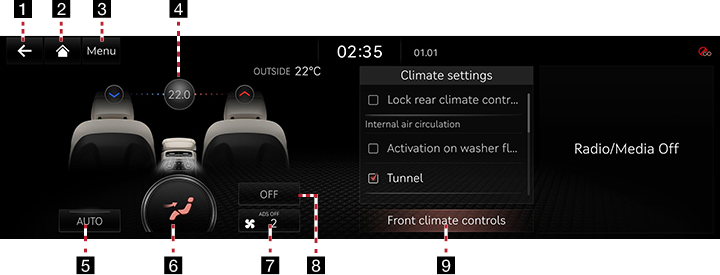

Press [Climate] on the home screen.

1 a

Moves to home screen or the previous screen.

2 B

Moves to home screen.

3 Menu

Shows climate menu.

4 Outside temperature

It displays the current temperature outside the vehicle.

5 Lock rear climate controls

Disables the rear seat passengers climate controls.

Activation on washer fluid use

Automatically prevents the washer fluid scent from entering the cabin.

Tunnel

Blocks the flow of outside air into the vehicle cabin when entering the tunnel.

Recirculation mode plus

Uses navigation information to prevent unpleasant gases and odors from entering the vehicle at known locations.

Auto dehumidify

Automatically switches to fresh air ventilation to decrease humidity after an extended use of air recirculation.

Auto defog

Automatically activates various defog functions based on the level of humidity in the vehicle cabin.

Air conditioner auto-dry

After the car turned off, the fan will run automatically to dry the inside of the air conditioner to prevent mold growth.

Steering wheel heating

Seat heating adjusts automatically to maintain driver comfort.

Seat heating/ventilation

Seat heating/ventilation adjusts automatically to maintain driver comfort.

6 Front seat set temperature

It sets the set temperature of the front seat.

7 Blower position

Changes the seat blower position to up/down.

8 AUTO

The air cooling and heating are automatically activated according to the set temperature.

A/C

When the A/C is active, air conditioner is operated for vehicle cooling.

HEAT

Turns the heater on and off.

DRIVER ONLY

Only the driver's seat activates the climate mode.

OFF

Turns off the climate function.

Blower level

Sets the blower speed.

SYNC

When the SYNC is active, passenger seat and driver seat are synchronized.

9 Rear climate controls

It sets the air conditioning temperature and air volume operating in the rear seats.

Controlling Rear Seat Climate

Powers on or off of the climate device of rear seat.

Press [Rear climate controls] on the climate screen.

1 a

Moves to home screen or the previous screen.

2 B

Moves to home screen.

3 Menu

Shows climate menu.

4 Rear seat set temperature

It sets the set temperature of the rear seat.

5 AUTO

The air cooling and heating are automatically activated according to the set temperature.

6 Blower position

Changes the seat blower position to up/down.

7 Blower level

It displays the set blower level.

8 OFF

Turns the air conditioner off.

9 Front climate controls

It sets the air conditioning temperature and air volume operating in the front seats.
