Navigation

Setting routes

Route Display

After setting a destination, press [Menu] > [Route] on the map screen.


Cancel route

Cancel the currently set route.

Reroute

Searches a route to the destination again.

Route options

Various route options are available to search to the set destination.

Plan tour

Started location, tourpoint and destination are listed. The corresponding locations and the list order can be edited.

Route overview

Check the route overview to the set destination.

Route info/Avoidance options

This allows you to view the distance to the next guide point and the turning direction at that guiding point. And you can avoid certain streets due to traffic conditions. You can calculate an alternative route from the vehicle location to the destination.

Destination info

Shows the remaining distance, the estimated time required and the estimated time of arrival to the set destination.

Stop guidance/Resume guidance

Stop or Resume the navigation to the current set destination.

Press and hold [Cancel route] at the bottom of the map screen to stop the route.

Press [Resume guidance] at the bottom of the map screen to resume the route.

Cancel Route

Cancel the route to the set destination.

Press [Cancel route] at the bottom of the map screen. Or press [Menu] > [Route] > [Cancel route] on the map screen.

Route Options

Various route options are available to search to the set destination.

  1. Press [Menu] > [Route] > [Route options] on the map screen.
  2. Select the desired route option.


,Note

The [Avoidance options] is changed to the [Route options] when activating Genesis connected services.

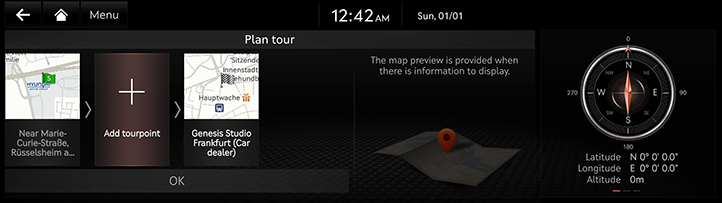

Plan tour

Tourpoints can be added/deleted/edited and the order can be changed.

Adding Tourpoints

Add tourpoint(s) after setting the destination. Up to 2 tourpoints can be added. If 2 tourpoints have been added, add a new tourpoint after deleting the added tourpoints.

  1. Press [Menu] > [Route] > [Plan tour] on the map screen.


  1. Press [Add tourpoint].
  2. Set a tourpoints using various search method.


  1. Repeat step 2-3 to add another tourpoint.
  2. Press [Calculate].

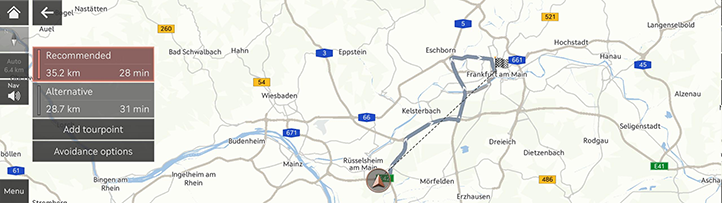

  3. Select a desired route.

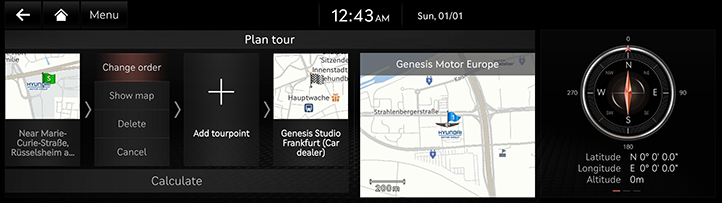

Destination/tourpoints Map View and Delete

  1. Press [Menu] > [Route] > [Plan tour] on the map screen.
  2. After pressing the tourpoints or destination, press [Show map] or [Delete].

Changing route order

In case of any added tourpoints, the route order between the tourpoints and the destination can be changed.

  1. Press [Menu] > [Route] > [Plan tour] on the map screen.
  2. After pressing the tourpoints or destination, press [Change order].


  1. Change the order by pressing and dragging left/right the tourpoints or destination.


  1. Press [Calculate].
  2. Select a desired route.

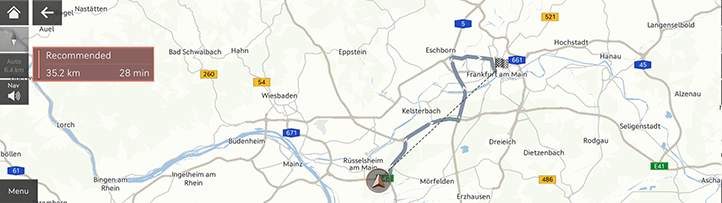

Route Overview

Check the route overview to the set destination.

Press [Menu] > [Route] > [Route overview] on the map screen.

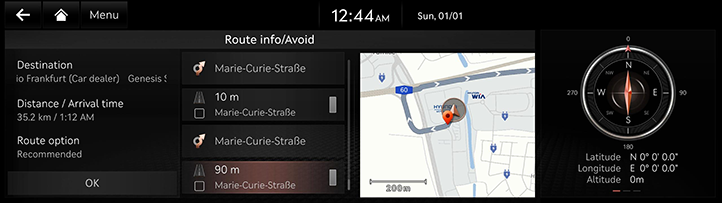

Route info/Avoidance options

This allows you to view the distance to the next guide point and the turning direction at that guiding point. And you can avoid certain streets due to traffic conditions. You can calculate an alternative route from the vehicle location to the destination.

  1. Press [Menu] > [Route] > [Route info/Avoidance options] on the map screen.


  1. Press the street to check the map information. And press the checkmark to select the street(s) that you want to avoid.
  2. Press [Reroute] > [Yes].
  3. Select a desired route.

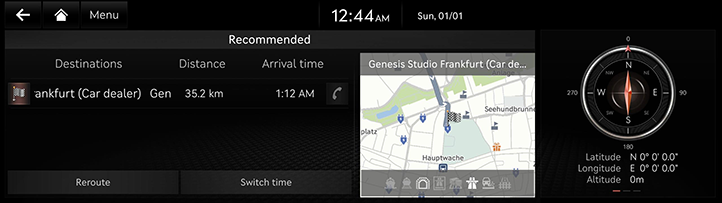

Destination info

Shows the remaining distance, the estimated time required and the estimated time of arrival to the set destination.

  1. Press [Menu] > [Route] > [Destination info] on the map screen.


  1. Select a desired item.
