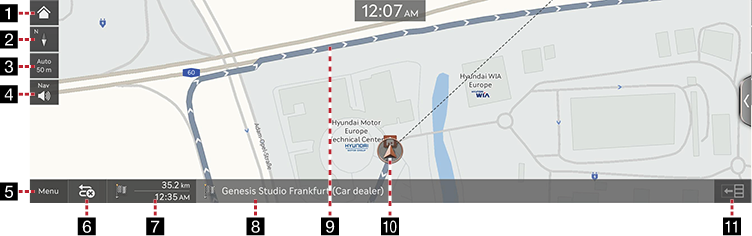

Map screen

1 Home screen

Moves to home screen.

2Map view

Sets the view mode of navigation map.

3 Map scale display

Set a desired scale in 25 m~3000 km level.

• []: Fixed scale
• []: Automatic scale (Scale changes based on the current vehicle speed)

4 Navigation volume

Set the navigation voice guidance volume.

5 Menu

Displays the quick menu list.

6 Cancel route/Resume guidance

• Press [Cancel route] to cancel the currently set route.
• Press and hold [Cancel route] on the map screen to pause the currently set destination.
• Press [Resume guidance] to guide the paused route again.

7 Estimated arrival time and remaining distance

Displays the remaining distance, the required time and the estimated time to arrive the destination.

8 Current location and destination name display

Displays the current location and the destination name.

9 Route guidance lane

Displays the route guidance lane to the destination when a route is set.

GPS reception status display

• Reception: Marked in colour
• Reception failure: Marked in grey colour

10 Vehicle location mark

Displays the current vehicle location and the direction.

11 TBT (Turn By Turn)

Turns the TBT (Turn By Turn) on/off.

• Displays distance and direction information for the upcoming TBT (Turn By Turn) when the route is activated.
• TBT (Turn By Turn) is deactivated when the route is not set.
