Button/Touch Pad settings

The images displayed on this system may differ from actual ones.

Move to Button/Touch Pad Settings screen

You can set button/touch pad Settings Items.

Press [Setup] > [Button/Touch Pad] on the home screen. Button/touch pad settings screen is displayed.

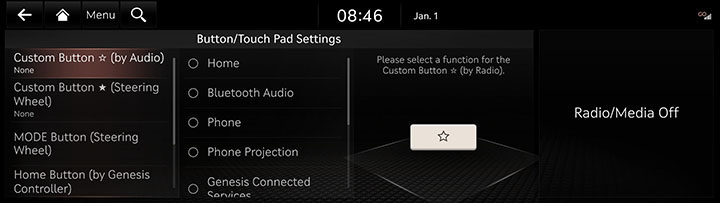

Custom Button K (by Audio)/L (Steering Wheel)

You can set the function you want to execute with the user button.

1. On the button/touch pad settings screen, press [Custom Button K (by Audio)/L (Steering Wheel)].

2. Press the desired item.

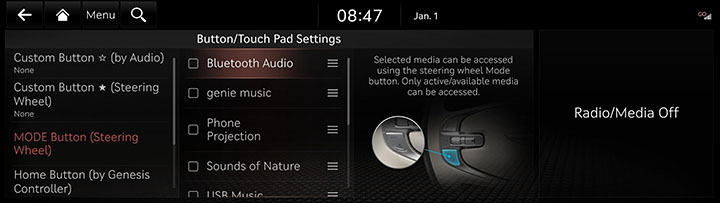

Mode Button (Steering Wheel)

The selected media can be accessed by pressing the steering wheel mode button. Only active/available media can be accessed.

1. On the button/touch pad settings screen, press [MODE Button (Steering Wheel)].

2. Press a desired mode.

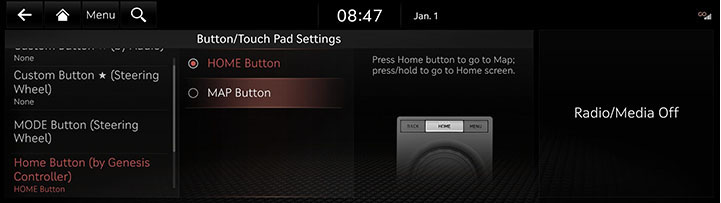

HOME button (by Genesis Controller)

Sets the function to be activated when the Home button is pressed briefly.

1. On the button/touch pad Setting screen, press the [Home button (by Genesis Controller)].

2. Press a desired item.

• [HOME Button]: Shortly press the home button to go to the home screen.
• [MAP Button]: Shortly press the home button to go to the map screen.

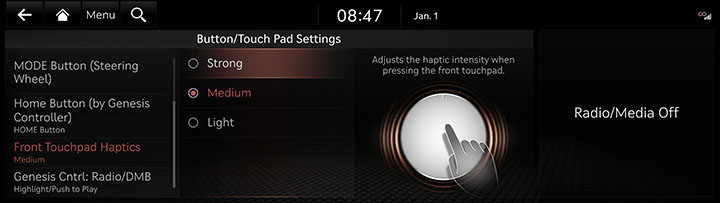

Front Touchpad Haptics

You can adjust the haptic intensity when pressing the front touch pad.

1. On the button/touch pad settings screen, Press [Front Touchpad Haptics].

2. Press a desired item.

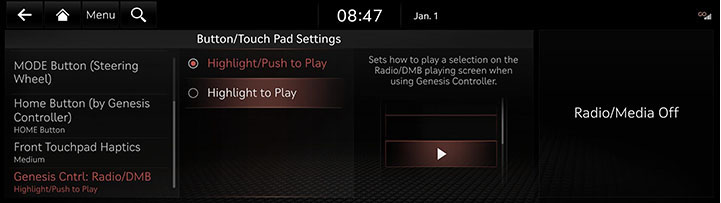

Genesis CNTRL: RADIO/DMB

Sets how to play a selection on the Radio/DMB playing screen when using rotary controller.

1. On the button/touch pad settings screen, press the [Genesis Cntrl: Radio/DMB].

2. Press a desired item.
