Media

Playing USB

USB Music Screen Composition



1 a

Moves to the home screen or the previous screen.

2 B

Moves to the home screen.

3 Menu

Shows USB music menu.

4 List

Moves to list screen.

5 QLS (Quantum Logic Surround, If equipped)

Shows 3 sound modes as Reference, Audience and On Stage.

6 Played File Information

Shows the artist, song title and the album title.

7 Mode Display

Shows the mode currently in play.

8 Play List

Displays the play list.

9 Shuffle

Activates/Clears random play.

Control Panel

Controls play, pause and search.

Repeat

Activates repeat.

10 Hide Current File

Moves the music currently in play to Hidden_Folder. The moved music is not shown in Play List and not available for play.

11 Play Time

Shows the play time information.

12 File Index

Shows the entire number of files.

13 Display Off

Turns off the screen.

List

Moves to list screen.

Shuffle

Activates/Clears random play.

Repeat

Activates repeat.

Media Sources

Selects the desired media mode.

Songs for This Artist

Moves the artist list of the current song.

Songs for This Album

Moves the album list of the current song.

Hide Current File

Moves the music currently in play to Hidden_Folder. The moved music is not shown in Play List and not available for play.

Sound Settings

Moves to the sound setting screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.

Playing USB Music

Connect a USB memory to USB connection terminal.

,Reference

To play USB Music while the other media is in play, press [Menu] > [Media Sources] > [USB Music] on the others media screen.

Pause/Play

Pause/Play a file.

Location

Details

Front screen

  • Touch [M] during pay.
  • Touch [d] during pause.

Controller

  • Press Controller during play.
  • Press Controller during pause.

Play Previous/Next Music

Plays the previous/next music.

Location

Details

Front screen

  • Touch [C/V].
  • Touch [C] after playing for 3 seconds starts the music from the beginning.

Forward/Reverse Search

Rapidly searches the file in play.

Location

Details

Front screen

After touching on [C/V] for a long time and release the finger at the desired spot, the music starts from that spot.

,Reference

  • When pressing [C/V] for 5 seconds or longer, the play speed changes as 4X > 20X.
  • No audio is on during forward/reverse searching.

Search Previous/Next Music

Plays the previous/next music.

During searching, the file name is highlighted. When the desired file name is displayed, press [TUNE] and controller on the front seat control key to play the file.

Location

Details

Front seat control key

Rotate [TUNE] to up/down. And when the desired music is displayed press the button.

Controller

Rotate controller to left/right. And when the desired music is displayed press controller.

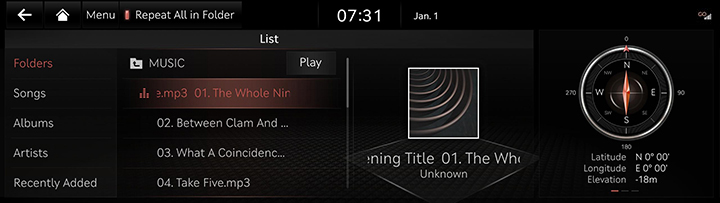

Viewing List

May play a desired file by searching the list.

  1. Press [List] on the playing screen. Or press [Menu] > [List].


  1. In list screen, search a desired file by folder, songs or albums, artists or recently added. When the desired file found from the search is selected, the file plays.

,Reference

  • If you press [Play] on the list screen, plays from the first file within the selected folder.
  • Activate [Repeat All in Folder] to play including media files in the subfolder.

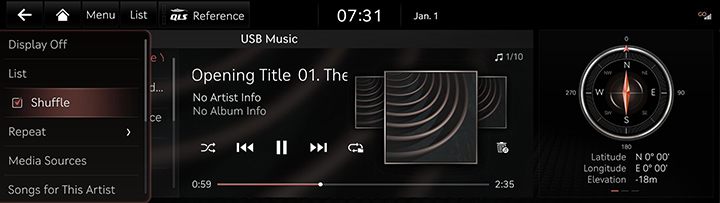

Shuffle Play

Play the entire files in a random order.

  1. Press [Menu] > [Shuffle] on the playing screen.


  1. Check on the box left to [Shuffle] to set random play. To cancel the random play, press [Shuffle] again.

,Reference

Selecting [q/r] on the front screen activates/clears shuffle play.

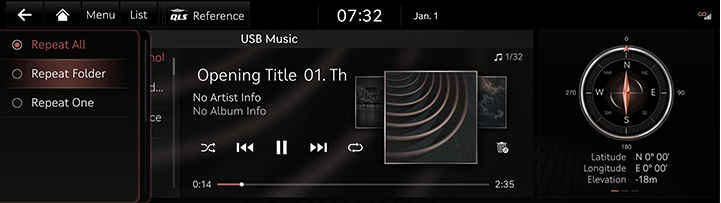

Repeat

A file plays repeatedly.

  1. Press [Menu] > [Repeat] on the playing screen.


  1. Press a desired repeat mode.

,Reference

Selecting [k]/[m]/[l]/[n] on the front screen also activates repeat.

  • k: Repeat all
  • m: Repeat album/repeat Artist (It is displayed when all files repeat during playback from the [Albums] or [Artists] category.)
  • l: Repeat folder
  • n: Repeat one

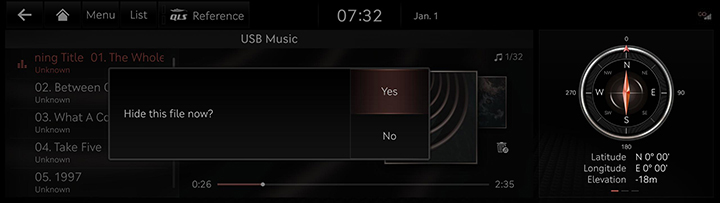

Hide Current File

Moves the music currently in play to Hidden_Folder. The moved music is not shown in play list and not available for play.

  1. Press [Menu] > [Hide Current File] on the playing screen.


  1. Press [Yes].

,Reference

Selecting [G] on the front screen to implement hide current file.

Songs for This Artist

Moves the artist list of the current song.

Press [Menu] > [Songs for This Artist].

,Reference

You can go to the list by pressing artist on the playing screen.

Songs for This Album

Moves the album list of the current song.

Press [Menu] > [Songs for This Album].

,Reference

You can go to the list by pressing album art on the playing screen.

Sound Settings

  1. Press [Menu] > [Sound Settings] on the playing screen.
  2. For more details, refer to the "Sound Settings".

USB Video Screen Composition



1 a

Moves to the home screen or the previous screen.

2 B

Moves to the home screen.

3 Menu

Shows USB video menu.

4 List

Moves to list screen.

5 QLS (Quantum Logic Surround, If equipped)

Shows 3 sound modes as Reference, Audience and On Stage.

6 Mode Display

Shows the mode currently in play.

7 Play List

Displays the play list.

8 Full Screen

Video is played on the entire screen.

Control Panel

Controls play, pause, search and 30 seconds before/after.

Repeat

Activates repeat.

9 Play Time

Shows the play time information.

10 File Index

Shows the entire number of files.

11 Display Off

Turns off the screen.

List

Moves to list screen.

Repeat

Activates repeat.

Media Sources

Selects the desired media mode.

File Information

Shows file name, resolution and play time.

Subtitle Settings

Sets the subtitle.

Sound Settings

Moves to sound setting screen.

Display Settings

Moves to display setting screen.

Voice Settings

Sets the voice.

Full Screen

Video is played on the entire screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.

Playing USB Video

Connect a USB memory to USB connection terminal.

,Reference

  • To play USB video while the other media is in play, press [Menu] > [Media Sources] > [USB Video] on the others media screen.
  • For the safety, the video is not supported and other partial features are restricted while the vehicle is in driving condition. However, the audio is played.
  • Even when the vehicle stops, if the gear is not in P position, the video is not supported.

Pause/Play

Pause/Play a file.

Location

Details

Front screen

  • Touch [M] during play.
  • Touch [d] during pause.

Controller

  • Press controller during play.
  • Press controller during pause.

Switching USB Display Screen (Basic Mode Screen/Entire Screen)

Location

Details

Front screen

Touch the screen.

Controller

When controller is dragged to up or down or pressed on the entire screen, basic mode screen opens.

,Reference

  • When no control within 5 seconds on basic mode screen, it automatically switches to the entire screen.
  • The entire screen opens by selecting [O] or [Menu] on the basic mode screen and selecting [Full Screen] as well.

Play Previous/Next File

Plays the previous/next file.

Location

Details

Front screen

  • Touch [C/V].
  • Touch [C] after playing for 3 seconds starts the file from the beginning.

Forward/Reverse Search

Rapidly searches the file in play.

Location

Details

Front screen

After touching on [C/V] for a long time and release the finger at the desired spot, the file starts from that spot.

,Reference

  • When pressing [C/V] for 5 seconds or longer, the play speed changes as 4X > 20X.
  • No audio is on during forward/reverse Searching.

Searching Previous/Next File

Plays the previous/next music.

During searching, the file is highlighted. When the desired file name is displayed, press [TUNE] and controller on the front seat control key to play the file.

Location

Details

Front seat control key

Rotate [TUNE] to left/right. And when the desired file is displayed press the button.

Move before/after 30 seconds

Moves the playing file 30 seconds before/after.

Location

Details

Front screen

Press [6_MEDIA_ICON_BEFORE.jpg]/[6_MEDIA_ICON_AFTER.jpg] to move the playing file 30 seconds before/after.

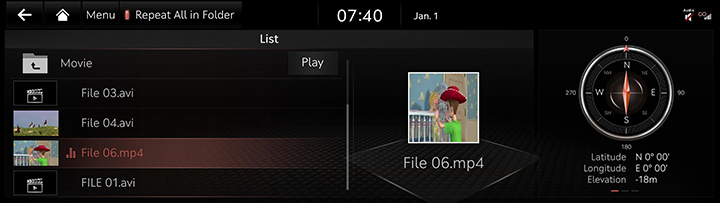

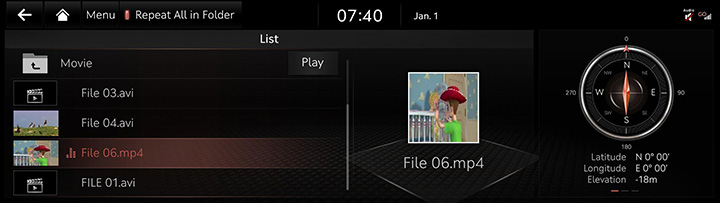

Viewing List

May play a desired file by searching the list.

  1. Press [List] on the playing screen. Or press [Menu] > [List].


  1. Selecting a desired file in list screen starts playing the file.

,Reference

  • If you press [Play] on the list screen, plays from the first file within the selected folder.
  • Activate [Repeat All in Folder] to play including media files in the subfolder.

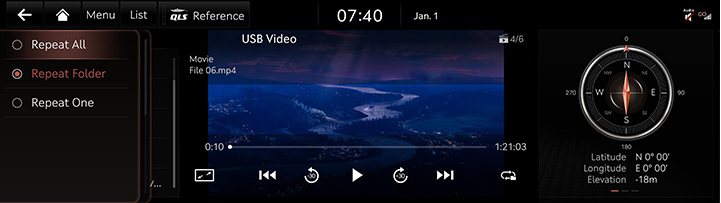

Repeat

A file plays repeatedly.

  1. Press [Menu] > [Repeat] on the playing screen.


  1. Press a desired repeat mode.

,Reference

Selecting [k]/[l]/[n] on the front screen also activates repeat.

  • k: Repeat all
  • l: Repeat folder
  • n: Repeat one

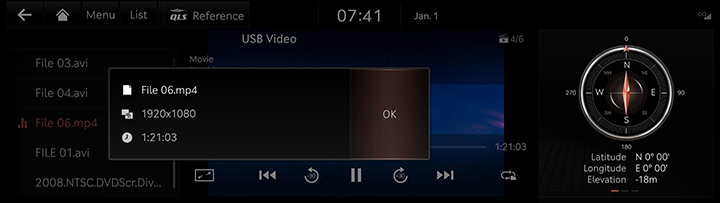

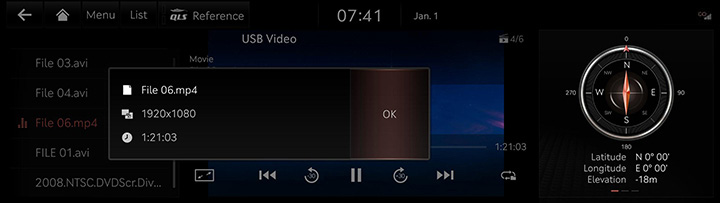

Music Information

Shows the information on the name, size and play time of the file currently in play.

  1. Press [Menu] > [File Information] on the playing screen.


  1. Press [OK].

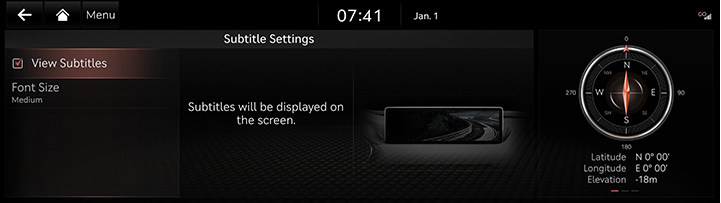

Subtitle Settings

Available to use for a file supporting multiple-subtitles. Selects the subtitle displayed on the screen.

  1. Press [Menu] > [Subtitle Settings] on the playing screen.


  1. Selecting a desired menu.

Sound Settings

  1. Press [Menu] > [Sound Settings] on the playing screen.
  2. For more details, refer to the "Sound Settings".

Display Settings

Adjusts Brightness/Contrast/Saturation for video play.

  1. Press [Menu] > [Display Settings] on the playing screen.
  2. For more details, refer to the "Display Settings".

Voice Settings

Available to use for a file supporting multiple voices.

  1. Press [Menu] > [Voice Settings] on the playing screen.
  2. Select a desired voice.
