Radio

Activating Radio

FM/AM Mode Screen Composition



1 a

Moves to the home screen or the previous screen.

2 B

Moves to the home screen.

3 Menu

Shows radio menu.

4 FM/AM

Selects the desired radio band by pressing FM or AM.

5 Voice Recognition

Moves to voice recognition screen.

6 Mode Display

Shows the mode currently in play.

7 Frequency bar

Shows the frequency bar of currently tuned station.

8 Preset List

Shows radio frequency saved in preset list.

9 Frequency

Shows the frequency of currently tuned station.

10 Radio scan

Searches the frequency to left/right.

11 SoundHound

Searches for the information of currently playing music.

12 Display Off

Turns off the screen.

Station List

Moves to station list screen.

Radio Noise Control

Moves to the radio noise control settings screen.

Scan FM/Scan AM

Each channel of good reception is received for 5 seconds.

Save Preset

Saves the current frequency in a desired preset list.

Delete Presets

Delete channels saved in preset list.

SoundHound

Searches for the information of currently playing music.

SoundHound History

Moves to music list screen that was recently viewed by the sound hound.

Sound Settings

Moves to sound setting screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.

Activating FM/AM Mode

  1. Press [RADIO] on the head unit. Or press [Radio] on the home screen.

The last listened mode among FM/AM plays.

  1. Each pressing on [RADIO] on the head unit switches the mode in sequence of FM > AM > DMB > FM. Or press [FM] or [AM] on radio screen to select a desired mode.
  2. Select a radio frequency and listen to the radio.

Selecting a Radio Frequency

Manually Selecting a Frequency

Direct selection of a radio frequency is available.

Frequency is up or down by one level (FM: 0.1 MHz, AM: 9 KHz).


,Reference

When listening the radio while the other screen is on, rotating [TUNE] on the front seat control key to up/down shows decreasing or increasing the frequency on the top of the screen.

Automatically Selecting a Frequency

Automatic selection of a radio frequency is available.

In FM or AM mode, pressing [Menu] > [Scan FM]/[Scan AM] or releasing after pressing and holding [S/W] on steering wheel remote control tunes to stations of good receptions by increasing/decreasing the frequency.

Selecting Frequency with Preset List

Listening the radio is available by selecting a station saved in preset list.

In FM or AM mode, press the preset list (specified by the dotted lines) where the desired station is saved or press [S/W] on steering wheel remote control to listen the desired station.

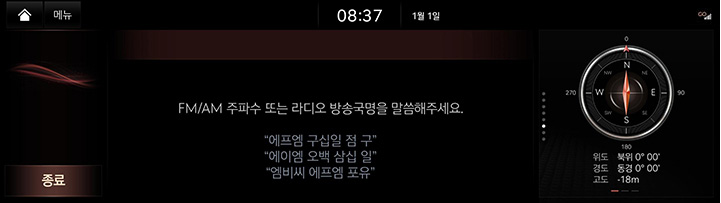

Selecting a Frequency with Voice Recognition

If you change the language displayed on the system to English, the voice recognition feature is not supported. Change the system language to 한국어. For more details, refer to the "Language".

  1. Press [P] in FM or AM mode.


  1. If you hear a beep after the voice guidance, speak the desired frequency.

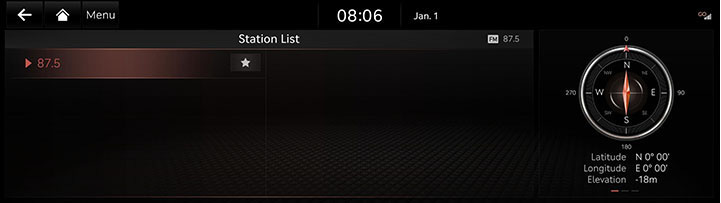

Viewing Station List

May play a desired station by searching the list.

  1. Press [Menu] > [Station List] on the screen.

The list is displayed on the screen.


  1. Select a desired station from the list screen.

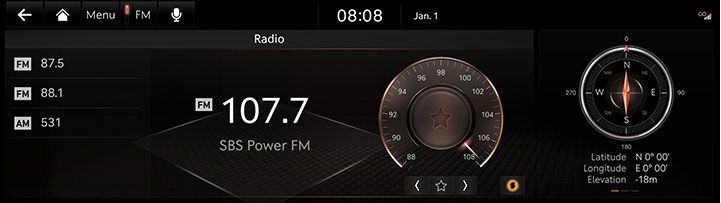

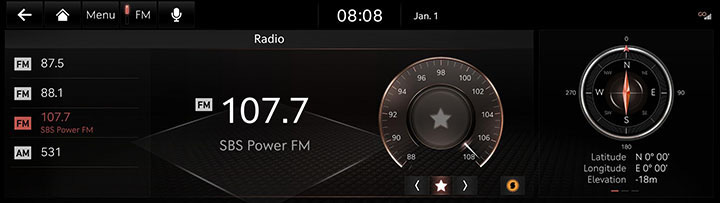

Saving Radio Frequency in Preset List

Saves the current frequency in a desired preset list.

  1. Select a frequency desired to save on frequency display screen.


  1. Press [Menu] > [Save Preset]. Saves the frequency in a desired preset list.


,Reference

Press [K] to save the desired frequency.

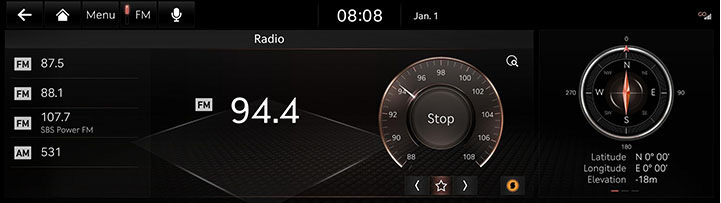

Scanning Radio Frequency

Each of frequencies of good receptions is received.

Press [Menu] > [Scan FM]/[Scan AM] in FM or AM mode.


,Reference

Pressing [Stop] during scanning on radio screen. the radio of the frequency selected when the scanning stopped is played.

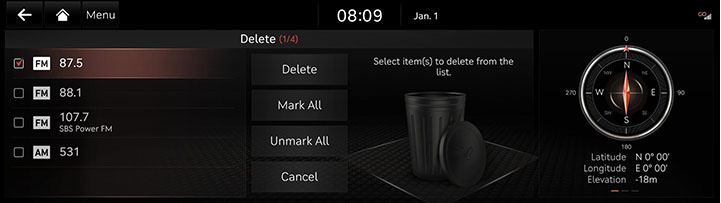

Deleting Presets

  1. Press [Menu] > [Delete Presets] in FM or AM mode.


  1. Select the desired item, Press [Delete] > [Yes].

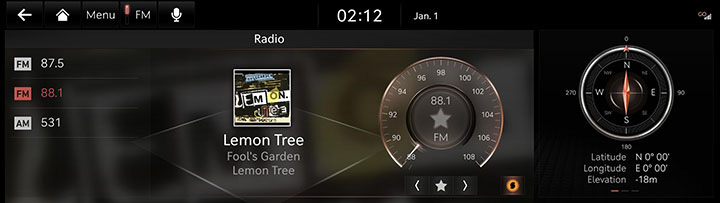

Sound Hound

Checks the information of currently playing music.

Press [E] in FM or AM mode or press [Menu] > [SoundHound].


,Reference

To use soundhound function, you need to subscribe to the Genesis Connected services. Contact customer center. (Connected center: 1899-5100)

SoundHound History

Checks the to music list that was recently viewed by the sound hound.

Press [Menu] > [SoundHound History] in FM or AM mode.

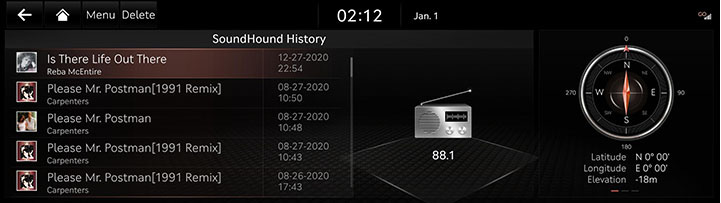

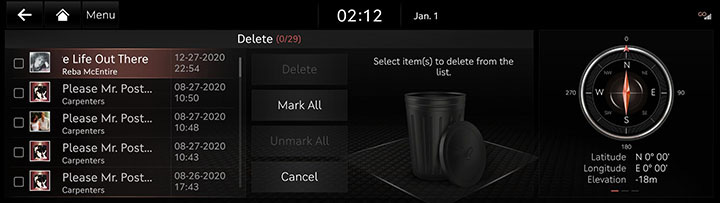

Deleting SoundHound History

  1. Press [Menu] > [SoundHound History] in the soundhound history screen.
  2. Press [Delete].


  1. Select the desired item, Press [Delete] > [Yes].

Sound Settings

  1. Press [Menu] > [Sound Settings] in FM or AM mode.
  2. For more details, refer to the "Sound Settings".
