Using Rear View Monitor (RVM)

About Rear View Monitor

• In this instrument, for the safety of the user, the rear view monitor that can secure the rear view during the backward driving is connected.
• After the vehicle is started, if the transmission lever is put to R, the rear view monitor is automatically turned on and the rear view monitor starts the operation.

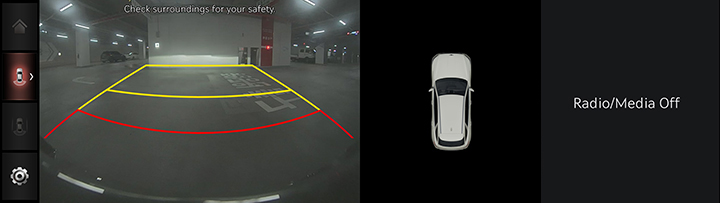

Turning on the Rear View Monitor

When the vehicle is started, put the transmission lever position to R.

Adjust the desired values for brightness or contrast as appropriate.

,Reference

The rear view monitor has an optical lens to secure wide view, so there is a little difference between the distance shown on the screen and the actual one. For safety, make sure to check the rear and left/right view by yourself.

About Rear view while driving

It is a device that can see the rear of the vehicle while driving through the rear camera mounted on the vehicle.

Operating the Rear view while driving

After turning on the engine, move the lever of the transmission to the N or D position, press Parking/View button to execute the driving support view.

,Reference

When the rear view while driving is activated, the rear view while driving is maintained regardless of the vehicle speed. Press the [HOME] or the AVN keyboard button to turn it off.
