Vehicle setting

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Move to vehicle setting screen

Press [Setup] > [Vehicle] on the home screen. Vehicle setting screen is displayed.

Drive Mode

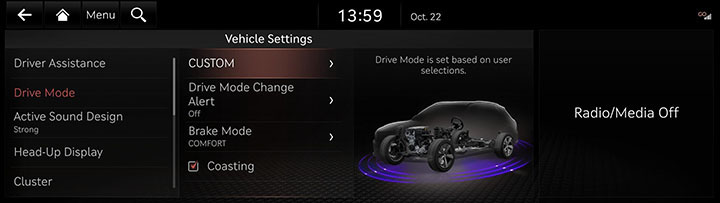

1. Press [Drive Mode] on the vehicle settings screen.

2. Press the desired item.

CUSTOM

Composes the optimal mode through combination of each system’s mode.

Powertrain

• [ECO]: Composes a mode optimized for economic driving.
• [Standard]: Composes a mode for comfortable driving.
• [SPORT]: Composes a mode for dynamic driving.

Steering

• [Standard]: Composes the soft steering wheel mode.
• [SPORT]: Composes the sporty steering wheel mode.

Suspension

• [Standard]: Composes a mode for balanced riding feel.
• [SPORT]: Composes a mode for dynamic driving.

AWD

• [ECO]: Composes a 4-wheel-drive mode optimized for economic driving.
• [Standard]: Composes a 4-wheel-drive mode optimized for stable driving.
• [SPORT]: Composes a 4-wheel-drive mode for dynamic driving.

Drive Mode Change Alert

It selects change information display method in case of drive mode change.

• [Detailed Alert]: Displays the detail information with the vehicle image when the drive mode is changed.
• [Simple Alert]: It displays the change information briefly at the top of the screen in case of drive mode change.
• [None]: Change information is not displayed on the screen in case of drive mode change.

Brake Mode

• [COMFROT]: Composes a mode for comfortable braking.
• [SPORT]: Composes a mode for dynamic braking.

Coasting

Engine is decoupled from transmission during vehicle coasting for better fuel economy in ECO drive modes.

Active sound design

You can set an engine sound mode.

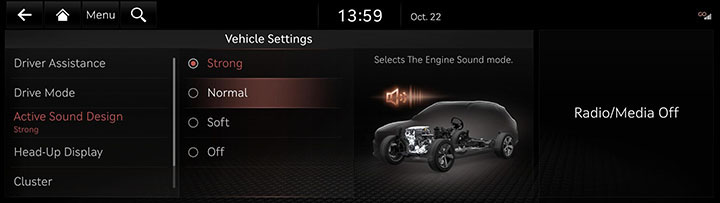

1. Press [Active sound design] on the vehicle settings screen.

2. Press the desired item.

Head-Up Display

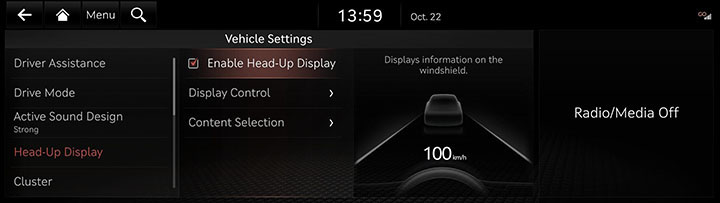

1. Press [Head-Up Display] on the vehicle settings screen.

2. Press the desired item.

Enable Head-Up Display

Setting to show the head-up display on the windshield is available.

Display Control

Controls the display height, rotation and brightness to desired values.

Content Selection

Sets the display for [Turn by Turn], [Traffic Info], [Driving Convenience Info], [Blind-Spot Safety Info] , [Radio/Media Info] and [Speedometer].

Cluster

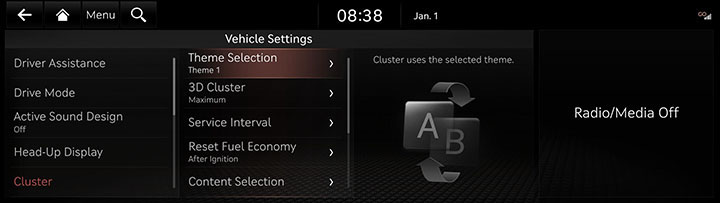

1. Press [Cluster] on the vehicle settings screen.

2. Press the desired item.

Theme Selection

Cluster theme is selected by the driver. Select [Theme 1]/[Theme 2]/[Theme 3].

• [Link to Drive Mode]: Cluster theme is automatically selected based on drive mode.

3D Cluster Depth

Enables 3D effects for the cluster. Select [Maximum]/[Normal]/[Off].

Service Interval

Check on [Enable Service Interval] to set the service inspection period. When the period is reached, the alert is made.

• [Distance]: Set service time notice distance to (Km).
• [Duration]: Set service time notice period to (days).
• [Reset]: It initializes service time.

Reset Fuel Economy

Selects when to reset the average fuel economy gauge. Selects [After Ignition]/[After Refueling].

Content Selection

Select information to display on cluster.

• [Gear Position Pop-up]: It tells changed gear level when gear is changed with popup.
• [Wiper/Lights Display]: It displays the operation mode when wiper/light lever is operated.
• [Traffic Signs]: It displays road information such as speed bump, speed limit, etc.
• [Icy Road Warning]: It tells the possibility of road freezing if outside temperature is about 4℃ (39°F) or less.

Engine Oil Change Interval

Alerts when it's time to change the engine.

Welcome Sound

Provides an audible tone when the cluster turns on or off.

Speedometer Subscale

Display of a secondary speedometer scale underneath the primary scale.

,Reference

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier. If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.

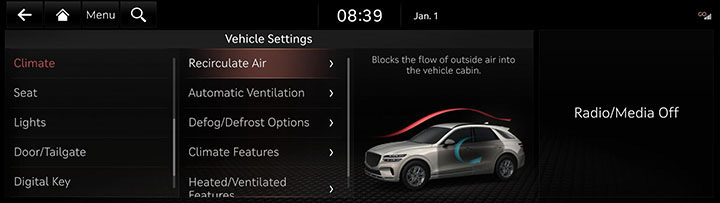

Climate

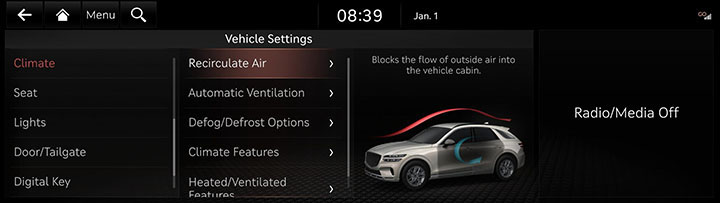

1. Press [Climate] on the vehicle settings screen.

2. Press the desired item.

Recirculate Air

Blocks the flow of outside air into the vehicle cabin.

• [Activate upon Washer Fluid Use]: Automatically prevents the washer fluid scent from entering the cabin. At low temperatures, this feature may be limited to prevent the windshield from fogging.
• [Recirculation Mode Plus]: Uses navigation information to prevent unpleasant gases and odors from entering the vehicle at known locations.

Automatic Ventilation

Switches the ventilation system to Fresh Air mode automatically after an extended use of Recirculate Air.

• [Auto Dehumidify]: Automatically switches to fresh air ventilation to decrease humidity after an extended use of air recirculation.
• [Scheduled Ventilation]: When the key off, the cabin is ventilated prior to boarding to reduce the temperature inside the vehicle.

Defog/Defrost Options

Directs air to the windshield to reduce moisture on the windshield glass.

• [Air Conditioner Automatic Drying]: After the car turned off, turn on the fan to dry the inside of the air conditioner.
• [Defog/Defrost]: Sets the DEF button so that it increases fan speed, switches to Fresh Air, activates A/C, and directs air to the windshield to clear it.
• [Auto Defog]: Automatically activates various defog functions based on the level of humidity in the vehilce cabin.

Climate Features

Activates the convenience functions for climate control.

• [Indirect Ventilation]: Cools the cabin using a three-dimensional, diffuse air flow.
• [Lock Rear Climate Controls]: Disables the rear seat passengers climate controls.
• [Climate Touchscreen Haptic]: Adjusts the haptic intensity when pressing the climate touch screen. Select [Strong]/[Medium]/[Light]/[Off].

Seat

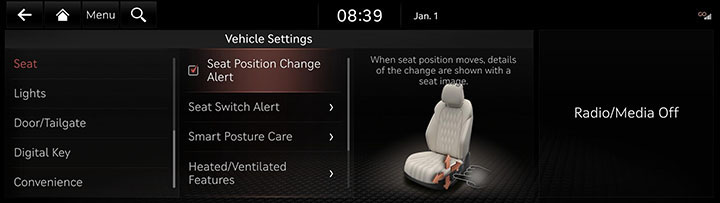

1. Press [Seat] on the vehicle settings screen.

2. Press the desired item.

Seat Position Change Alert

When the seat position changes, the change information is displayed on the seat image.

Seat Switch Alert

Details of the seat switch control and position change are shown with a seat image.

• [Switch Touch Alert]: Seat information is displayed when the switch is touched.
• [Switch Control Alert]: Seat movement information is displayed when the switch is moved.

Smart Posture Care

The smart posture care suggests driving postures based on body type and displays the results of clinical testing on the back.

• [Enter driver's information]: Check height, sitting height and weight and check "posture analysis" or "recommended posture movement" to check the recommendation posture of each body type, and the results of the waist condition clinical test.
• [Save current position]: Select [Settings 1] or [Settings 2].

Heated/Ventilated Features

• [Auto. Controls That Use Climate control Settings]
• [Steering Wheel Warmer]: Automatically controls the steering wheel heater according to the external/internal temperatures and the set temperature.
• [Seat Warmer/Ventilation]: Automatically controls the seat heater/ventilation according to the exterior/internal temperatures and the set temperature.
• [Seat Heater Balance]: When the driver seat/passenger seat heater is activated, lower settings (including Off) can be selected for either the seat back or the seat cushion.

Seating Easy Access

• [Driver Seat Easy Access]: Selects the distance the seat automatically moves when the driver enters/exits the vehicle. Select [Extended]/[Normal]/[Off].
• [Passenger Seat Easy Access]: Moves the passenger seat when the passenger enters/exits the vehicle.
• [Steering Wheel Easy Access]: Moves the steering wheel when the driver enters/exits the vehicle.

Ergo-Motion Seat

• [Comfortable Stretch]: Sets the comfortable stretch. Select [Strong]/[Normal].
• [Operational Time]: Select the operational time of comfortable stretch. Select [Long(20min)]/[Short(10min)]/[Normal(15min)].
• [Alertness Assist]: Prevents the drowsy using the ergomotion seat. Recommend to experience it before driving.
• [Operational Time]: Select the operational time of comfortable stretch. Select [Long(20s)]/[Short(10s)].
• [Smart Posture Assist]: Provides a personalized massage while driving to reduce pain and pressure in the back's lumbar region.
• [Smart Support]: Adjust seat side support according to drive mode and speed.

Lights

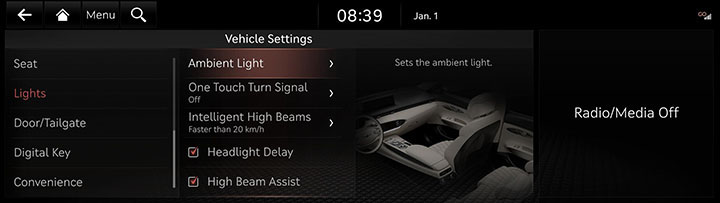

1. Press [Lights] on the vehicle settings screen.

2. Press the desired item.

Ambient Light

Select [Brightness]/[Color] for setting the interior mood lighting.

• [Dimmed While Driving]: Dimmed during night-time driving conditions.
• [Link to Speed Alert]: When a speed violation alert is provided by the navigation system, the ambient light turns red and flashes as an added warning.
• The ambient light can be adjusted up to 10 levels. When 0 level, the light is off.

One Touch Turn Signal

Select the number of blinks of turn signal by touching the turn signal lever. Select [7 flashes]/[5 flashes]/[3 flashes]/[Off].

Intelligent High Beams

Select the vehicle speed at which the feature activates, or set to disable the feature. Select [Faster than 60 km/h]/[Faster than 40 km/h]/[Faster than 20 km/h]/[Off].

Headlight Delay

When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.

High Beam Assist

Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

Door/Tailgate

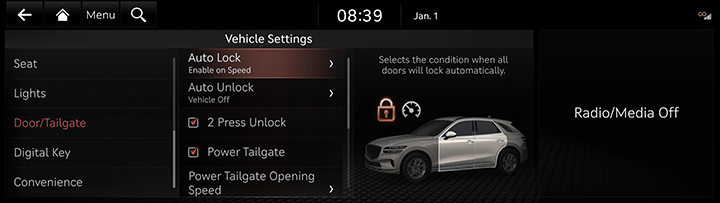

1. Press [Door/Tailgate] on the vehicle settings screen.

2. Press the desired item.

Auto Lock

Select the timing for automatic locking all doors. Select [Enable on Speed]/[Enable on Shift]/[Off].

Auto Unlock

Select the timing for automatic unlocking all doors. Select [On Shift to P]/[Vehicle Off]/[Off].

2 Press Unlock

Unlocks all doors when the unlock button is pressed twice. (Press once to unlock driver door only)

Power Tailgate

The power tailgate button can be used to automatically open/close the tailgate.

Power Tailgate Opening Speed

Selects the speed the power tailgate automatically moves. Selects [Fast]/[Slow].

Power Tailgate Opening Height

Selects the maximum height of the power tailgate. Selects [Full Open]/[Level 3]/[Level 2]/[Level 1]/[User Height Setting].

Smart Tailgate

Opens the tailgate automatically when approaching the tailgate with the smart key.

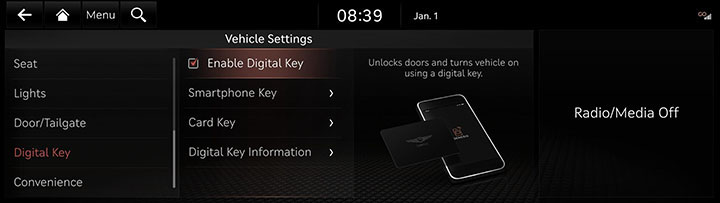

Digital Key

1. Press [Digital Key] on the vehicle settings screen.

2. Press the desired item.

• [Enable Digital Key]: Unlocks doors and turn vehicle on using a digital key.
• [Smartphone Key]/[Card Key]: Saves or deletes smartphone key or card key.
• [Digital Key Information]: Shows the serial number of the digital key.

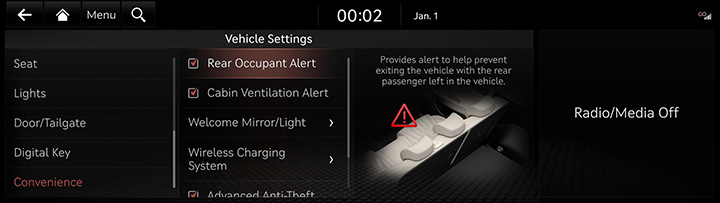

Convenience

1. Press [Convenience] on the vehicle settings screen.

2. Press the desired item.

Rear Occupant Alert

Provides an alert to the driver that passengers are in the rear seat of the vehicle.

Cabin Ventilation Alert

Provide alert to help checking the cabin temperature when the driver stays for one hour in a parked vehicle.

Welcome Mirror/Light

Enables/disables the auto-fold outside mirrors and welcome light.

• [Enable on Door Unlock]: The welcome feature is enabled when the doors are unlocked.
• [Enable on Driver Approach]: The welcome feature is enabled when a driver with a smart key is nearby.

Wireless Charging System

Enables the wireless charging pad to be used with compatible devices. select [Front]/[Rear].

Advanced Anti-Theft

Provides an alert when movement is detected in the passenger compartment after the vehicle is locked.

Auto Rear Wiper (in R)

Activates the rear windshield wiper automatically when the front wiper is on and the gear is in reverse.
