Surround View Monitor (SVM) - Option
About SVM
- SVM is an option that is provided to the customers who selected the option.
- While vehicle is started, if gear is put to R position, it automatically starts SVM
- If gear is changed from R to P position, SVM operation stops.
Operating Front SVM
After starting the vehicle, if you press Parking/View button after putting gear to N or D position, front SVM starts.
|
|
1
(Top view of the Front)
Displays the top view of the front screen of the vehicle magnified.
2
(Front Wide View)
Only front screen of the vehicle is displayed.
3
(Front Side View)
It displays left front/right front screen of the vehicle simultaneously.
4
(Rear view while driving)
Displays the rear screen of the vehicle and the top view.
5
(3D surround view)
Displays 3D screen around the vehicle.
6
Move to the camera settings menu.
7Front Screen
It displays front view.
8 Top View
It displays combined image for each directions (left, right, front, rear) of side mirror camera.
|
,Reference |
|
While front SVM is running, if you drive at about 15km/h or more, SVM is turned off. At this state, even if you drive at about 15km/h or less, SVM is remained at off state. |
Operating rear SVM
After starting the vehicle, if gear is put to R position, rear SVM starts.
|
|
1
(Top view of the Rear)
Displays the top view of the rear of the vehicle screen magnified.
2
(Rear Wide View)
It displays only the rear screen of the vehicle.
3
(Rear Side View)
It displays left rear/right rear screen of the vehicle simultaneously.
4
(Rear view while driving)
Displays the rear screen of the vehicle and the top view.
5
(3D surround view)
Displays 3D screen around the vehicle.
6
Move to the camera settings menu.
7Rear Screen
It displays rear view.
8 Top View
It displays combined image for each directions (left, right, front, rear) of side mirror camera.
|
,Reference |
|
SVM camera has an optical lens to secure wide view, so there is a little difference between the distance shown on the screen and the actual one. For safety, make sure to check the rear and left/right view by yourself. |
Operating Rear view while driving
After starting the vehicle, if the speed of vehicle is more 15 km/h and then press Parking/View button, Rear view while driving starts.
|
|
1
(Rear view while driving)
Displays only the rear view of the vehicle in wide view.
2
(Rear view while driving)
It displays the rear screen of the vehicle on the left screen, and it displays combined image for each directions (left, right, front, rear) of side mirror camera on the right screen.

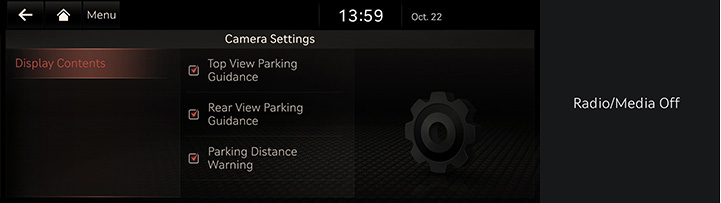

Camera Settings
- If you press [
], it moves to the camera settings screen.
|
|
- Press the desired item.
- [Display Contents]: Sets top view parking guidance, rear view parking guidance and parking distance warning.
Warning Display
|
|
Driver’s Door Open Indicator
When the driver’s door is open, “
” (red color on left door) indicator is displayed on the top left of the screen.
Front Passenger’s Door Open Indicator
When the front passenger’s door is open, “
” (red color on right door) indicator is displayed on the top left of the screen.
Tailgate Open Indicator
When the tailgate is open, “
” (red color on the tailgate) indicator is displayed on the top left of the screen.
Side Mirror Folding Indicator
When the side mirror is folded, “
” (side mirror) indicator is displayed on the top left of the screen.
