Surround View Monitor (SVM) - Option

About SVM

• SVM is an option that is provided to the customers who selected the option.
• While vehicle is started, if gear is put to R position, it automatically starts SVM.
• If gear is changed from R to P position, SVM operation stops.

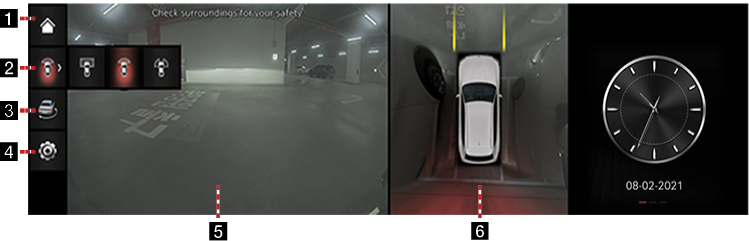

Operating Front SVM

After starting the vehicle, if you press Parking/View button after putting gear to N or D position, front SVM starts.

1 Home

Moves to the home screen.

2 Top view of the front

Displays the top view of the front screen of the vehicle magnified.

Front wide view

Only front screen of the vehicle is displayed.

Front side view

It displays left front/right front screen of the vehicle simultaneously.

3 3D surround view

Displays 3D screen around the vehicle.

4 a

Move to the camera settings menu.

5Front screen

It displays front view.

6 Top view

It displays combined image for each directions (left, right, front, rear) of side mirror camera.

,NOTE

While front SVM is running, if you drive at about 15km/h or more, SVM is turned off. At this state, even if you drive at about 15km/h or less, SVM is remained at OFF state.

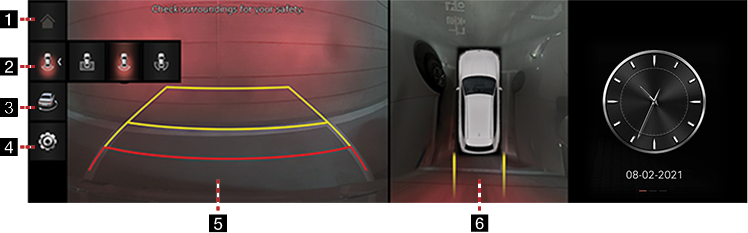

Operating rear SVM

After starting the vehicle, if gear is put to R position, rear SVM starts.

1 Home

Moves to the home screen.

2 Top view of the rear

Displays the top view of the rear of the vehicle screen magnified.

Rear wide view

It displays only the rear screen of the vehicle.

Rear side view

It displays left rear / right rear screen of the vehicle simultaneously.

3 3D surround view

Displays 3D screen around the vehicle.

4 a

Move to the camera settings menu.

5Rear screen

It displays rear view.

6 Top view

It displays combined image for each directions (left, right, front, rear) of side mirror camera.

,NOTE

SVM camera has an optical lens to secure wide view, so there is a little difference between the distance shown on the screen and the actual one. For safety, make sure to check the rear and left/right by yourself.

Warning Display

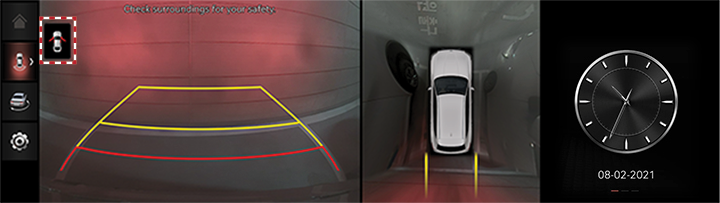

Driver’s door open indicator

When the driver’s door is open, “” (red color on left door) indicator is displayed on the top left of the screen.

Front passenger’s door open indicator

When the front passenger’s door is open, “” (red color on right door) indicator is displayed on the top left of the screen.

Trunk open indicator

When trunk is open, “” (red color on trunk) indicator is displayed on the top left of the screen.

Side mirror folding indicator

When the side mirror is folded, “” (side mirror) indicator is displayed on the top left of the screen.
