Display settings

The images displayed on this system may differ from actual ones.

Press [Setup] > [Display] on the home screen. Display settings screen is displayed.

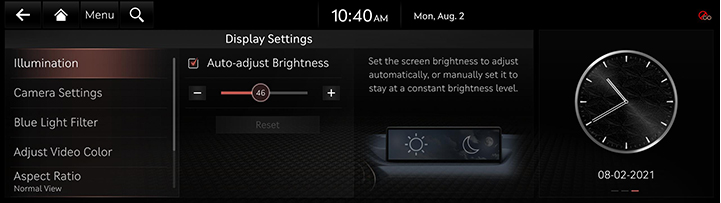

illumination

Sets screen brightness mode.

1. On the display settings screen, press [Illumination].

2. Select the desired options.

• [Auto-adjust Brightness]: Set the screen brightness to adjust automatically, or manually set it to stay at a constant brightness level.
• [-]/[+]: Press to adjusts the brightness manually.
• [Reset]: Press to reset the illumination settings.

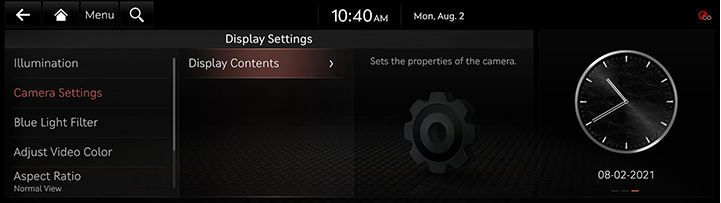

Camera Settings

Sets the properties of the camera.

1. On the display settings screen, press [Camera Settings] > [Display Contents].
2. Select the desired options.

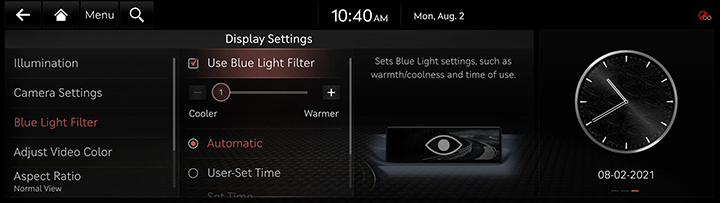

Blue Light Filter

Reduces eye strain by limiting the amount of blue light emitted when outside brightness is low.

1. On the display settings screen, press [Blue Light Filter].

2. Press the desired item.

• [Use Blue Light Filter]: Sets Blue Light settings, such as warmth/coolness and time of use.
• [Automatic]: Reduces eye strain by activating the Blue Light Filter automatically based on surrounding brightness.
• [User-Set Time]: Reduces eye strain by activating the Blue Light Filter according to the time set by the user.

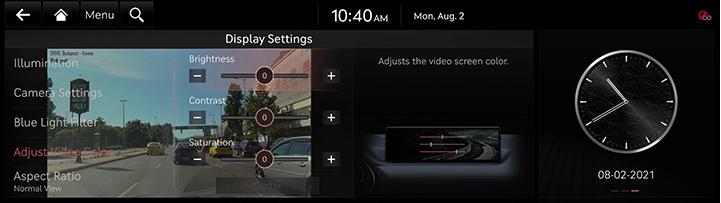

Adjust Video Color

During video playing, you can set brightness, contrast and saturation.

1. During video playing, press [Adjust Video Color] on the display settings screen.

2. Adjust the desired items.

,NOTE

Press [Center] to reset display settings.

Aspect Ratio

You can select the desired size video screen to enjoy video with sense of realism.

1. On the display settings screen, press [Aspect Ratio].

2. Press desired mode.

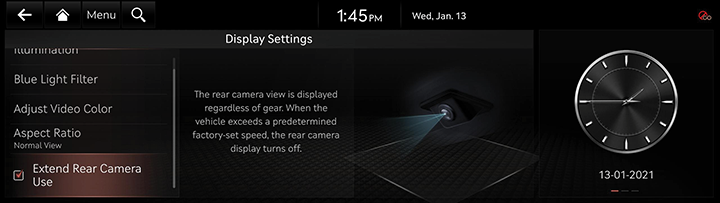

Extend Rear Camera Use (If equipped)

Keeps the rear camera screen even if reverse released. When exceeding a certain speed, rear camera screen will be closed.

1. On the display settings screen, press [Extend Rear Camera Use].

2. Turn [Extend Rear Camera Use] on or off.

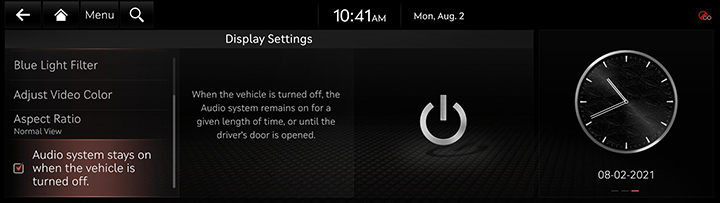

Audio System Setting

When the vehicle is turned off, the audio system remains in fir a given length of time, or until the driver's door in opened.

Check or uncheck [Audio system stays on when the vehicle is turned off.] on the display settings screen.
