Playing USB

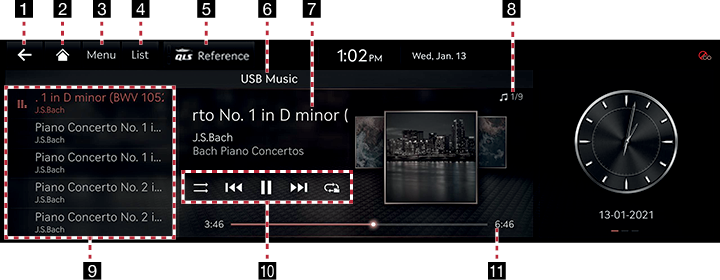

USB Music Screen Composition

1 a

Moves to home screen or the previous screen.

2 B

Moves to home screen.

3 Menu

Displays pop-up menu of each mode.

4 List

Moves to list screen.

5 QLS (Quantum Logic Surround)

Shows sound modes.

6 Mode display

Shows the mode currently in play.

7 Played file information

Shows the artist, song title and the album title.

8 File index

Shows the entire number of files.

9 Play list

Displays the play list.

10 Random

Activates/clears random play.

Control panel

Controls play, pause and search.

Repeat

Activates repeat.

11 Play time

Shows the play time information.

Playing USB Music

Connect a USB memory to USB connection terminal.

,NOTE

To play USB music while the other media is in play, press [MEDIA] button on the head unit > [Menu] > [Media Sources] > [USB Music].

Pause/Play

Pause/play a file.

Location	Details
Front screen	Touch [M] during play. Touch [d] during pause.
Controller	Press controller during play. Press controller during pause.

Play Previous/Next Music

Plays the previous/next music.

Location	Details
Front screen	Touch [C/V].

Forward/Reverse Search

Rapidly searches the file in play.

Location	Details
Front screen	After touching on [C/V] for a long time and release the finger at the desired spot, the music starts from that spot.

,NOTE

When pressing [C/V] for 5 seconds or longer, the play speed changes as 4X > 20X.
No audio is on during forward/reverse searching.

Search Previous/Next Music

Plays the previous/next music.

During searching, the file name is highlighted. When the desired file name is displayed, press [TUNE] and controller on the front seat control key to play the file.

Location	Details
Front seat control key	Rotate [TUNE] button to up/down. And when the desired music is displayed press the button.
Controller	Rotate controller to left/right. And when the desired music is displayed Press controller.

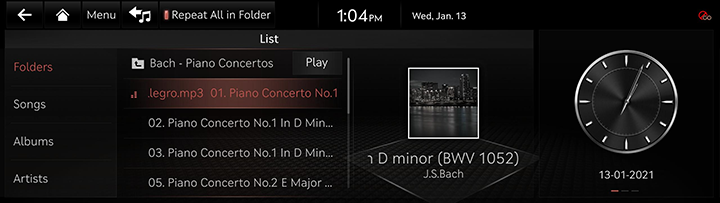

Viewing List

May play a desired file by searching the list.

Press [List] on the playing screen. Or press [Menu] > [List].

In list screen, search a desired file by folder, song or album, artist or recently added.

When the desired file found from the search is selected, the file plays.

,NOTE

If you press [Play] on the list screen, plays from the first file within the selected folder.

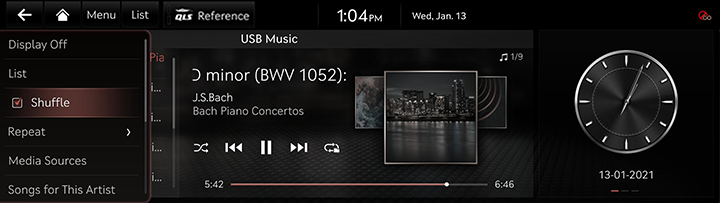

Shuffle Play

Play the entire files in a random order.

Press [Menu] > [Shuffle] on the playing screen.

Check on the box left to [Shuffle] to set random play.

To cancel the random play, press [Shuffle] again.

,NOTE

Selecting [q/r] on the front screen activates/clears shuffle play.

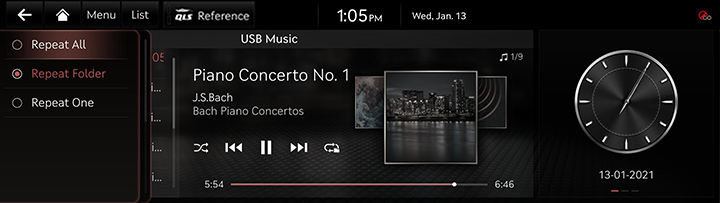

Repeat

A file plays repeatedly.

Press [Menu] > [Repeat] on the playing screen.

Press a desired repeat mode.

[Repeat All]: Repeats all files.
[Repeat Folder]: The entire files saved in the folder play repeatedly. Displayed as [Repeat Album] or [Repeat Artist] during playback from the [Albums] or [Artists] category.
[Repeat One]: The file currently in play is repeated.

,NOTE

Selecting [k]/[m]/[l]/[n] on the front screen also activates repeat.

k:Repeat all
m:Repeat album/artist (It is displayed when all files repeat during playback from the [Albums] or [Artists] category.)
l:Repeat folder
n:Repeat one

Hide Current File

Moves the music currently in play to Hidden_Folder.

The moved music is not shown in play list and not available for play.

Press [Menu] > [Hide Current File] on the playing screen.

Press [Yes].

songs for This Artist

Moves the artist list of the current song.

Press [Menu] > [Songs for This Artist].

,NOTE

You can go to the list by pressing artist on the playing screen.

songs for This Album

Moves the album list of the current song.

Press [Menu] > [Songs for This Album].

,NOTE

You can go to the list by pressing album art or pressing album name on the playing screen.

Sound settings

Press [Menu] > [Sound Settings] on the playing screen.
For more details, refer to the "Sound settings".

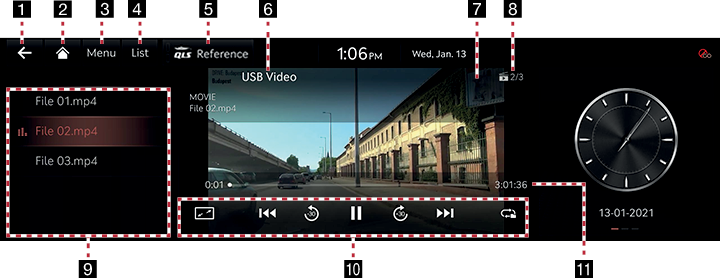

USB Video Screen Composition

1 a

Moves to home screen or the previous screen.

2 B

Moves to home screen.

3 Menu

Displays pop-up menu of each mode.

4 List

Moves to list screen.

5 QLS (Quantum Logic Surround)

Shows sound modes.

6 Mode display

Shows the mode currently in play.

7Video display

Shows the video currently being played.

8 File index

Shows the entire number of files.

9 Play list

Displays the play list.

10 Full screen

Video is played on the entire screen.

Control panel

Controls play, pause, search and 30 seconds before/after.

Repeat

Activates repeat.

11 Play Time

Shows the play time information.

Playing USB Video

Connect a USB memory to USB connection terminal.

,NOTE

To play USB video while the other media is in play, press [MEDIA] button on the head unit > [Menu] > [Media Sources] > [USB Video].
For the safety, the video is not supported and other partial features are restricted while the vehicle is in driving condition. However, the audio is played.
Even when the vehicle stops, if the gear is not in P position, the video is not supported.

Pause/Play

Pause/Play a file.

Location	Details
Front screen	Touch [M] during play. Touch [d] during pause.
Controller	Press controller during play. Press controller during pause.

Switching USB Display Screen (Basic Mode Screen/Entire Screen)

Location	Details
Front screen	Touch the screen.
Controller	When controller is dragged to up or down or pressed on the entire screen, basic mode screen opens.

,NOTE

When no control within 5 seconds on basic mode screen, it automatically switches to the entire screen.
The entire screen opens by selecting [O] or [Menu] on the basic mode screen and selecting [Full Screen] as well.

Play Previous/Next File

Plays the previous/next music.

Location	Details
Front screen	Touch [C/V].

Forward/Reverse Search

Rapidly searches the file in play.

Location	Details
Front screen	After touching on [C/V] for a long time and release the finger at the desired spot, the music starts from that spot.

,NOTE

When pressing [C/V] for 5 seconds or longer, the play speed changes as 4X > 20X.
No audio is on during forward/reverse searching.

Searching Previous/Next File

Plays the previous/next music.

During searching, the file is highlighted. When the desired file name is displayed, press [TUNE] button and controller on the front seat control key to play the file.

Location	Details
Front seat control key	Rotate [TUNE] button to up/down. And when the desired music is displayed press the button.

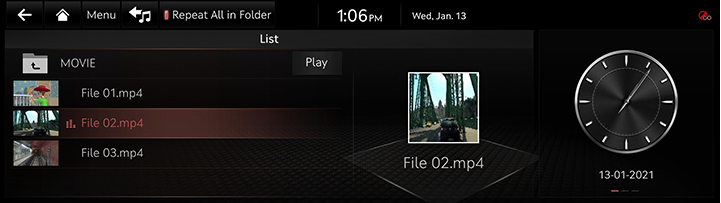

Viewing List

May play a desired file by searching the list.

Press [List] on the playing screen. Or press [Menu] > [List].

Selecting a desired file in list screen starts playing the file.

,NOTE

If you press [Play] on the list screen, plays from the first file within the selected folder.

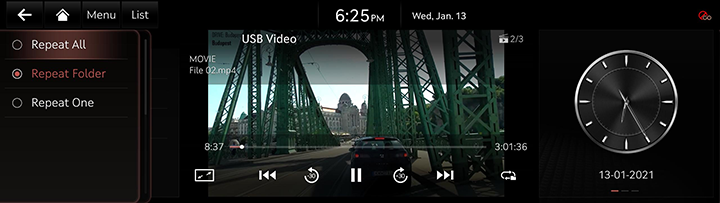

Repeat

A file plays repeatedly.

Press [Menu] > [Repeat] on the playing screen.

Press a desired repeat mode.

[Repeat All]: The entire files play repeatedly.
[Repeat Folder]: The entire files saved in the folder play repeatedly.
[Repeat One]: The file currently in play is repeated.

,NOTE

Selecting [k]/[l]/[n] on the front screen also activates repeat.

k: Repeat all
l: Repeat folder
n: Repeat one

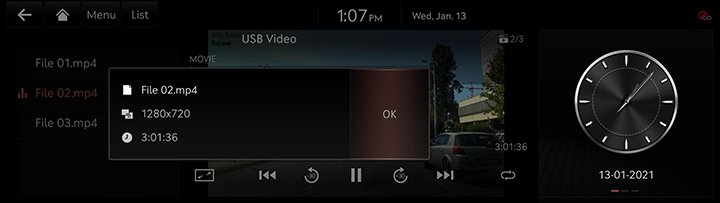

File Information

Shows the information on the name, size and play time of the file currently in play.

Press [Menu] > [File Information] on the playing screen.

Press [OK].

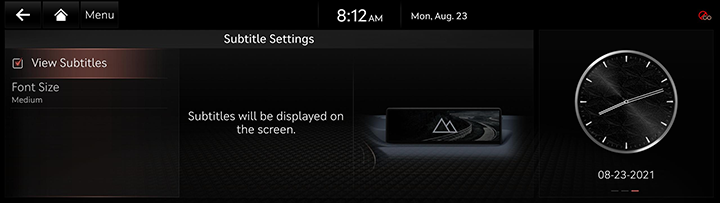

Subtitle settings

Available to use for a file supporting multiple-subtitles.

Selects the subtitle displayed on the screen.

Press [Menu] > [Subtitle Settings] on the playing screen.

Set the desired option.

[View Subtitles]: Activates/clears the subtitle display.
[Font Size]: Sets the font size for the subtitle displayed on the screen.

Display settings

Adjusts brightness/contrast/saturation for video play.

Press [Menu] > [Display Settings] on the playing screen.
For more details, refer to the "Display settings".

Sound settings

Press [Menu] > [Sound settings] on the playing screen.
For more details, refer to the "Sound settings".

Voice Settings

Available to use for a file supporting multiple voices.

Press [Menu] > [Voice Settings] on the playing screen.
Select a desired voice.
