Name and Function of each Component

Head Unit

The image of this product may be different from the actual product.

1 MAP button

• Moves to the map screen showing the current position of vehicle.
• When the destination is set, the voice navigation starts on the map screen.

2 NAV button

• Moves to navigation menu.
• Press and hold to move to the destination search screen.

3 K (Custom) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

4 RADIO button

• Activates radio mode.
• Each button press changes the mode in sequence of FM > AM > SXM > FM.

5 MEDIA button

• Press this button to switch between the media selection screen and media play screen.
• Press and hold to move to the media selection screen.

6SETUP button

• Moves to settings screen.
• Press and hold to move to the general settings screen.

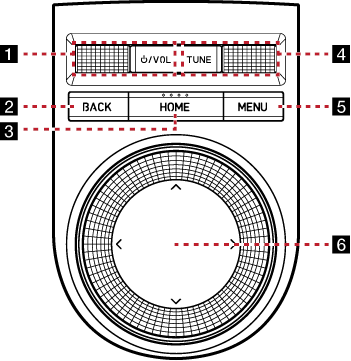

FRONT SEAT CONTROL KEYS

The image of this product may be different from the actual product.

1 :/VOL wheel button

• Press briefly to turn AV on/off.
• Press and hold to turn on or off the display and AV.
• Turn the wheel up/down to adjust the volume.

2 BACK button

• Press briefly to move to the previous screen.
• Press and hold to go to the home screen.

3 HOME button

• Press briefly to go to the home screen.
• Press and hold to go to the map screen.

4TUNE wheel button

• Radio mode: Turning the wheel up/down to increases/decreases the frequency by one step. (FM: 0.2MHz, AM: 10KHz)
• SXM mode: Turning the wheel up/down to increases/decreases the channel by one step.
• USB Music/USB Video/Sounds of Nature/Voice Memo/Bluetooth Audio mode: Search for a file by turning the wheel up/down. And, when the name of desired file is displayed, press the button to play the file.
• Navigation: Turn up/down to change the map scale on the map screen.

5 MENU button

• Displays a pop-up menu for each mode when pressed briefly.
• Press and hold to turn on or off the split screen on the map.

6 Controller

• Use controller to move and select the menu.
• Rotate the controller to change the map scale on the map screen.

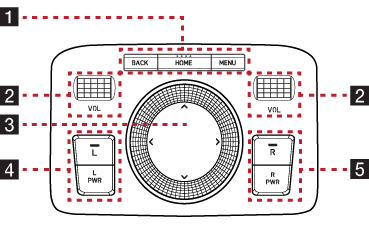

RRC (Rear Remote Control) - Option

The image of this product may be different from the actual product.

1 BACK button

• Press briefly to move to the previous screen.
• Press and hold to go to the home screen.

HOME button

• Press briefly to go to the home screen.
• Press and hold to go to the map screen.

MENU button

• Displays a pop-up menu for each mode when pressed briefly.
• Press and hold to turn on or off the split screen on the map.

2 VOL wheel button

• Turns the wheel up/down to adjust the volume.
• Press the wheel to turn mute on/off.

3 Controller

Use controller to move and select the menu.

4 L button

Press to use the rear remote control only for left monitor of rear seat.

L PWR button

• Press to turn the left monitor of rear seat on/off.
• Press and hold to turn AV on/off.

5 R button

Press to use the rear remote control only for right monitor of rear seat.

R PWR button

• Press to turn the right monitor of rear seat on/off.
• Press and hold to turn AV on/off.

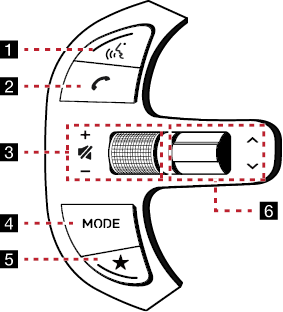

Steering wheel remote control

The image of this product may be different from the actual product.

1 i (Voice Recognition) button

• When it is pressed shortly
• Activates voice recognition mode.
• When it is pressed and held
• Activates voice recognition mode of the connected phone projection device.
• Cancels voice recognition when the voice recognition is activated.

2 W (Bluetooth Call) button

When it is pressed shortly

• Searches new Bluetooth phone or connects the registered phone if Bluetooth is not connected.
• If Bluetooth is connected,
• If selected in the call waiting screen, displays call history screen.
• If selected in call history screen, makes a call to last called number.
• If selected in phone dial screen, enters the last call number.
• If selected in phone reception alert screen, answers the phone call.
• If selected in calling, ends the call.

When it is pressed and held

• When Bluetooth is connected, if selected in Bluetooth hand free waiting mode, redials.
• If selected in calling, ends the call.

3 J / I button

Turn the wheel up/down to adjust the volume.

f (MUTE) button

Press the wheel to turn mute on/off.

4MODE button

• When it is pressed shortly
• Selects a mode from Bluetooth Audio, FM, AM, SXM, USB Music, USB Video, Phone Projection or Sounds of Nature.
• When it is pressed and held
• Moves to the mode button (steering wheel) settings screen.

5 L (Custom) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

6 S/W button

• When it is pressed shortly
• In FM/AM/SXM, selects a radio station or channel saved in the preset.
• In media mode, searches track, file or chapter.
• When it is pressed and held
• In FM/AM mode, broadcasting are automatically searched.
• In SXM mode, moves up/down channels until the button is released.
• While USB mode activated, rewinds or fast forwards the file.
