Vehicle settings

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Press [Setup] > [Vehicle] on the home screen. Vehicle settings screen is displayed.

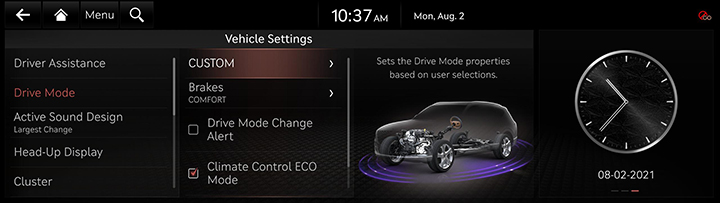

Drive Mode

[CUSTOM]: Sets the Drive Mode properties based on user selections.
[Brakes]: Selects the brake feel and responsiveness.
[Drive Mode Change Alert]: Shows details of the drive mode change and a vehicle image highlighting the area involved.
[Climate Control ECO Mode]: Increases range of travel by reducing cooling and heating power of the climate control.
[Coasting]: Decouples transmission from the engine while coasting for better fuel economy in ECO drive mode.

You can set an engine sound mode.

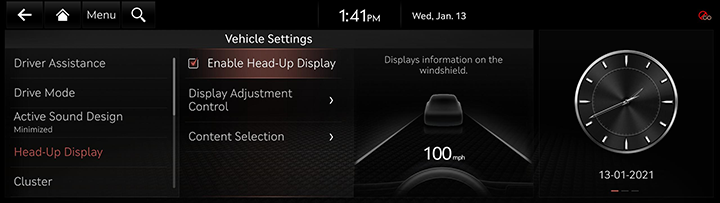

[Enable Head-Up Display]: Displays information on the windshield.
[Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
[Content Selection]: Sets the items to apply [Head-Up Display]. Check the box of the desired items.

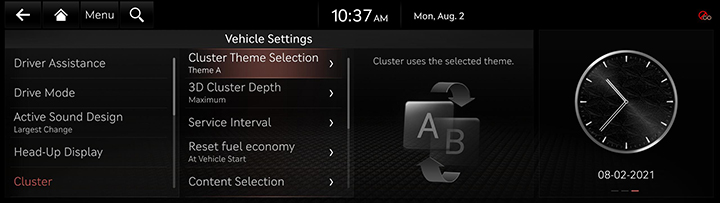

[Cluster Theme Selection]: Cluster uses the selected theme.
[3D Cluster Depth]: Enables 3D effects for the cluster.
[Service Interval]: Displays an alert when a scheduled service interval is reached.
[Reset fuel economy]: Selects when to reset the average fuel economy gauge.
[Content Selection]: Selects contents to be shown on the cluster display.
[Cluster Voice Volume]: Adjusts the cluster voice volume level.
[Oil Change Reminder]: Displays remaining life of engine oil. Reset manually after oil change. Check the oil level separately.
[Welcome Sound]: Provides an audible tone when the cluster turns On or Off.
[Speedometer Subscale]: Displays the secondary speedometer scale underneath the primary scale.

,NOTE

An alarm in the vehicle and guidance sound are generated from external amplifier.
If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.

[Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
[Automatic Ventilation]: Automatically switches the ventilation system to the Fresh Air mode after an extended use of Recirculated Air.
[Defog/Defrost Options]: Sets the function used to reduce moisture on the windshield glass.
[Climate Features]: Activates the convenience functions for climate control.
[Warmer/Ventilation Features]: Activates the Warmer/Ventilation Convenience functions.

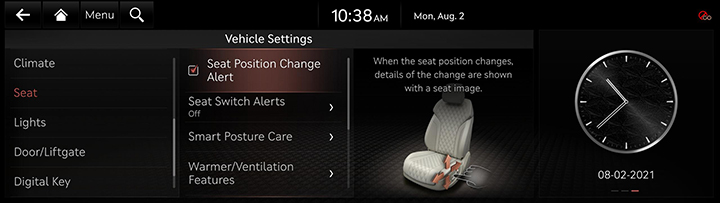

[Seat Position Change Alert]: When seat position changes, details of the change are shown with a seat image.
[Seat Switch Alerts]: Shows seat switch function after pressing the control, and seat position changes using images.
[Smart Posture Care]: Recommeds a posture fitting the driver's body type and provides a clinical analysis for back health.
[Warmer/Ventilation Features]: Activates the Warmer/Ventilation Convenience functions.
[Seating Easy Access]: Moves the steering wheel/seats to provide easier exit/entry for the driver and vehicle passengers.
[Ergo-Motion Seat (Driver)]/[Ergo-Motion Seat (Passenger)]: Helps reduce fatigue and supports driver comfort using seat-based posture movements/changes.

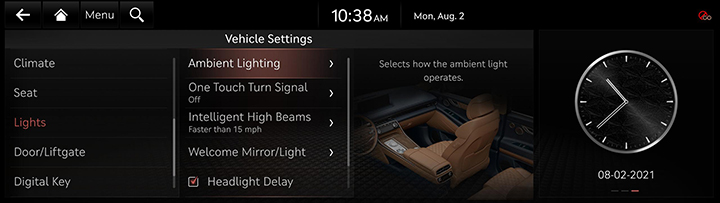

[Ambient Lighting]: Sets the interior mood lighting.
[One Touch Turn Signal]: Select the number of blinks of turn signal by touching the turn signal lever is moved slightly.
[Intelligent High Beams]: Select the vehicle speed at which the feature activates, or set to disable the feature.
[Welcome Mirror/Light]: Selects the condition when the outside mirrors will unfold and the door handle light will turn on automatically.
[Headlight Delay]: When the ignition is turned [OFF], the exterior lights turn off after approximately 15 seconds.
[High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

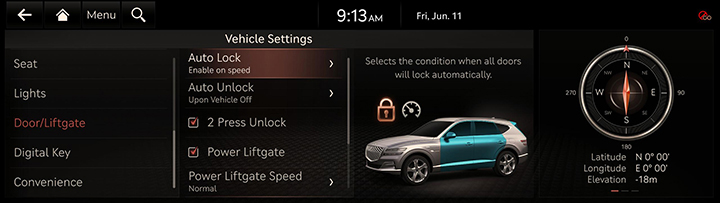

[Auto Lock]: Selects the condition when all doors will lock automatically.
[Auto Unlock]: Selects the condition when all doors will unlock automatically.
[2 Press Unlock]: Unlocks all doors when the unlock button on the key is pressed twice.
[Power Liftgate]: The power liftgate button can be used to automatically open/close the liftgate.
[Power Liftgate Speed]: Selects how fast the power liftgate opens and closes.
[Power Liftgate Opening Height]: Sets the opening height of the automatic liftgate.
[Smart Liftgate]: The liftgate will automatically open when approaching the liftgate with the smart key.
[Remote Window Control]: Enables/disables the Remote Window Control function.

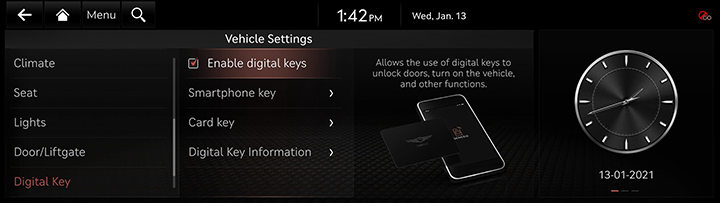

[Enable digital keys]: Allows the use of digital keys to unlock doors, turn on the vehicle, and other functions.
[Smartphone key]/[Card key]: Saves or deletes smartphone key or card key.
[Digital Key Information]: Shows the serial number of the digital key.

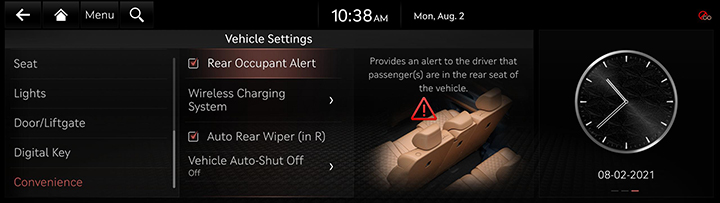

[Rear Occupant Alert]: Provides an alert to the driver that passenger(s) are in the rear seat of the vehicle.
[Wireless Charging System]: Enables the wireless charging pad to be used with compatible devices.
[Auto Rear Wiper (in R)]: Activates the rear windshield wiper automatically when the front wiper in On and the gear is in reverse.
[Vehicle Auto-Shut Off]: Selects the time to delay automatic shut off when the vehicle is parked with its engine on.
