Climate

The images may differ from the actual components.

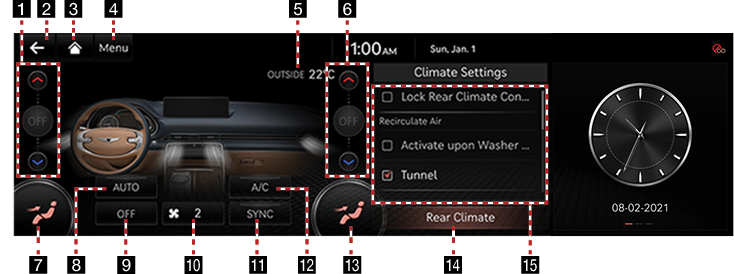

Operating Climate

Press [Climate] on the home screen.

1Driver Seat Temperature

Sets the temperature of the the driver seat.

2 a

Moves to HOME screen or the previous screen.

3 B

Moves to HOME screen.

4Menu

Shows Climate menu.

5Outside Temperature

Displays the current temperature outside the vehicle.

6Passenger Seat Temperature

Sets the temperature of the passenger seat.

7Driver Seat Blower Position

Changes the driver seat blower position to up/down.

8AUTO

The air cooling and heating are automatically activated according to the set temperature.

9OFF

Turns off the climate functions.

10Blower Level

Displays the set blower level.

11 SYNC

When the SYNC is active, front passenger seat and driver seat are synchronized.

12 A/C

When the A/C is active, air conditioner is operated for vehicle cooling.

13 Passenger Seat Blower Position

Changes the passenger seat blower position to up/down.

14 Rear Climate

It sets the air conditioning temperature and air volume operating in the rear seats.

15 Lock Rear Climate Control

Sets the rear climate control locked.

Activate upon Washer Fluid Use

Automatically prevents the washer fluid scent from entering the cabin.

Tunnel

The outside air is blocked for a pleasant indoor environment.

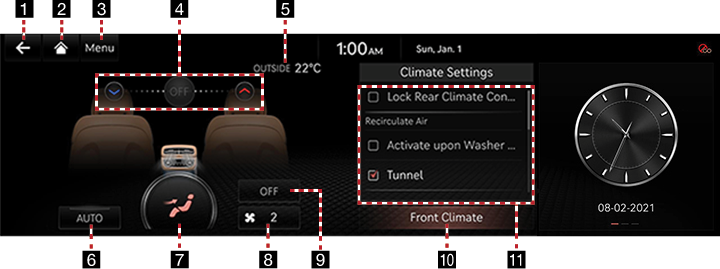

Controlling Rear Seat Climate

Powers on or off of the climate device of rear seat.

Press [Rear Climate Controls] on the climate screen.

1 a

Moves to HOME screen or the previous screen.

2 B

Moves to HOME screen.

3Menu

Shows Climate menu.

4Rear Seat Set Temperature

Sets the temperature of the rear seat.

5Outside Temperature

Displays the current temperature outside the vehicle.

6AUTO

The air cooling and heating are automatically activated according to the set temperature.

7Blower Position

Changes the seat blower position to up/down.

8Blower Level
