Vehicle setting

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Move to vehicle setting screen

Press [Setup] > [Vehicle] on the home screen. Vehicle setting screen is displayed.

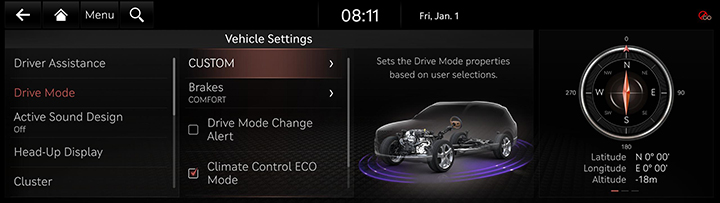

Drive Mode

1. Press [Drive Mode] on the vehicle settings screen.

2. Press the desired item.

• [MY DRIVE MODE]: Composes the optimal mode through combination of each system’s mode.
• [Brakes]: Selects the brake feel and responsiveness.
• [Drive Mode Change Alert]: Shows details of and vehicle image highlighting the area involved.
• [Climate Control ECO Mode]: Increases range of travel by reducing cooling and heating power of the climate control.
• [Coasting]: Decouples transmission from the engine while coasting for better fuel economy in ECO drive mode.

Active sound design

You can set an driving sound mode.

1. Press [Active sound design] on the vehicle settings screen.

2. Press the desired item.

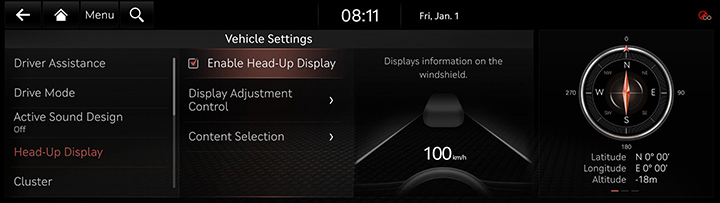

Head-Up Display

1. Press [Head-Up Display] on the vehicle settings screen.

2. Press the desired item.

• [Enable Head -Up Display]: Displays information on the windshield.
• [Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
• [Content Selection]: Sets the information to display on the heads-up display.

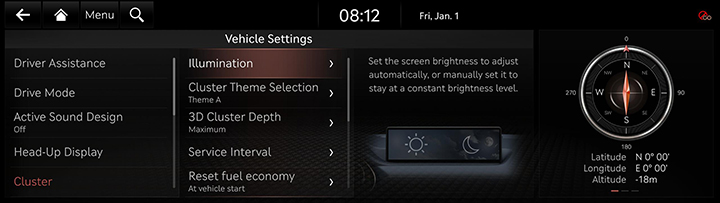

Cluster

1. Press [Cluster] on the vehicle settings screen.

2. Press the desired item.

• [Illumination]: Set the screen brightness to adjust automatically, or manually set it to stay at a constant brightness level.
• [Cluster Theme Selection]:Cluster uses the selected theme.
• [3D Cluster Depth]: Enables 3D effects for the cluster.
• [Service Interval]: Sets the service inspection period. When the period is reached, the alert is made.
• [Reset fuel economy]: Selects when to reset the average fuel economy gauge.
• [Content Selection]: Selects information to display on cluster.
• [Cluster Voice Volume]: Adjusts the cluster voice volume.
• [Welcome Sound]: Provides an audible tone when the cluster turns on or off.
• [Speedometer Subscale]: Displays the secondary speedometer scale underneath the primary scale.

,Reference

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier. If you replace the amplifier with a non-genuine part or replace the speakers with an nongenuine part, the amplifier may not work. Visibility may decrease if the user adjusts the screen brightness to dark in a bright environment.

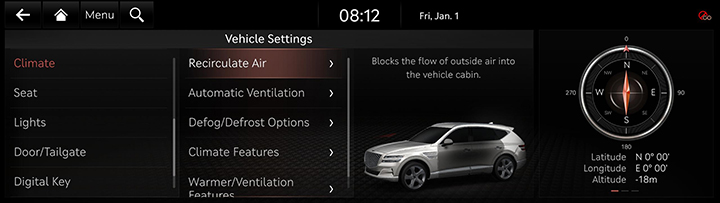

Climate

1. Press [Climate] on the vehicle settings screen.

2. Press the desired item.

• [Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
• [Automatic Ventilation]: Automatically switches the ventilation system to the Fresh Air mode after an extended use of Recirculated Air.
• [Defog/Defrost Options]: Sets the function used to reduce moisture on the windshield glass.
• [Climate Features]: Activates the Convenience functions for Climate Control.
• [Warmer/Ventilated Features]: Activates the Warmer/Ventilation Conveniences functions.

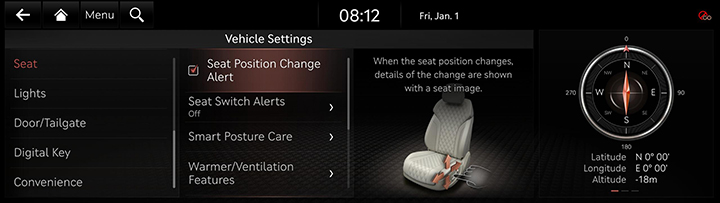

Seat

1. Press [Seat] on the vehicle settings screen.

2. Press the desired item.

• [Seat Position Change Alert]: When the seat position changes, the change information is displayed on the seat image.
• [Seat Switch Alerts]: Details of the seat switch control and position change are shown with a seat image.
• [Smart Posture Care]: The smart posture care suggests driving postures based on body type and displays the results of clinical testing on the back.

• [Warmer/Ventilated Features]: Activates the Warmer/Ventilation Conveniences functions.
• [Seating Easy Access]: The seat/steering wheel are moved so the driver can more easily exit/enter the vehicle.
• [Ergo-Motion Seat(Driver)]/[Ergo-Motion Seat(Passenger)]: Helps reduce fatigue and supports driver comfort using seat-based posture movements/changes.

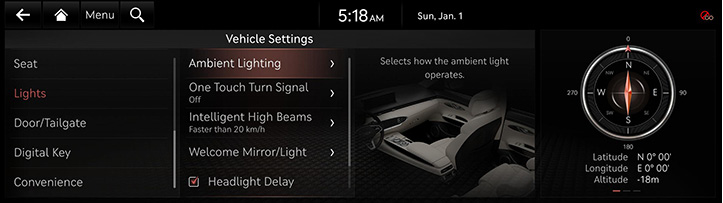

Lights

1. Press [Lights] on the vehicle settings screen.

2. Press the desired item.

• [Ambient Lighting]: Selects how the ambient light operates.
• [One Touch Turn Signal]: Selects the number of times the turn signal blinks when the turn signal lever is moved slightly.
• [Intelligent High Beams]: Sets the vehicle speed at which the intelligent High Beams system activates,or disables the feature.
• [Welcome Mirror/Light]: Selects the condition when the outside mirrors will unfold and the door handle light will turn on automatically.
• [Headlight Delay]: When the ignition is turned[OFF], the exterior lights turn off after approximately 15 seconds.
• [High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

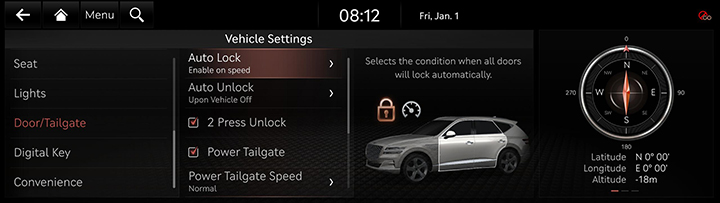

Door/Tailgate

1. Press [Door/Tailgate] on the vehicle settings screen.

2. Press the desired item.

• [Auto Lock]: Select the timing for automatic locking all doors.
• [Auto Unlock]: Select the timing for automatic unlocking all doors.
• [2 Press Unlock]: Unlocks all doors when the unlock button on the key is pressed twice.
• [Power Tailgate]: The power tailgate button can be used to automatically open/close the tailgate.
• [Power Tailgate Speed]: Selects how fast the power tailgate opens and closes.
• [Power Tailgate Opening Height]: Selects the maximum height of the power tailgate.
• [Smart Tailgate]: The tailgate will automatically open when approaching the tailgate with the smart key.
• [Remote Window Control]: Enables/disables the remote window control function.

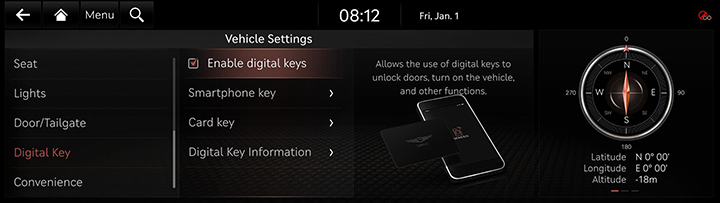

Digital Key

1. Press [Digital Key] on the vehicle settings screen.

2. Press the desired item.

• [Enable Digital Key]: Unlocks doors and turn vehicle on using a digital key.
• [Smartphone key]: Saves or deletes smartphone keys.
• [Card key]: Saves or deletes a card key.
• [Digital Key Information]: Shows the serial number of the digital key.

Convenience

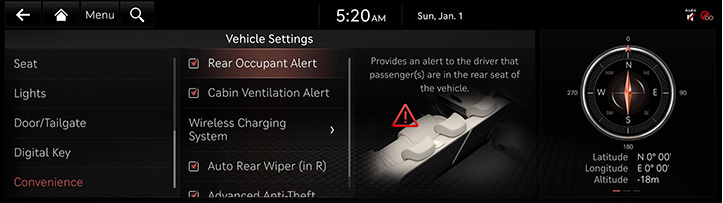

1. Press [Convenience] on the vehicle settings screen.

2. Press the desired item.

• [Rear Occupant Alert]: Provides an alert to the driver that passenger(s) are in the rear seat of the vehicle.

• [Cabin Ventilation Alert]: Provides reminder to increase cabin ventilation if an occupied front seat is reclined for an hour or more after parking the vehicle.
• [Wireless Charging System]: Enables the wireless charging pad to be used with compatible devices.
• [Auto Rear Wiper (in R)]: Activates the rear windshield wiper automatically when the front wiper is On and the gear position is in reverse.
• [Advanced Anti-Theft]: Provides an alert when movement is detected in the passenger compartment after the vehicle is locked.
