Activating DMB

Regarding DMB Broadcasting Reception

Terrestrial (VHF) DMB is a broadcasting service for mobile media.

Depending on the area, the reception condition may differ. However, for the safety, the video is not available while only the audio is played.

When receiving a DMB channel, the strength of wave may differ depending on the reception area or the reception can be degraded due to interferences. Therefore, if the reception is degraded, search the channel again by [Channel Search] menu. The video can be degraded or the reception may fail especially in following areas:

Since DMB wave travels in very straight fashion, if there is any interference such as buildings or valleys, the reception condition becomes bad.
At a location near to the power lines of trolley, high power line or neon sign, the video may stop or noise may be produced.
The video can be erased or noise lines can be produced at a location near to a transmission antenna or steel tower of armature radio station.
In an automobile, if a mobile phone, wireless communication device or other electronic devices is used, the video can be stopped or noises can be produced.
In a far distance from the station, the wave is weak so that the reception condition can be degraded.

,Reference

DMB TV reception may fail due to the local programing schedule, the station circumstance or the wave environment. And the program may change due to the broadcasting transmission type change. This receiver can receive DMB TV signals and supports data services (KBS TPEG) as well.
The screen automatically changes according to the mode corresponding to the selected DMB TV channel.
The mode of DMB TV is not separately controlled, yet, is determined according to the transmission format of the station.

Activating DMB Mode

Press [HOME] on the front seat control key or press [B] and then press [DMB].

,Reference

For the safety, the DMB video is supported only when the gear is at P position.
For the safety, the video is not supported and other partial features are restricted while the vehicle is in driving condition. However, the audio is played.
Even when the vehicle stops, if the gear is not in P position, the video is not supported.
When Auto Hold is turned on, video is displayed when the vehicle is stopped even if the gear is not in "P" position.

DMB Mode Screen Composition

1 a

Moves to the home screen or the previous screen.

2 B

Moves to the home screen.

3 Menu

Shows DMB menu.

4Full Screen

DMB video is displayed on the entire screen.

5 Mode Display

Shows the mode currently in play.

6 DMB Display Screen

Displays the video currently in play.

7 DMB Channel List

Displays the list of saved channels.

Initial Channel Search Method (If no searched channel or After the factory release)

Searches channels if DMB TV is watched for the first time or no channel has been registered.

Press [DMB] on the home screen. Initial channel search screen opens.
Press [Yes]. To cancel initial channel search, press [No].
While searching for receivable channels, the following screen opens.


To cancel channel search, press [Stop].

,Reference

During initial channel search, if the channel search is canceled, switches to the home screen.

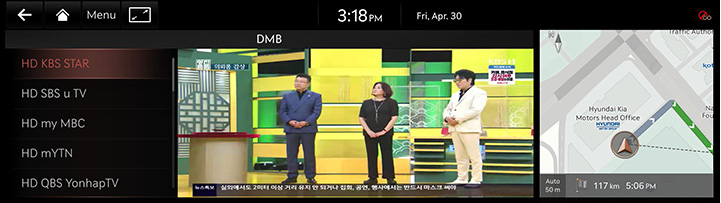

When channel search is completed, the first searched channel is automatically received.


,Reference

When DMB channels are searched, TV and radio channels are searched simultaneously.

Searching Broadcasting Channels

If no broadcasting is available in a new area, the corresponding broadcastings in the area will be available by searching channels.

Press [Menu] > [Channel Search] in DMB mode.

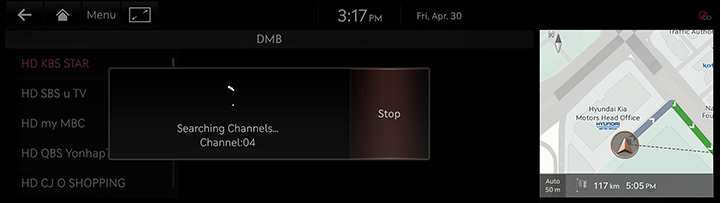

While searching for receivable channels, the following screen opens.


Selecting [Stop] during channel search stops searching for channels and the channel previously watched will be played.

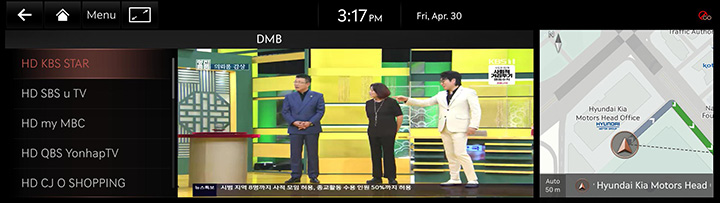

When channel search is completed, the first searched channel is automatically received.


Selecting a Broadcasting Channel

Selecting by screen touch

Drag DMB channel list up/down and press a desired broadcasting channel.

Selecting by using the button on front seat control key

Turn [TUNE] on controller to left/right to select a desired broadcasting channel.

Selecting by using steering wheel remote control

Press [S/W] on steering wheel remote control to select a desired broadcasting channel.

Moving DMB Channel List

You can change the channel stored in DMB channel list in the desired order.

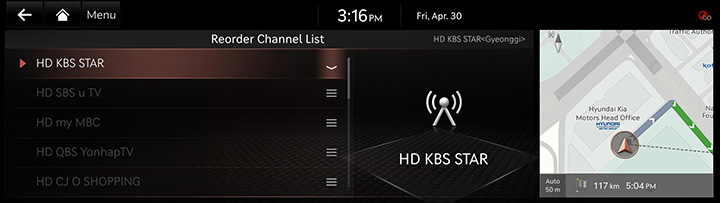

Press [Menu] > [Move Channel List] in DMB channel list.

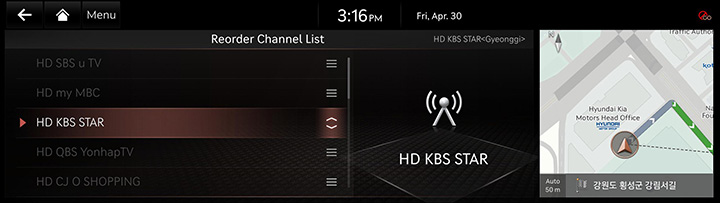

After long press on right reorder on one in DMB channel list, reorder into a desired DMB channel list.


Deleting DMB Channel List

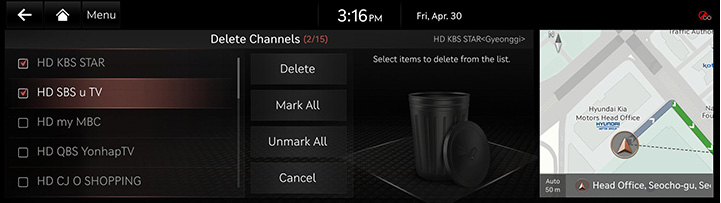

Press [Menu] > [Delete Channel List] in DMB channel list.

Select the desired item, Press [Delete] > [Yes].

[Mark All]: Selects all items.
[Unmark All]: Unmarks all items.
[Cancel]: Exits screen.

Switching DMB Display Screen (DMB List Screen/DMB Full Screen)

Touching on the screen switches to DMB list screen/DMB full screen.

,Reference

Pressing [O] on DMB list screen or pressing [Menu] > [Full Screen] switches to DMB full screen.

Emergency Broadcasting List

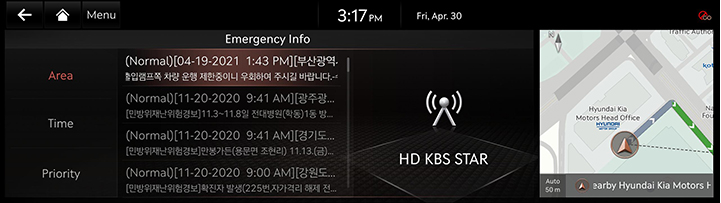

Emergency Broadcasting List View

May check the list of flood, earthquake, heavy rain or other emergency broadcastings.

Select [Menu] in DMB channel list.
Press [Emergency Info].

Check emergency broadcasting list by pressing [By Time], [By Area] or [By Priority].

Deleting Emergency Broadcasting List

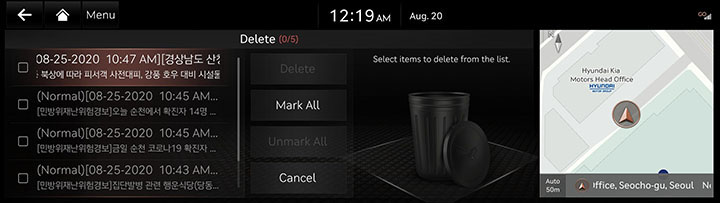

Press [Menu] > [Delete] in emergency broadcasting list.

Select the desired item, Press [Delete] > [Yes].

[Mark All]: Selects all items.
[Unmark All]: Unmarks all items.
[Cancel]: Exits screen.

Display Settings

Press [Menu] > [Display Settings] in DMB channel list.
For more details, refer to the "Display Settings".

Sound Settings

Press [Menu] > [Sound Settings] in DMB channel list.
For more details, refer to the "Sound Settings".
