Climate

The images may differ from the actual components.

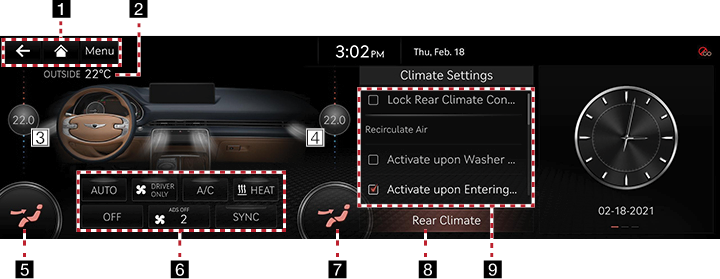

Operating Climate

Press [Climate] on the home screen.

1 a

Moves to HOME screen or the previous screen.

Moves to HOME screen.

Shows Climate menu.

2 Outside Temperature

Displays the current temperature outside the vehicle.

3Driver Seat Temperature

Sets the temperature of the the driver seat.

4 Passenger Seat Temperature

Sets the temperature of the passenger seat.

5 Driver Seat Blower Position

Changes the driver seat blower position to up/down.

6 AUTO

The air cooling and heating are automatically activated according to the set temperature.

DRIVER ONLY Blower Level

Displays the blower level of the driver's seat.

A/C

When the A/C is active, air conditioner is operated for vehicle cooling.

HEAT

Turns the heater on and off.

OFF

Turns off the climate functions.

Blower Level

Displays the set blower level.

SYNC

When the SYNC is active, front passenger seat and driver seat are synchronized.

7 Passenger Seat Blower Position

Changes the passenger seat blower position to up/down.

8 Rear Climate

It sets the air conditioning temperature and air volume operating in the rear seats.

9 Lock Rear Climate Control

Sets the rear climate control locked.

Activate upon Washer Fluid Use

Automatically prevents the washer fluid scent from entering the cabin.

Tunnel

The outside air is blocked for a pleasant indoor environment.

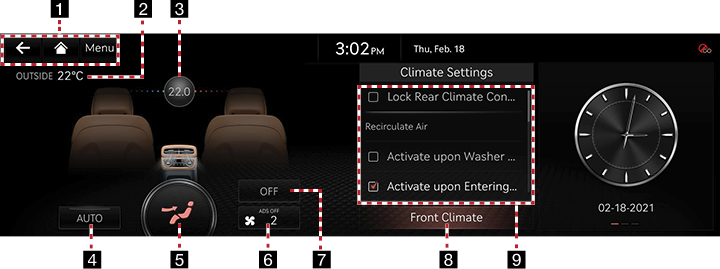

Controlling Rear Seat Climate

Powers on or off of the climate device of rear seat.

Press [Rear Climate Controls] on the climate screen.

1 a

Moves to HOME screen or the previous screen.

Moves to HOME screen.

Shows Climate menu.

2 Outside Temperature

Displays the current temperature outside the vehicle.

3 Rear Seat Set Temperature

Sets the temperature of the rear seat.

4 AUTO

The air cooling and heating are automatically activated according to the set temperature.

5 Blower Position

Changes the seat blower position to up/down.

6 Blower Level
