Operating navigation

The navigation system displays various information on the screen.

Starting navigation

Press [HOME] on the front seat control key or press [B].
Press [MAP] on the head unit or press [Map] on the home screen. The map screen opens.

Displaying current location

Press [MAP] on the head unit to display the current vehicle location on the map screen.

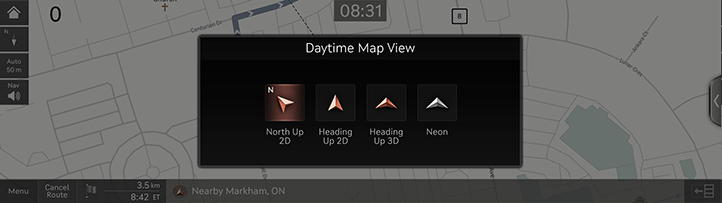

Changing map view

Press [] on the map screen.

Press the desired button.

[North Up 2D]: Displays the map based on the north direction.
[Heading Up 2D]: Displays the map according to the vehicle direction.
[Heading Up 3D]: Displays buildings in 3D on the map.
[Neon]: Displays the map in 3D neon style.
[AR] (If equipped): Displays the augmented reality screen including SVM front camera screen, ADAS information and navigation.

,Note

The [Neon] screen changes according to the surrounding environment or GPS time.
[AR] (If equipped) is available on the vehicle which is SVM (Surround View Monitor) option.
[AR] (If equipped) map view may differ from the actual one due to the condition of the camera lens or external environment. Drive carefully.

Zoom in/out on the map

Pinch in or out with your finger on the map screen to zoom in or out on the map.
Rotate the controller left or right to zoom in or out on the map.

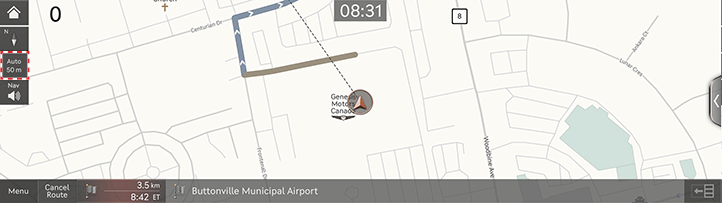

Switching map scale

Press [] to zoom in or out on the map according to the vehicle's driving speed.

[]: Fixed scale
[]: Scale changes based on the current vehicle speed.

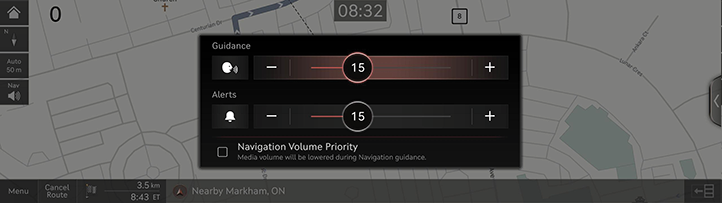

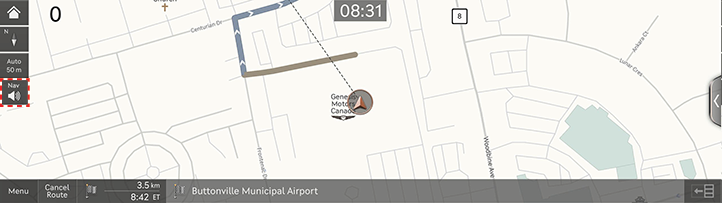

navigation volume

Press [] on the map screen.

Select a desired item.

[J]/[I]: Adjust the navigation volume.
[]: Navigation volume is controlled by one action.
[]/[]: Guidance or alerts are activated. Press the button to mute.
[]/[]: Guidance or alerts are muted. Press the button to activate.
[Navigation Volume Priority]: Set the volume of navigation guidance louder than the audio volume.

,Note

When the guidances and the alerts are muted, the navigation volume button on the map screen is muted. However, when one of them is activated only, it is displayed as a speaker icon.

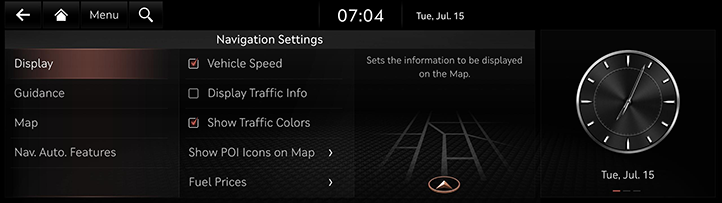

Navigation settings

Press [Menu] > [Navigation Settings] on the map screen.

Set or adjust various options. The content displayed on the screen may be different from this manual, depending on the vehicle options.

[Display]: Sets the information, color or icon options displayed on the map.
[Guidance]: Sets the route or location guidance options.
[Map]: Sets the map mode, font size or scale options.
[Nav. Auto. Features]: Sets the automated features.

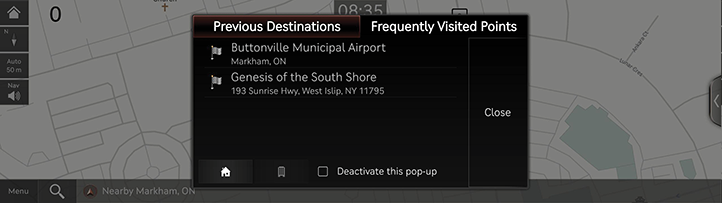

Frequently Visited Points/Previous Destinations

At the start of navigation, the previous destinations and favorite destinations are automatically displayed on the pop-up screen for 10 seconds. On the pop-up screen, press the desired destination and route to start the guidance. Available only when the destination is not set.

[Previous Destinations]: Shows previous destinations.
[Frequently Visited Points]: Shows frequently visited destinations.
[]: Recommends a route to the place saved as [Home].
[]: Recommends a route to the place saved as [Work].
[Close]: Closes the pop-up screen.
[Deactivate this pop-up]: Deactivates this pop-up screen.

,Note

Press [Setup] > [Navigation] > [Nav. Auto. Features] > [Previous Destinations] > [Display Previous Destinations when entering the Map] to activate the pop-up screen.

POI

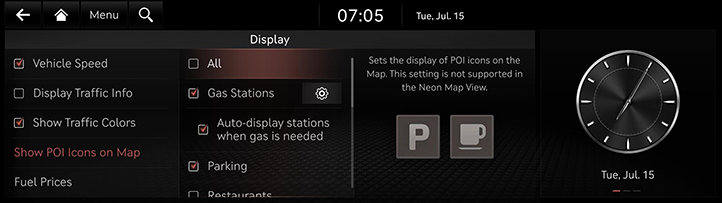

Setting POI display

Set to display the POI category on the map screen.

Press [Menu] > [Nearby Info.] > [Show POI Icons on Map] on the map screen.

Select a facility to display on the map screen.

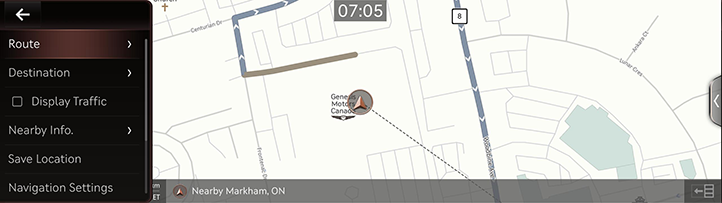

Quick menu

Press [Menu] on the map screen.

Press the desired item.

[Route]: Changes the route conditions by using the route menu when the route is activated.
[Destination]: Sets a destination by entering keyword or selecting a place from previous destinations or favorites.
[Display Traffic]: Sets whether to display traffic flow.
[Nearby Info.]: Sets whether to display the POIs on the map or finds a destination by using [Nearby POIs].
[Save Location]: Adds the current position to [Saved Places].
[Navigation Settings]: Moves to the navigation settings screen.
[Display Off]: Turns off the screen.
[Web Manual]: Displays the QR code for the manual of corresponding function.
[Split Screen]: Displays split screen selection menu.
