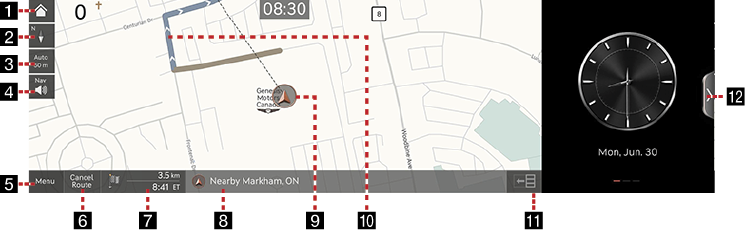

Map Screen

1 Home

Moves to home screen.

2 Map view

Sets the view mode of navigation map.

3Map scale display

Set a desired scale in 75 ft~1800 mi level.

• []: Fixed scale
• []: Automatic scale. Scale changes based on the current vehicle speed.

4 Navigation volume

Set the navigation voice guidance volume.

5 Menu

Moves to quick menu screen.

6 Cancel Route/Resume Route

• Press [Cancel Route] to cancel the currently set route.
• Press and hold [Cancel Route] to pause the currently set destination.
• Press [Resume Route] to guide the paused route again.

7 Estimated arrival time and remaining distance

Displays the remaining distance, the required time and the estimated time to arrive the destination.

8 Current location and destination name display

Displays the current location and the destination name.

9 Vehicle location mark

Displays current vehicle position and direction.

10Route guidance lane

Displays the route guidance lane to the destination when a route is set.

GPS reception status display

• Reception: Marked in color
• Reception failure: Marked in gray color

11 TBT (Turn By Turn)

Turns the TBT (Turn By Turn) on/off.

• Displays distance and direction information for the upcoming TBT (Turn By Turn) when the route is activated.
• TBT (Turn By Turn) is deactivated when the route is not set.
