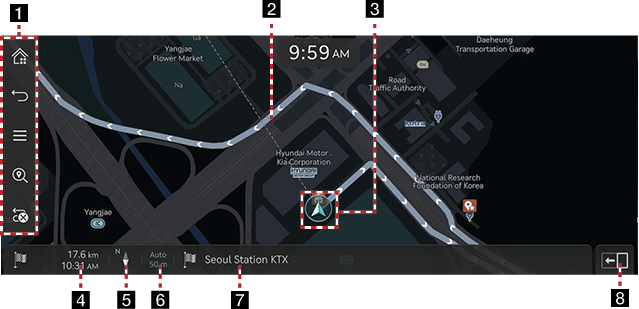

Map Screen Composition

1

Moves to the home screen.

Moves to the home screen or the previous screen.

Opens the navigation menu.

Moves to destination search screen.

Cancel Route/Resume Route

• Deletes the currently set route to press the [].
• Press and hold [] on the map screen to pause the currently set destination.
• Press [] to guide the paused route again.

2Route Display

A rough from the current vehicle position to the set destination is displayed.

3 Vehicle Position Icon

Shows the current vehicle position and the direction of vehicle movement.

4 Estimated Arrival Time and Remaining Distance

Displays the remaining distance, the required time and the estimated time to arrive the destination.

5 Map View

The Map is displayed based on the vehicle direction or the North direction.

GPS Reception Status Display

• Reception: Specified in color
• Reception Failure: Specified in grey color

6 Map Scale Display

Switches to a desired scale in 25 m~100 km level.

• (Auto Inactivation): Fixed scale
• (Auto Activation): Automatic Scale (Scale changes based on the current vehicle speed)

7 Current Location and Destination Name Display

Displays the current location and the destination name.

8

The full route to your destination is displayed on the right side of the map.
