Start

Name and Function of each Component

Bluetooth remote control

The image of this product may be different from the actual product.

You can use it after connecting the Bluetooth remote control. For more details, refer to the "Device Connection settings".

  1. L/R button

    You can select the left rear seat screen or the right rear seat screen to operate.

  2. a button

    • Press to turn the system on/off.

    • Press and hold to turn the screen on/off. The sound remains on.

  3. ///Controller

    Press to move to the desired menu or item.

  4. Select button

    Select the desired menu or item.

  5. LED

    When the Bluetooth remote control is connected, the LED lights up when operating.

  6. Entertainments button (if equipped)

    Press the desired Entertainments. (OTT services may differ depending on the region.)

  7. button

    Press to move to the previous screen.

    button

    Moves to home screen.

    m (User) button

    • Moves to the screen of the function that the user selected.

    • Press and hold to move to the custom button settings screen.

    • If you press the button after you select None on the rear custom button settings screen, moves to the rear custom button settings screen.

  8. K /L button

    Press to adjust the volume. (You can adjust the volume up to 45 levels. Detailed control is possible from low to high volume.)

  9. (Voice recognition) button (Available on YouTube)

    Press and hold to search for the desired content by using voice. (Voice recognition may not be supported depending on the software version.)

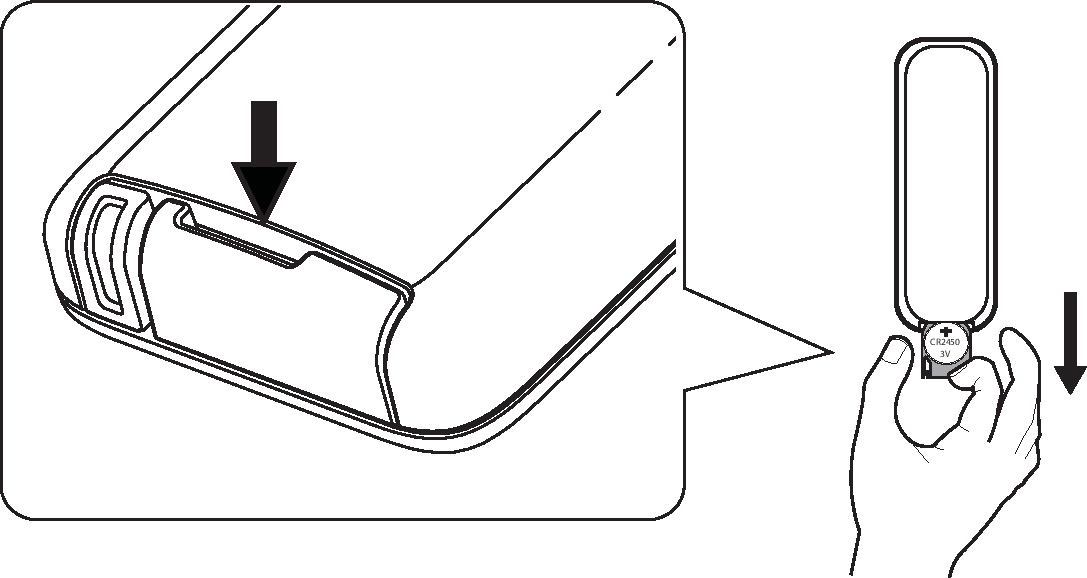

Changing the battery of the Bluetooth remote control

The image of this product may be different from the actual product.

  • If the remote control does not contain a battery:

    To insert the battery, slide and pull the battery cover as shown in the illustration to remove it.

  • If the remote control contains a battery:

    Use a tool (such as a coin) in the designated slot to open the cover and replace the battery.

  • There is a risk of fire or explosion if you replace the battery with a battery that does not meet specifications. Replace with a CR2450 or equivalent 3V micro lithium battery.

  • Do not heat the batteries in this device above 100 °C.

  • Do not swallow batteries. There is a risk of chemical burns.

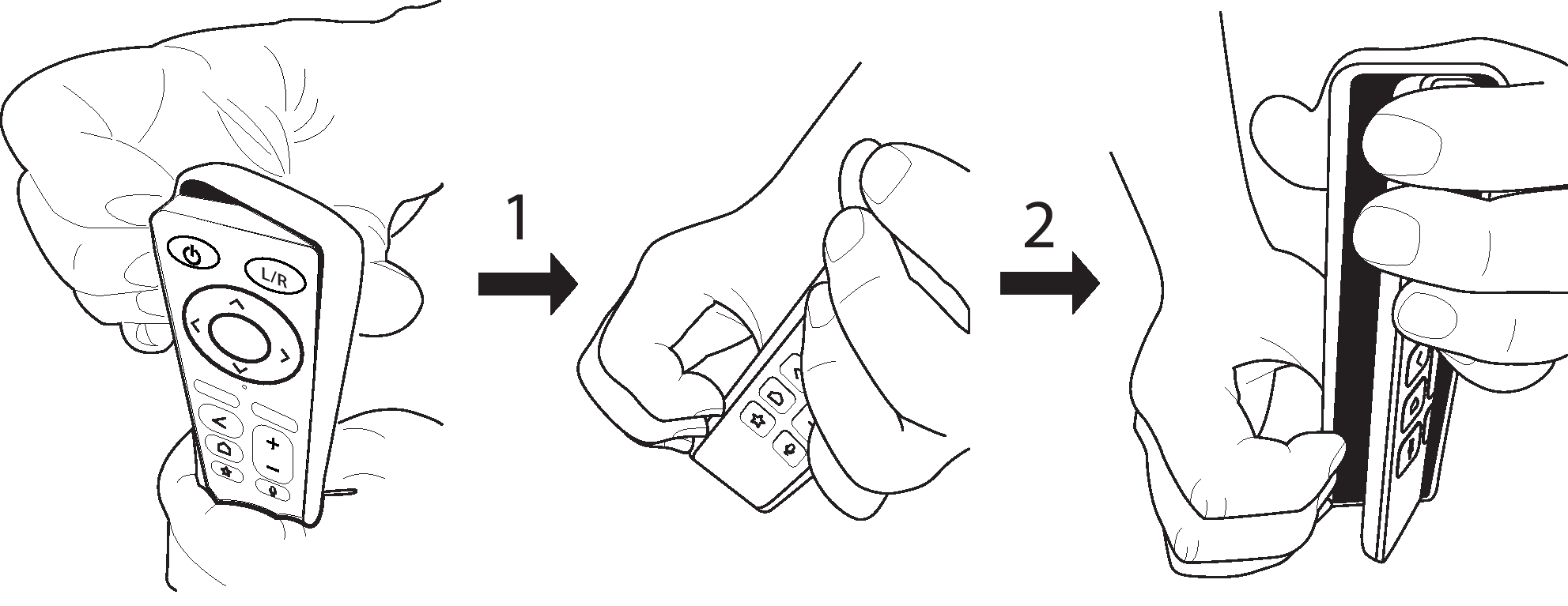

Separating the remote control protective case

  1. While holding the bottom of the remote control, pull the top side of the protective case backwards to detach the top of the remote control.

  2. While holding the top of the remote control, pull the bottom side of the protective case backwards to separate the remote control.

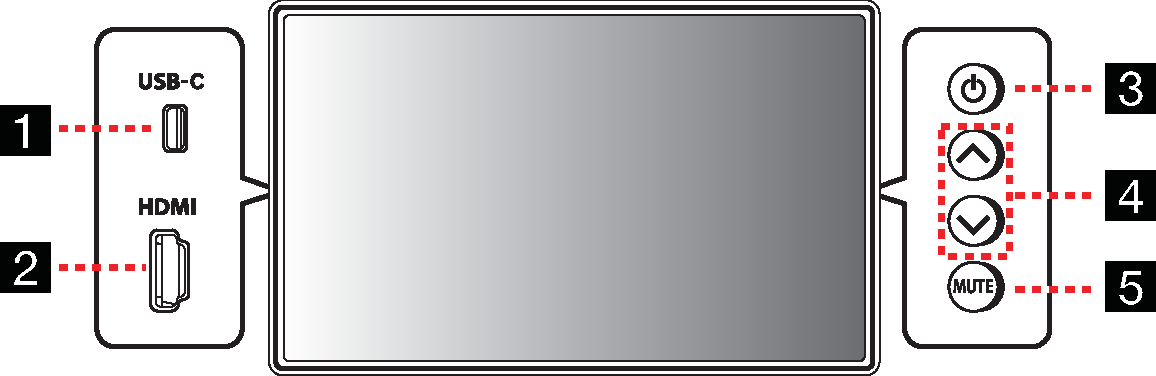

Rear seat monitor

The image of this product may be different from the actual product.

  1. USB-C

    Connect a USB C type storage device to play media.

  2. HDMI

    Connect an HDMI cable to connect an external device to this unit.

  3. a button

    • Press to turn the system on/off.

    • Press and hold to turn the screen on/off. The sound remains on.

  4. S/W button

    Press the button up/down to adjust the volume. (You can adjust the volume up to 45 levels. Detailed control is possible from low to high volume.)

  5. MUTE button

    Press to turn mute on/off.
