Phone

Making Phone Calls

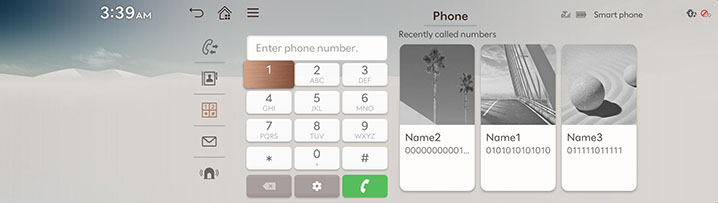

Making a phone call by entering the number

  1. Press [] on the screen.

  2. Enter the phone number on dial pad.

  3. Pressing [] on dial pad or [s] on steering wheel remote control starts the phone call.

  • In case of entering a wrong number, press [] to delete each digit. Pressing and holding [] deletes all entered numbers.

  • Pressing and holding ‘0’ on dial pad enters '+'.

    Phone call is available by entering only a part of the phone number.

    ex) When '010' is entered, all contact numbers including '010' are listed on the right screen. Press the desired contact to place a call.

Making Phone Calls via Voice Recognition

If you change the language displayed on the system to English, the voice recognition feature is not supported. Change the system language to 한국어. For more details, refer to the "Language".

  1. Press [] on the screen. The voice says “이름을 말씀하세요.”

  2. If you hear a beep after the voice guidance, speak the desired frequency. (ex: 홍길동)

The voice recognition icon can only operate on the recent call screen, the contacts screen, and the emergency call screen.

Making Phone Calls via Speed Dial

Press and hold the speed dial no. registered in the phone long on dial pad on dial screen.

  • In case of 1 digit speed dial

    ex) If it's 8, press and hold 8.

  • If the speed dial number is a two-digit number

    ex) If it's 12, press 1 shortly and press and hold 2.

Some mobile phone models may not support this feature.

Making a call by redialling

On call waiting screen (No phone number is entered), press and hold [] on dial pad screen or [s] of steering wheel remote control to connect to the most recent call number.

  • Re-dial is not available if no phone call has been made or a Bluetooth phone is not connected.

  • On call waiting screen (No phone number is entered), press [] on dial pad screen or [s] on steering wheel remote control to enter to the most recent call number.

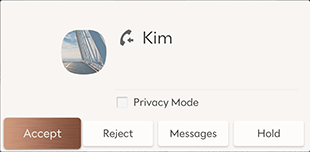

Receiving Phone Calls

  1. To receive an incoming call, press Accept on the screen or [s] on steering wheel remote control.

  2. The call is connected.

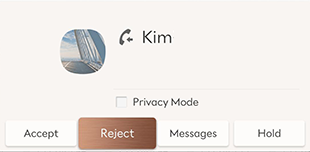

Rejecting Phone Calls

  1. To reject an incoming call, press Reject on the screen or press and hold [s] on steering wheel remote control.

  2. The call notification ends.

This function may not be provided depending on the mobile phone model.

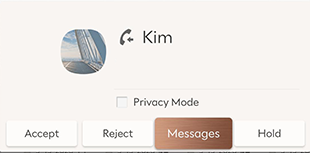

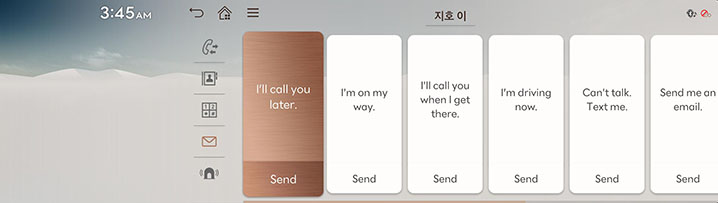

Responding with incoming text

  1. If you want to respond with a text message, press the Messages on the screen.

  2. Select the desired character and press the Send.

This function may not be provided depending on the mobile phone model.

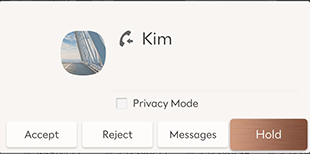

Holding Phone Calls

  1. To hold an incoming call, press Hold on the screen.

  2. The call is switched over to hold mode and moves to the previous screen.

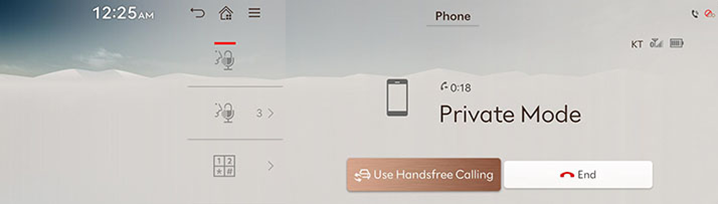

Switching Calls to Mobile Phone/Hands-free

Switches a call from Hands-free to mobile phone or vice versa.

  1. To switch from Hands-free to mobile phone during a phone conversation, press Use Private on the screen.

  2. A screen notifying the call has been switched to mobile phone opens.

  3. To switch from mobile phone to Hands-free during a phone conversation again, press Use Handsfree Calling on the screen.

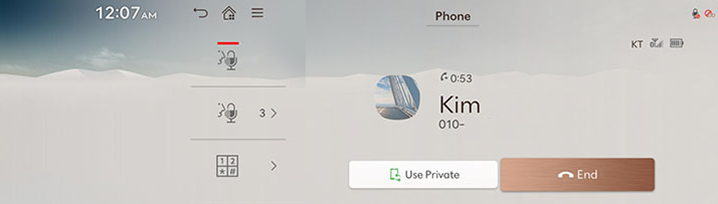

Ending a call

  1. To finish a phone conversation, press End on the screen or [s] on the steering wheel remote control.

  2. The phone is hung up.

  • To control the mic volume during a phone conversation, press [].

  • To cut the sound delivered to the other party during a phone conversation, press [].

  • To open dial pad during a phone conversation, press [].

Setting Bluetooth

  1. Press Setup > Device Connections on the home screen. Bluetooth setting screen opens.

  2. Refer to "Device Connection Settings" in the system settings for Bluetooth settings.

  • Pressing [] on the dial pad also opens Bluetooth setting screen.

  • This function may not be provided depending on the mobile phone model.

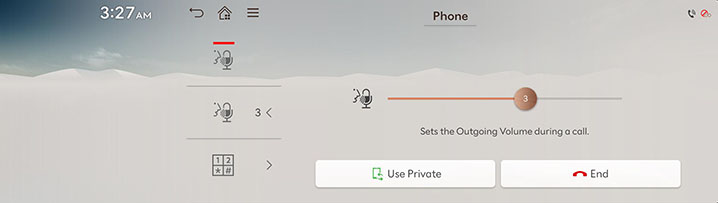

Setting Outgoing Volume

Sets outgoing volume for phone conversations.

  1. Press [] during a phone conversation.

  2. Drag and touch to adjust outgoing volume.

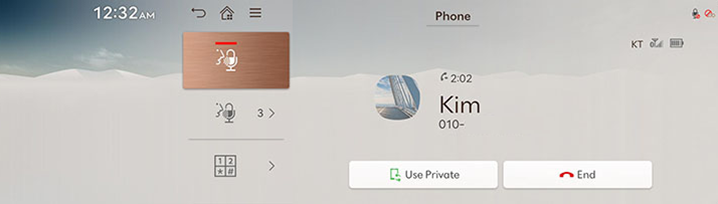

Setting MIC ON/OFF

Cuts the sound delivered to the other party during a phone conversation.

  1. Press [] during a phone conversation.

  2. To turn MIC on again, press [].

MIC can be turned on/off during a phone conversation by pressing [q] on steering wheel remote control.

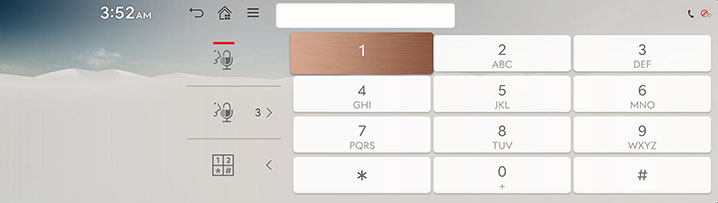

Switching Keypad

Switching to ARS No. entrance screen during a phone conversation is available.

  1. Press [] during a phone conversation.

  2. Press [] to switch back to phone call screen.
