System

Device Connection Settings

The images displayed on this system may differ from actual ones.

Move to Device Connection Settings screen

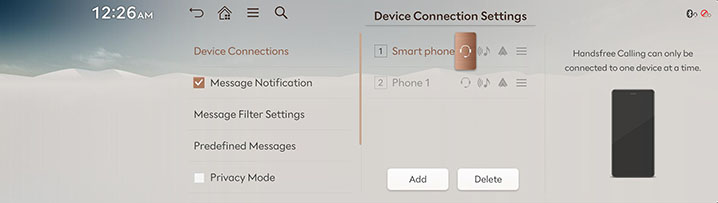

Press Setup > Device Connections on the home screen. Device connection settings screen is displayed.

Phone connections

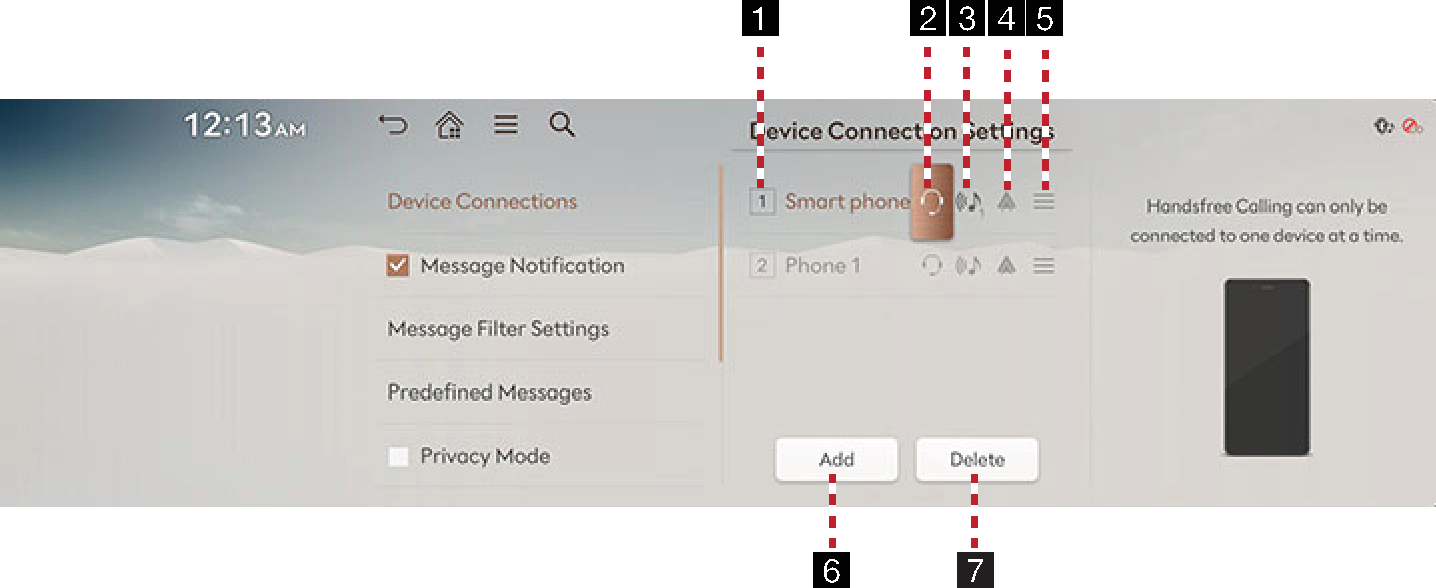

On the device connection settings screen, press Device Connections.

  1. Registered device list

    It displays the list of registered Bluetooth devices. AutoConnect displays in order of priority.

  2. Bluetooth hands-free connection status

    When Bluetooth hands-free is connected, icon is activated.

  3. Bluetooth audio connection status

    When Bluetooth audio is connected, icon is activated.

  4. Phone projection settings

    Displays a device to be used for phone projection.

  5. Auto connection priority

    You can automatically connect Bluetooth device by priority at startup. You can change the set priority by long pressing the desired Bluetooth device.

  6. Add

    It newly registers Bluetooth device.

  7. Delete

    It selects and deletes registered device.

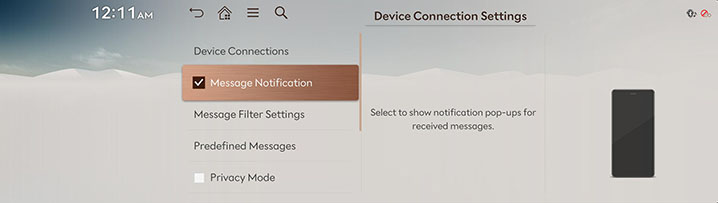

Message notification

The function of message notification can turn on or off.

On the device connection settings screen, turn Message Notification on or off.

Depending on the model of the connected Bluetooth device, this function may not be supported.

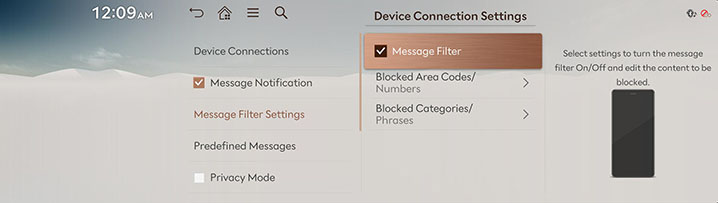

Message Filter Settings

  1. On the device connection settings screen, press Message Filter Settings.

  2. Select the desired items.

    • Message Filter: You can set whether to use message receiving filters, and edit the contents of each filter.

    • Blocked Area Codes/Numbers: You can set the blocking area code and the phone number.

    • Blocked Categories/Phrases: You can set the blocking categories and a phrase.

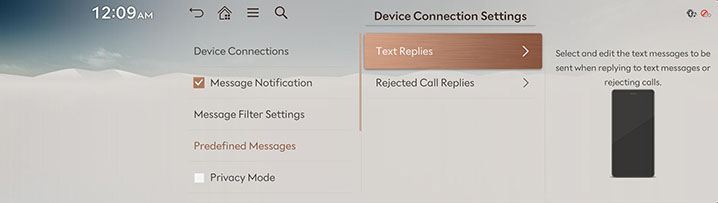

Predefined messages

You can check and change registered reply messages.

  1. On the device connection settings screen, press Predefined Messages.

  2. Press Text Replies or Rejected Call Replies and select the desired message.

  3. To send after completing contents of text, press OK.

Depending on the model of the connected Bluetooth device, Predefined Messages function may not be supported.

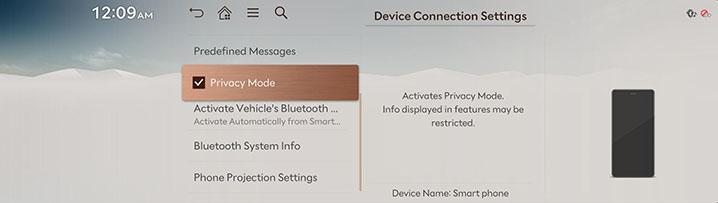

Privacy mode

It sets privacy mode to protect personal information.

If privacy mode is set, contacts, call history, favorites, and messages will not be displayed.

On the device connection settings screen, turn Privacy Mode on or off.

You can turn [] > Privacy Mode on or off in the phone screen.

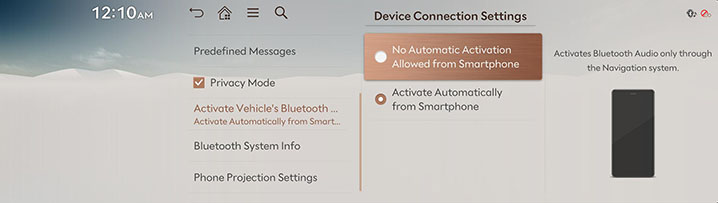

Activate Vehicle's Bluetooth Audio

  1. You can make settings related to Bluetooth audio switching.

    On the device connection settings screen, press Activate Vehicle's Bluetooth Audio.

  2. Press a desire items.

    • No Automatic Activation Allowed from Smartphone: Activates Bluetooth Audio only through the Navigation system.

    • Activate Automatically from Smartphone: Activates Bluetooth Audio automatically when playing media from a paired smartphone.

Bluetooth system info

You can check or change Bluetooth hands-free vehicle name.

Vehicle name

  1. On the device connection settings screen, press Bluetooth System Info.

  2. To change vehicle name, press Vehicle Name.

  3. After changing vehicle name, press OK.

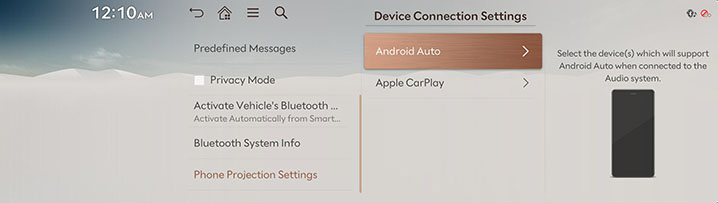

Phone Projection Settings

The images displayed on this system may differ from actual ones.

You can set whether to use the corresponding function when Android Auto or Apple CarPlay function supporting device is connected.

  1. On the device connection settings screen, press Phone Projection Settings.

  2. Select the desired items.

    • The supported phone projections are Android Auto and Apple CarPlay. You can change the settings for each device that you have connected.
