Navigation

Activating navigation

Starting navigation

Press the HOME button on the front seat control key or press the [] button. Home screen opens.

Current location mark

Press MAP on the head unit while using the infotainment system specifies the current vehicle location and the map of the surrounding area.

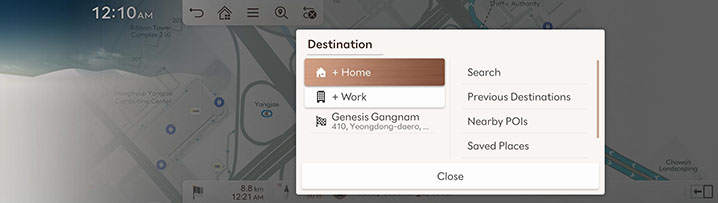

Simple Navigation Feature

Simple navigation features are listed for easy access to frequently used features.

Moves to the simple navigation screen if you press the touchpad on front seat control key.

  • Home: A route to the location saved as Home is advised.

  • Work: A route to the location saved as Office is advised.

  • Select Previous Destination to receive guidance on a route to the selected destination.

  • Search: Set your destinations by entering the full name or initial, phone number, address, etc.

  • Previous Destinations: Set a destination as Freq. Visited Locations, Destinations, Searches.

  • Nearby POIs: Search for facilities nearby by category and set them as your destination.

  • Saved Places: Set destination as Favorites, Saved Places.

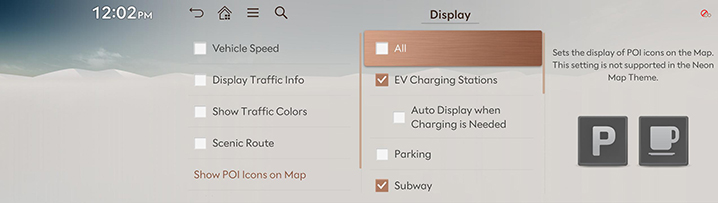

  • Show POI Icons on Map: You can set the types of nearby facilities to be displayed on the map.

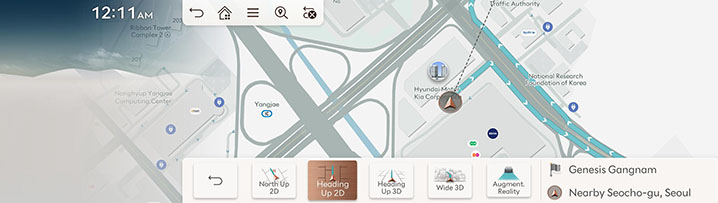

Changing Map View

Displays the map based on the vehicle direction or the North direction.

Map View change is available by pressing [] pop-up on the map screen.

  • North Up 2D: Map is displayed having the top directs the North regardless the vehicle’s heading direction.

  • Heading Up 2D: Map is displayed having the vehicle’s heading direction pointing up.

  • Heading Up 3D: Map displays buildings in 3D.

  • Neon: Map displays buildings in 3D Neon.

  • Neon Wide: Map displays buildings and other elements on the map in a neon style, expanding from the center screen and clustering together.

  • Wide 3D: Map displays buildings and other elements on the map in 3D, expanding from the center screen and clustering together.

  • Augment. Reality: SVM front cameras display navigation and ADAS information as augmented reality.

  • Augmented reality (AR) is available in vehicles equipped with the Surround View Monitor (SVM) option.

  • AR may display differently from reality due to the condition of the camera lens or external environment. Drive carefully.

  • The information and warnings displayed in augmented reality may be inaccurate. Drive carefully.

  • The information and warnings displayed in augmented reality may cause delays compared to the reality.

  • If you select Neon on the pop-up, Neon white screen is displayed during the daytime and Neon screen is displayed at night.

Switching Map Scale

Manually Switching Map Scale

Rotate the controller on the front seat control key to left or right or zoom in/out with your finger on the map screen to change the map scale.

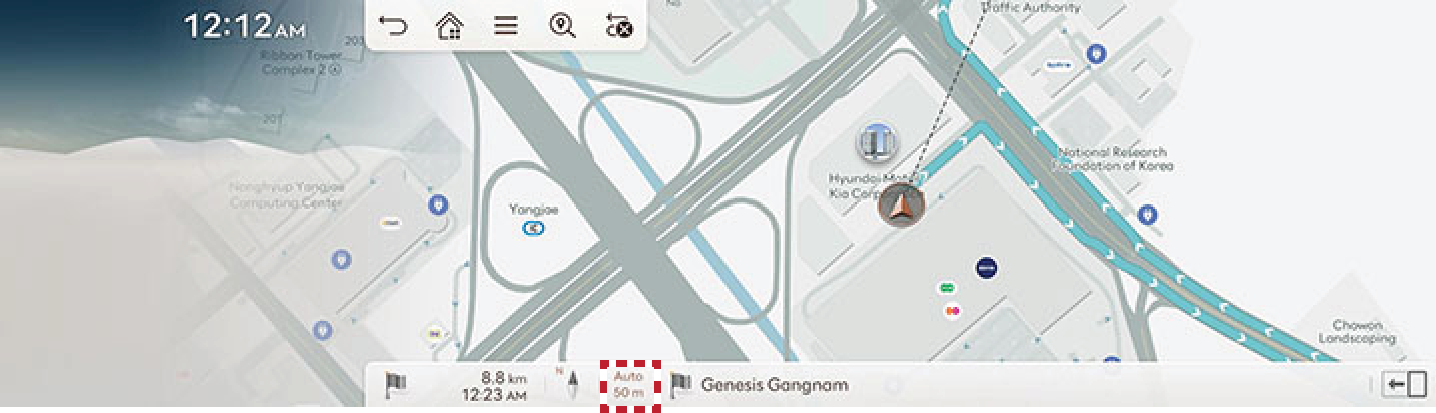

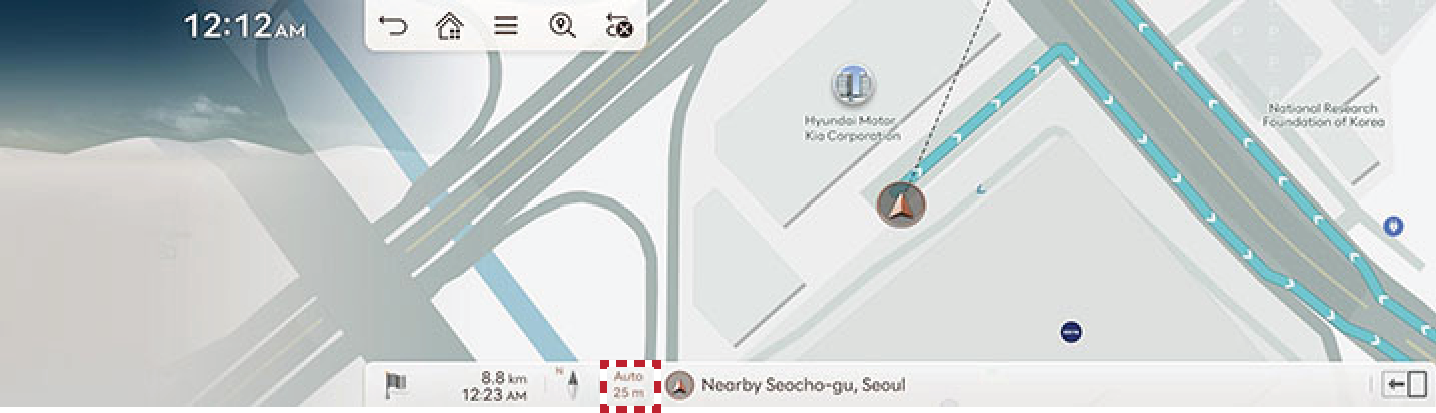

Automatically Switching Map Scale

You can set the map to automatically zoom in or out depending on the vehicle's driving speed.

Press []/[] on the map screen.

  • [] (Auto Inactivation): Fixed scale

  • [] (Disabled): Scale changes based on the current vehicle speed

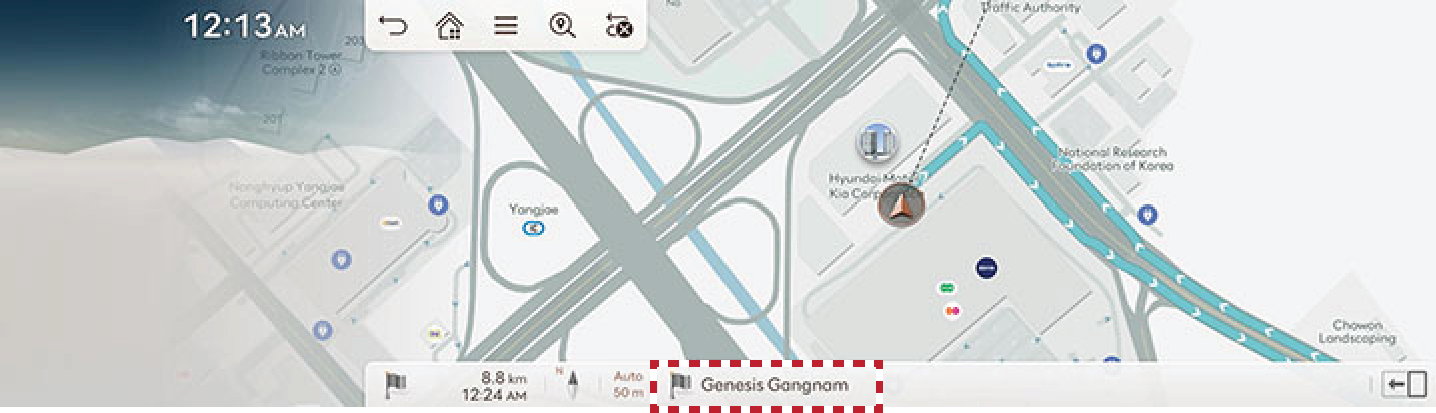

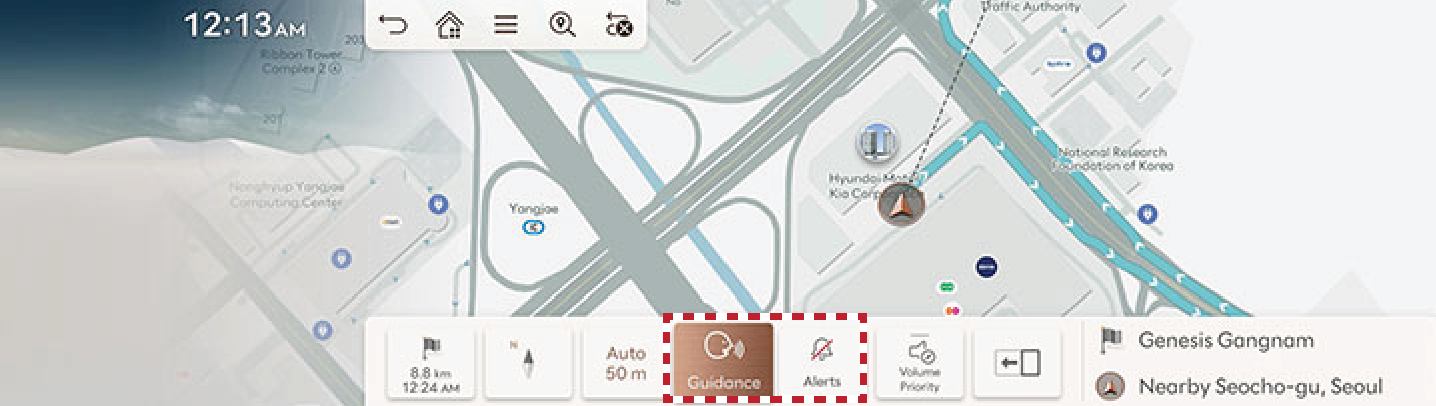

Navigation volume

Sets the volume of voice guidance of navigation.

  1. Press the displayed item at the bottom of the map screen.

  2. Select the desired items.

    • []/[]: Activate the voice and the sound effect.

    • []/[]: Mute the guidance voice and guidance sound effect.

    • []: Lowers all the audio volumes when navigation prompts are playing.

When the voice and the sound effect are muted, the navigation volume button on the map screen is muted. However, when one of them is activated only, it is displayed as a speaker icon.

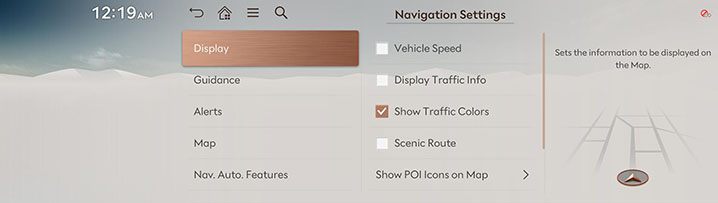

Navigation settings

  1. Press [] > Navigation Settings on the map screen.

  2. For more details, refer to the "Navigation Settings".

Location Sharing

The location information can be shared for a set time period to another person by entering his/her phone number.

  1. Press [] > Location Sharing on the map screen.

  2. For more details, refer to the "Location Sharing".

  • Genesis Connected Service subscription is required to use Location Sharing.

  • Location Sharing may not be accurate on the location depending on the vehicle or the network environment.

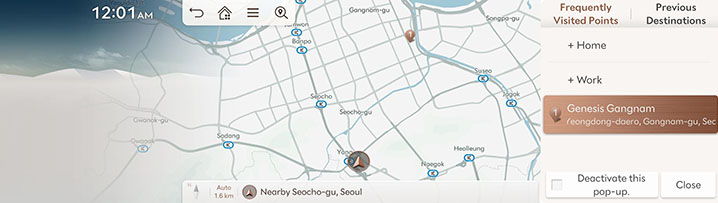

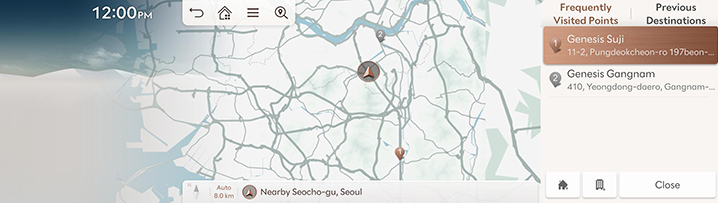

Setting Frequent Location/Previous Destination

When the navigation starts, Popup display of previous and frequent destinations automatically opens for approx. 10 seconds. During the opening, pressing a destination and selecting a desired route start the guidance. Available only when no route is set.

  • Frequently Visited Points: Shows frequently visited destinations.

  • Previous Destinations: Shows previous destinations.

  • Deactivate this pop-up.: Check the box to stop the popup of previous destinations. This function can also be set in the Navigation Settings under Nav. Auto. Features > Previous Destinations > Save Previous Destinations.

Saving current position

The current vehicle locations can be saved.

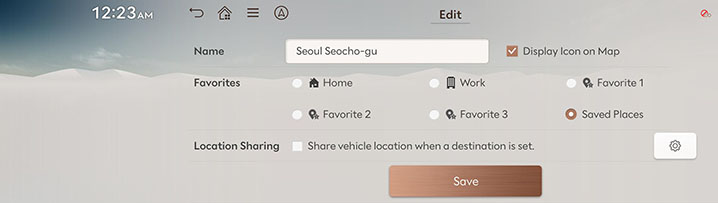

  1. Press [] > Save on the map screen.

  2. Select the desired items.

    • Name: After editing the name, Press OK.

    • Display Icon on Map: Sets a symbol to specify on the map screen.

    • Favorites: Changes the address book.

    • Location Sharing: Sets the location sharing.

  3. Press Save.

Press [] > Destination > Saved Places > Saved Places to check the registered location.

Nearby Facilities

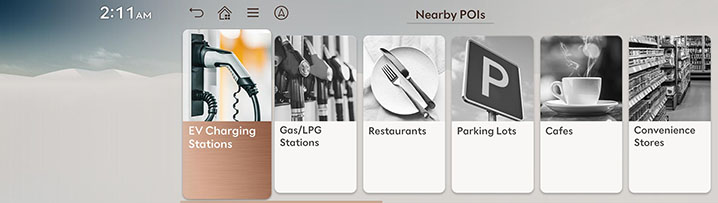

Searches POI Categories

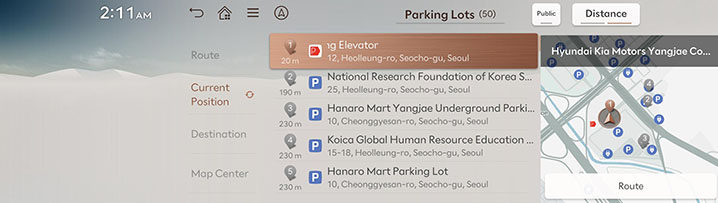

  1. Press [] > Nearby Info. > Nearby POIs on the map screen.

  2. Select the desired items.

  3. Select the desired items.

    • Route: Facility search in neighboring area of route.

    • Current Position: Facility search in neighboring area of the current vehicle location.

    • Destinations: Facility search in neighboring area of destination or waypoint.

    • Map Center: Search for facilities around the selected location.

    • Favorite Stations (if equipped): When the EV charging station is selected, register the favorite charging station to display facilities of the registered charging station.

Home, Office, Favorites

Home, Work or a frequently visited location can be saved/edited in or deleted from favorites.

Saving Favorite

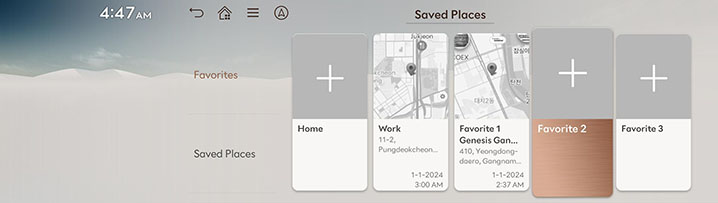

  1. Press [] > Destination > Saved Places > Favorites on the map screen.

  2. Select the desired items.

  3. Use search menu to set Home, Work, Favorite 1, Favorite 2 or Favorite 3.

  4. When setting is completed, press OK.

  • Press [] > Destination > Saved Places > Favorite to check Home, Work, Favorite 1, Favorite 2 or Favorite 3.

  • Refer to "Setting Destinations by Saved Places” for setting of Home, Work, Favorite 1, Favorite 2 or Favorite 3.

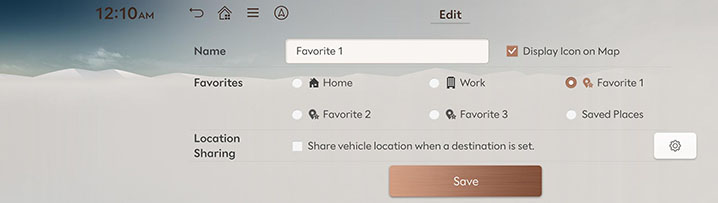

Editing Favorite Places

  1. Press [] > Destination > Saved Places > Favorites > [] > Edit on the map screen.

  2. Select an item to edit.

  3. Select and edit a desired item.

    • Name: After editing the name, Press OK.

    • Display Icon on Map: Sets a symbol to specify on the map screen.

    • Favorites: Changes the address book.

    • Location Sharing: Sets the location sharing.

  4. Press Save.

Deleting Favorite Places

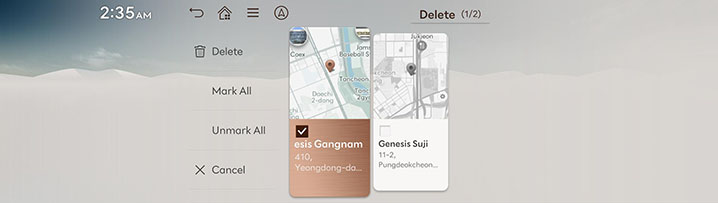

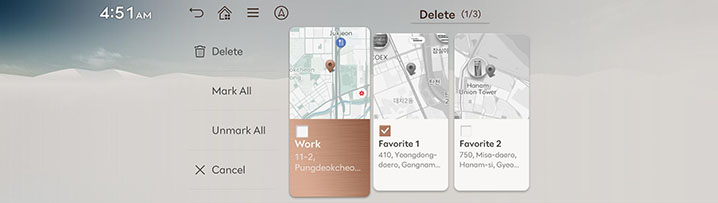

  1. Press [] > Destination > Saved Places > Favorites > [] > Delete on the map screen.

  2. Select the desired item, Press Delete.

    • Mark All: Selects all items.

    • Unmark All: Unmarks all items.

    • Cancel: Exits screen.

Saving/Editing/Deleting Saved Places

Saving a interested location enables convenient setting of destinations and editing/deleting registered locations.

Saving Saved Places

Saves frequently visited locations.

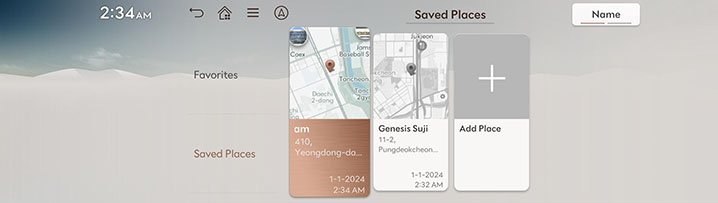

  1. Press [] > Destination > Saved Places > Saved Places on the map screen.

  2. Press Add Place on saved places screen.

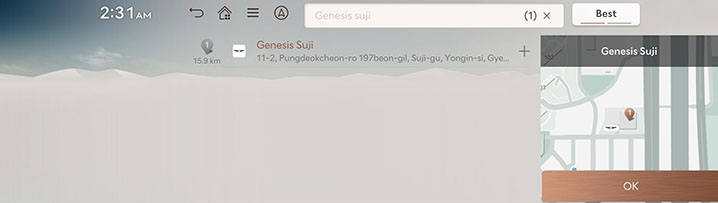

  3. Set a desired location by using search menu.

  4. When setting is completed, press OK.

Refer to "Setting Destinations by Saved Places" to set a registered location as a destination.

Editing Registered Saved Places

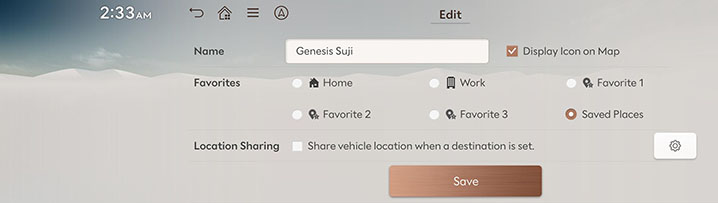

  1. Press [] > Destination > Saved Places > Saved Places on the map screen.

  2. Press [] > Edit on saved places screen.

  3. Press the item you want to edit.

  4. Select and edit a desired item.

    • Name: After editing the name, Press OK.

    • Display Icon on Map: Sets a symbol to specify on the map screen.

    • Favorites: Changes the address book.

    • Location Sharing: Sets the location sharing.

  5. Press Save.

Sorting Registered Saved Places

  1. Press [] > Destination > Saved Places > Saved Places on the map screen.

  2. Press [] > Name or Date to sort the list.

    • Name: Locations are sorted in alphabetical order.

    • Date: Locations are sorted in date order.

Deleting Registered Saved Places

  1. Press [] > Destination > Saved Places > Saved Places on the map screen.

  2. Press [] > Delete on saved places screen.

  3. Select the desired item, Press Delete.

    • Mark All: Selects all items.

    • Unmark All: Unmarks all items.

    • Cancel: Exits screen.
