Listening to radio

Activating DAB (If equipped)/FM or AM Mode

1. Press [RADIO] on the head unit. Or press [Radio] on the home screen.

The last listened mode among DAB (If equipped)/FM or AM plays.

2. Each pressing on [RADIO] on the head unit switches the mode in sequence of DAB (If equipped)/FM > AM > DAB (If equipped)/FM.
3. Select a radio frequency and listen to the radio.

Selecting a Radio Frequency

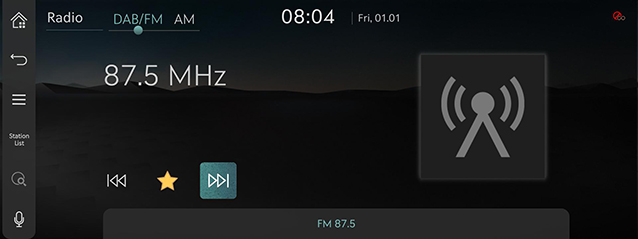

Manually Selecting a Frequency

Direct selection of a radio frequency is available.

• When you rotate [TUNE] on the front seat control key to up/down in DAB (If equipped)/FM mode, the station name is displayed in a different colour as a pre-searching function.
• Press [TUNE] on the front seat control key to select a frequency on controller in DAB (If equipped)/FM mode.
• When you rotate [TUNE] on the front seat control key to up/down in AM mode, Frequency is up or down by one level (AM : 9 kHz).

Automatically Selecting a Frequency

Automatic selection of a radio frequency is available.

In DAB (If equipped)/FM or AM mode, press [] > [Scan]/[Scan AM].

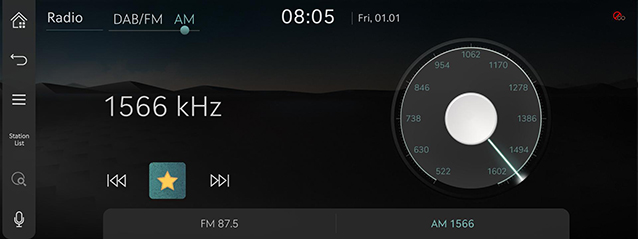

Selecting Frequency with Preset List

Listening the radio is available by selecting a station saved in preset list.

In DAB (If equipped)/FM or AM mode, press the preset list (specified by the dotted lines) where the desired station is saved or swipe the optical touch pad on steering wheel remote control to listen the desired station.

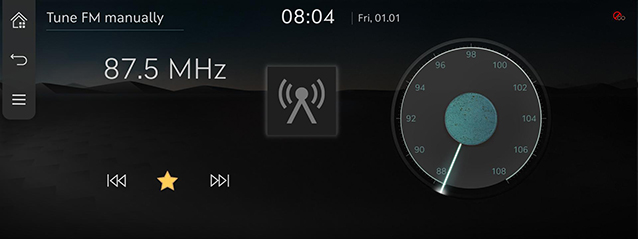

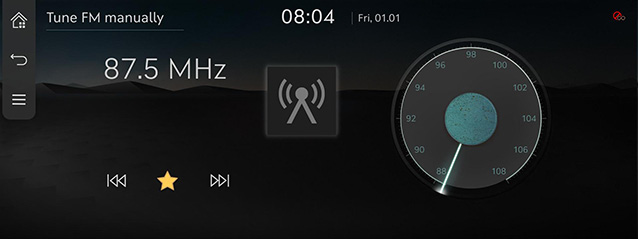

Tune FM manually

Rotate [TUNE] on the front seat control key to up/down.

On the DAB (If equipped)/FM mode, press [] > [Tune FM manually].

• Turn the station bar to the left/right to find the frequency that you want.
• Press [C]/[V].

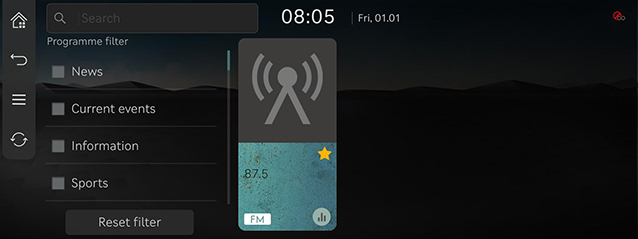

Viewing station list

May play a desired station by searching the list.

1. Press [] > [Station list] on the screen.

The list is displayed on the screen.

2. Select a desired station from the list screen.

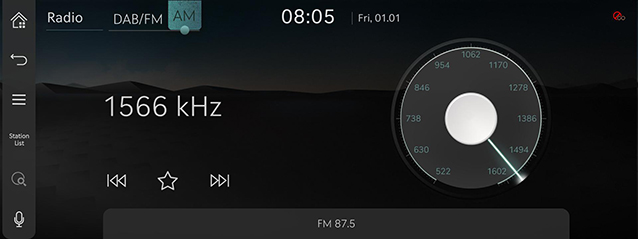

Saving Radio Frequency in Preset List

Saves the current frequency in a desired preset list.

1. Select a frequency desired to save on frequency display screen.

2. Press [K] to save the desired frequency.

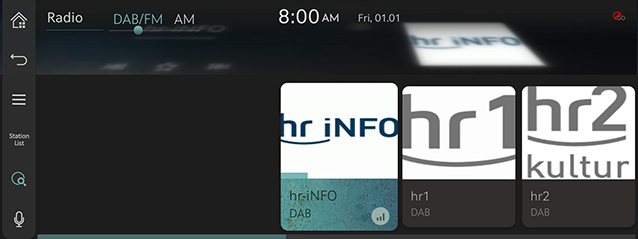

Scanning Radio Frequency

Each of frequencies of good receptions is received.

Press [] > [Scan]/[Scan AM] in DAB (If equipped)/FM or AM mode.

,Note

If you press [Stop Scan] during scanning on the radio screen, the last received frequency is received.

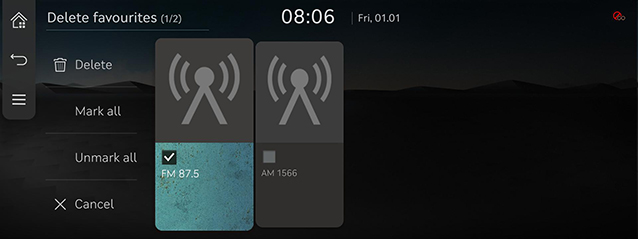

Deleting Presets

1. Press [] > [Delete favourites] in DAB (If equipped)/FM or AM mode.

2. Select the desired item, Press [Delete] > [Yes].

• [Mark All]: Selects all items.
• [Unmark All]: Unmarks all items.
• [Cancel]: Exits screen.

Radio noise control

1. Press [] > [Radio noise control] in DAB (If equipped)/FM mode.
2. For more details, refer to the "Sound settings".

TA on/off

When the TA (Traffic Announcement) function is selected, real-time traffic and guidance information is automatically received.

1. Press [] > [TA] in DAB (If equipped)/FM mode.
2. When traffic announcement is received, a pop-up message is displayed.

Regional

When the receiving signals from the current station become weak, the station switches to another station.

1. Press [] > [Regional] in DAB (If equipped)/FM mode.
2. Press [Regional] again to cancel the function.

DAB/FM switching (If equipped)

This function allows the current DAB broadcasting is disconnected, find the same FM broadcasting automatically.

When listening the FM radio, the system automatically switches to DAB when it finds the same DAB broadcasting.

1. Press [] > [DAB/FM switching] in DAB (If equipped)/FM mode.
2. Press [DAB/FM switching] again to cancel the function.

Sound settings

1. Press [] > [Sound settings] in DAB (If equipped)/FM or AM mode.
2. For more details, refer to the "Sound settings".
