Using Phone Projection Wirelessly

The images displayed on this system may differ from actual ones.

,Reference

To connect to Android Auto, go to [Device Connection Settings] > [Phone Projection Settings] > [Android Auto] and check if the [Enable Android Auto] checkbox is selected on the phone projection settings screen. Refer to "Phone projection settings" on the device connection settings screen.

1. Press [Setup] > [Device Connections] on the home screen. Or press [Menu] > [Device Connection Settings] on the home screen. The device connections settings screen is displayed.

2. Press the name of the device to connect. If the device to connect is not found, register the Bluetooth device by selecting [Add]. Press [Cancel] if desire not to register a new device.

• If you cannot connect an Android phone or iPhone, delete all registered devices from the phone and the vehicle system before re-registering the phone. Refer to the "Resolving phone projection connection errors".

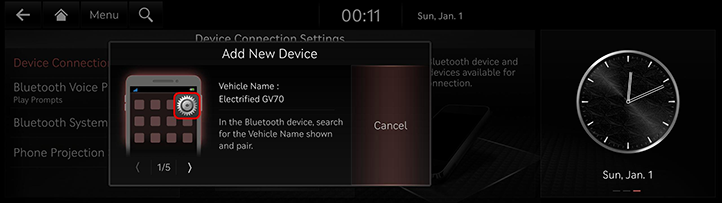

3. Search and select the vehicle name on Bluetooth device registration waiting screen.
4. Check certification no. and, authorize the registration on the Bluetooth device.
5. A message appears that requests for the permission to access the Bluetooth device.

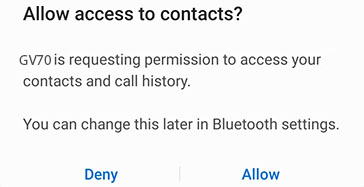

<Example of Bluetooth device screen>

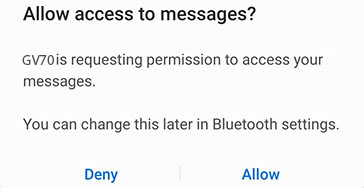

<Example of Bluetooth device screen>

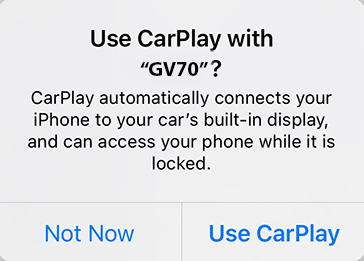

On iPhone

<Example of Bluetooth device screen>

6. If the Bluetooth device supports Android Auto or Apple CarPlay, a message appears asking you whether to connect the device. If you want to connect the device, press [Yes].

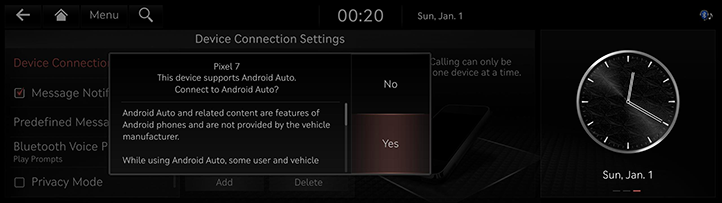

<Android Auto device connection screen>

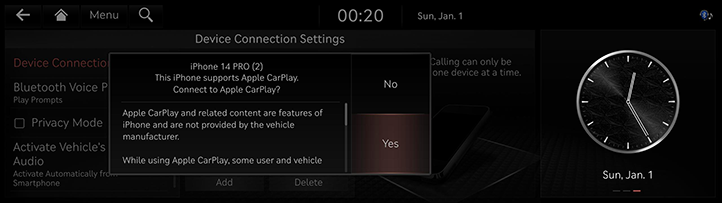

< Apple CarPlay device connection screen>

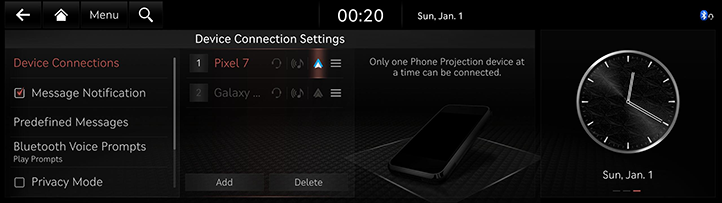

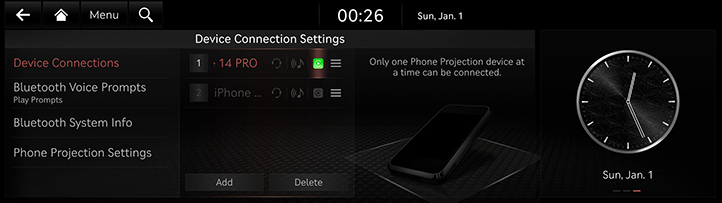

7. Once the connection is established, a phone projection icon appears on the connection screen.

<Android Auto device connection screen>

< Apple CarPlay device connection screen>

8. If you want to exit Apple CarPlay or Android Auto, disconnect the wireless connection on the device connection screen of the system.
