Activating Radio

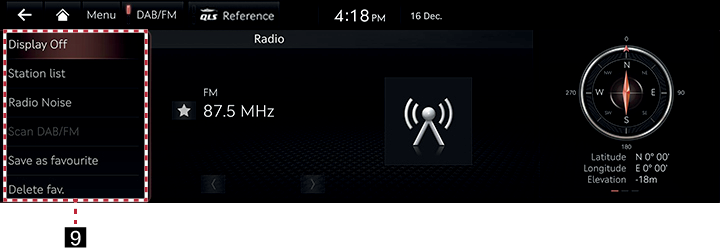

FM or AM Mode Screen Composition

1 a

Moves to home screen or the previous screen.

2 B

Moves to home screen.

3 Menu

Displays pop-up menu of each mode.

4 DAB/FM/AM

Selects the desired radio band by pressing [DAB/FM], [AM].

5 QLS (Quantum Logic Surround)

Shows sound modes.

6 Mode display

Shows the mode currently in play.

7 Favourite list

Shows radio frequency saved in favourite list.

8 Frequency

Shows the frequency of currently tuned station.

9 Display Off

Turns off the screen.

Station list

Moves to station list screen.

Radio Noise (FM only)

Selects the radio noise control option for better sound.

Scan DAB/FM/Scan AM

Each frequency of good reception is received for 5 seconds.

Save as favourite

Saves the current channel in a desired favourite List.

Delete fav.

Delete channel saved in favourite list.

Manual tune FM (FM only)

Manually tunes the frequency using the virtual dial on the screen.

Sound settings

Moves to sound setting screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.

Activating FM or AM Mode

1. Press [RADIO] on the head unit. Or press [Radio] on the home screen.

The last listened mode among FM or AM plays.

2. Each pressing on [RADIO] on the head unit switches the mode in sequence of FM > AM > FM. Or press [DAB/FM]/[AM] on the radio screen to select a desired mode.
3. Select a radio frequency and listen to the radio.

Selecting a Radio Frequency

Manually Selecting a Frequency

Direct selection of a radio frequency is available.

Frequency is up or down by one level (FM: 0.1 MHz, AM: 9 KHz).

Rotate [TUNE] on the front seat control key to up/down to select a frequency on controller in AM mode, or press [Menu] > [Manual tune FM] and use virtul dial on the screen in FM mode.

Automatically Selecting a Frequency

Automatic selection of a radio frequency is available.

In FM or AM mode, pressing [Menu] > [Scan DAB/FM]/[Scan AM] or releasing after pressing and holding [S/W] on steering wheel remote control tunes to stations of good receptions by increasing/decreasing the frequency.

Selecting Frequency with Preset List

Listening the radio is available by selecting a station saved in favourite List.

In FM or AM mode, press the favourite list (specified by the dotted lines) where the desired station is saved or press [S/W] on steering wheel remote control to listen the desired station.

Viewing Station List

May play a desired station by searching the list.

1. Press [Menu] > [Station list] on the screen. The list is displayed on the screen.

2. Select a desired station from the list screen.

Saving Radio Frequency as Favourite

Saves the current frequency in a desired favourite list.

1. Select a frequency desired to save on the frequency display screen.

2. Press [Menu] > [Save as Favourite]. Saves the frequency as favourite.

Scanning Radio Frequency

Each of frequencies of good receptions is received.

Press [Menu] > [Scan DAB/FM]/[Scan AM] in radio mode.

,NOTE

Press [Menu] > [Stop Scan] during scanning on the radio screen, the radio of the frequency selected when the scanning stopped is played.

Deleting Favoutites

1. Press [Menu] > [Delete fav.] in radio mode.

2. Select the desired item, press [Delete] > [Yes].

• [Mark All]: Selects all items.
• [Unmark All]: Unmarks all items.
• [Cancel]: Exits screen.

Sound settings

1. Press [Menu] > [Sound settings] in radio mode.
2. For more details, refer to the "Sound settings".
