System

Vehicle setting

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Move to vehicle setting screen

On the home screen, press Setup > Vehicle. The vehicle settings screen is displayed.

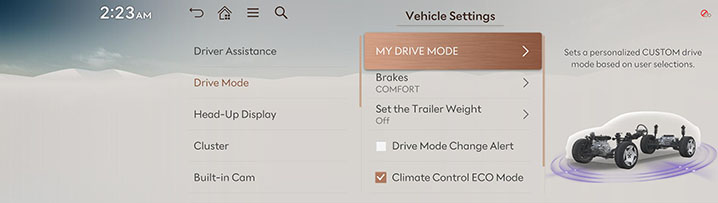

Drive mode

  1. On the vehicle settings screen, press Drive Mode.

  2. Select a desired items.

    • MY DRIVE MODE: Selects the optimal mode through system-specific mode selection.

    • Brakes: Selects the brake feel and responsiveness.

    • Set the Trailer Weight (if equipped): This is a function that maintains driving performance and predicts the amount of change for the driving distance while connecting the trailer.

    • Drive Mode Change Alert (if equipped): Displays the changed drive mode together with the vehicle image.

    • Climate Control ECO Mode(if equipped): Reduces energy consumption by operating cooling and heating on low.

    • Coasting: In ECO mode, if possible, the engine and transmission are separated to save fuel.

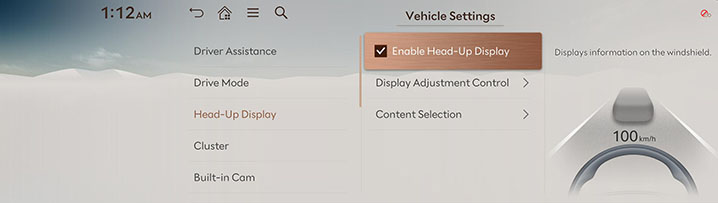

Head-Up Display

  1. On the vehicle settings screen, press Head-Up Display.

  2. Select a desired items.

    • Enable Head-Up Display: Displays information on the windshield.

    • Display Adjustment Control: Controls the display height, rotation and brightness to desired values.

    • Content Selection: Sets the display for Turn by Turn, Traffic Signs, Driving Convenience Info, Blind-Spot Safety Info, Radio/Media Info, Call Information and Voice Recognition Info.

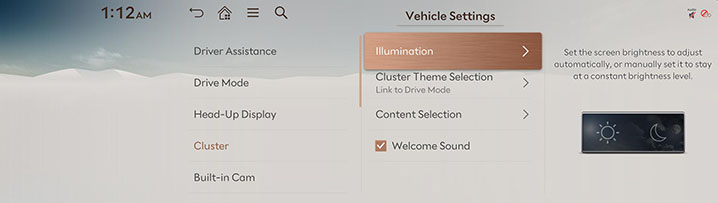

Cluster

  1. Press Cluster on the vehicle settings screen.

  2. Select a desired items.

    • Illumination: Set screen brightness to adjust automatically, or manually set it to maintain a brightness level.

    • Cluster Theme Selection: Selects a cluster theme.

    • Content Selection: Select information to display on cluster.

    • Welcome Sound: Provides an audible tone when the cluster turns on or off.

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier. If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.

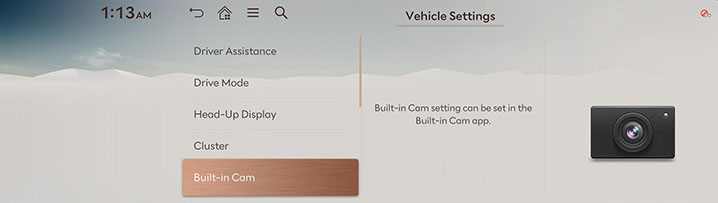

Built-in Cam

Built-in cam settings can be configured after entering the built-in cam.

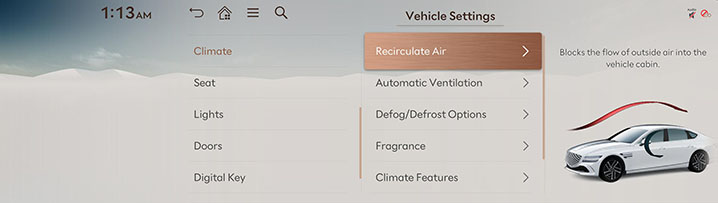

Climate

  1. Press Climate on the vehicle settings screen.

  2. Select a desired items.

    • Recirculate Air: Blocks the flow of outside air into the vehicle cabin.

    • Automatic Ventilation: Automatically switches the ventilation system to the fresh air mode after an extended use of recirculated air.

    • Defog/Defrost Options: Directs air to the windshield to reduce moisture on the windshield glass.

    • Fragrance: Select the intensity and type of indoor scent.

    • Climate Features: Activates the convenience functions for climate control.

    • Warmer/Ventilation Features: Activates the Convenience functions for warmer/Ventilation.

Seats

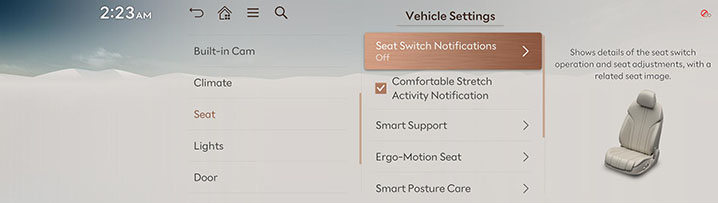

  1. Press Seat on the vehicle settings screen.

  2. Select a desired items.

    • Seat Switch Notifications: Details of the Seat Switch Control and Position change are shown with a seat image.

    • Ergo-Motion Active Alert (if equipped): When the ergo-motion activates, operation information is shown with the seat image.

    • Comfortable Stretch Activity Notification (if equipped): When the comfort stretching activates, operation information is shown with the seat image.

    • Smart Support: Increases seat bolster support based on Drive Mode and speed.

    • Ergo-Motion Seat: Reduce fatigue and helps to improve the overall driving experience.

    • Smart Posture Care: Recommends a posture fitting the driver's body type and provides a clinical analysis for back health.

    • Warmer/Ventilation Features: Activates the Convenience functions for warmer/Ventilation.

    • Seating Easy Access: Moves the steering wheel/seats to provide easier exit/entry for the driver and vehicle passengers.

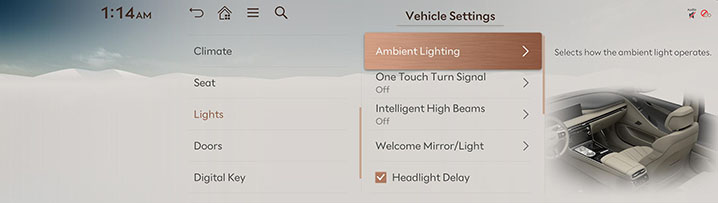

Lights

  1. Press Lights on the vehicle settings screen.

  2. Select a desired items.

    • Ambient Lighting: Selects how the ambient light operates.

    • One Touch Turn Signal: Selects the number of times the turn signal blinks when the turn signal lever is moved slightly.

    • Intelligent High Beams: Sets the vehicle speed at which the intelligent high beams system activates, or disables the feature.

    • Welcome Mirror/Light: Selects the condition when the outside mirrors will unfold and the door handle light will turn on automatically.

    • Headlight Delay: When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.

    • Lighting Pattern: Selects a lighting pattern. The selected pattern will be applied upon the next ignition.

    • High Beam Assist: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

    • Set Daytime Lighting: External lighting and indoor button lighting can be turned on continuously even during the day.

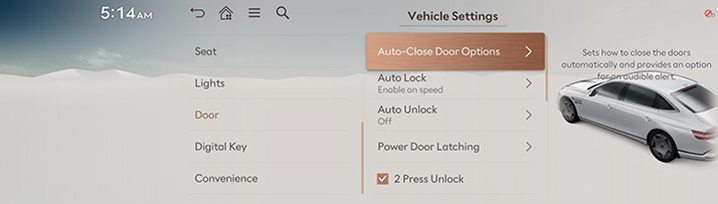

Door

  1. On the vehicle settings screen, press Door.

  2. Select a desired items.

    • Auto-Close Door Options: Sets how to close doors automatically.

    • Auto Lock: Selects the condition when all doors will lock automatically.

    • Auto Unlock: Selects the condition when all doors will unlock automatically.

    • Power Door Latching: Selects doors for which you don’t want to use the ghost door closing function.

    • 2 Press Unlock: Unlocks all doors when the unlock button on the smart key is pressed twice.

    • Power Trunk: Opens and closes the trunk automatically using the power trunk button.

    • Power Trunk Opening Speed: Sets the speed of trunk opening.

    • Power Trunk Opening Height: Sets the height of the opened trunk.

    • Smart Trunk: Opens the trunk automatically when approaching with the smart key.

    • Remote Window Control: You can set or release remote window control.

Digital key

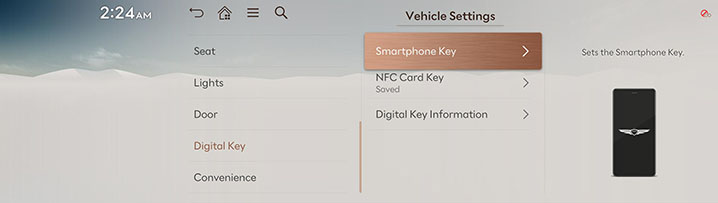

  1. On the vehicle settings screen, press Digital Key.

  2. Select a desired items.

    • Smartphone Key: Register or delete the smartphone key.

    • NFC Card Key: Register or delete the NFC card key.

    • Digital Key Information: Shows the serial number of the digital key.

Convenience

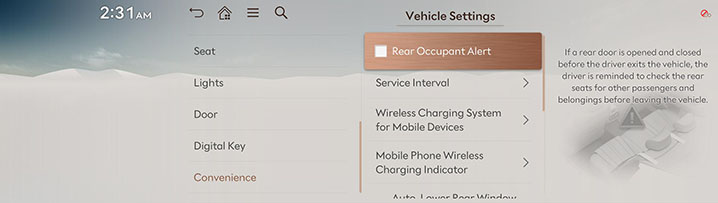

  1. Press Convenience on the vehicle settings screen.

  2. Select a desired items.

    • Rear Occupant Alert: When the door on the rear of the vehicle opens and closes, it notifies the driver to check the rear seat passenger and belongings when getting off.

    • Service Interval: Shows the remaining distance and time until the set service check time and notifies when it is time for an inspection.

    • Oil Change Reminder (if equipped): Displays the remaining lifespan of the engine oil. After changing the oil, be sure to reset the remaining oil life.

    • Wireless Charging System for Mobile Devices: Enables the wireless charging pad to be used with compatible devices.

    • Mobile Phone Wireless Charging Indicator: Select the type where the indicator is displayed when charging the phone wirelessly through a wireless charger.

    • Auto. Lower Rear Window Shade in (R): Automatically lowers the rear curtain when you shift into reverse.

    • Air Suspension Comfort Access (if equipped): Automatically adjusts the vehicle height when getting on or off the vehicle.

    • Advanced Anti-Theft: When movement is detected inside the vehicle after the vehicle doors have been locked, a warning sound is output.

    • Healthcare: Sets the function for measuring the driver's heartbeat.
