Name and Function of each Component

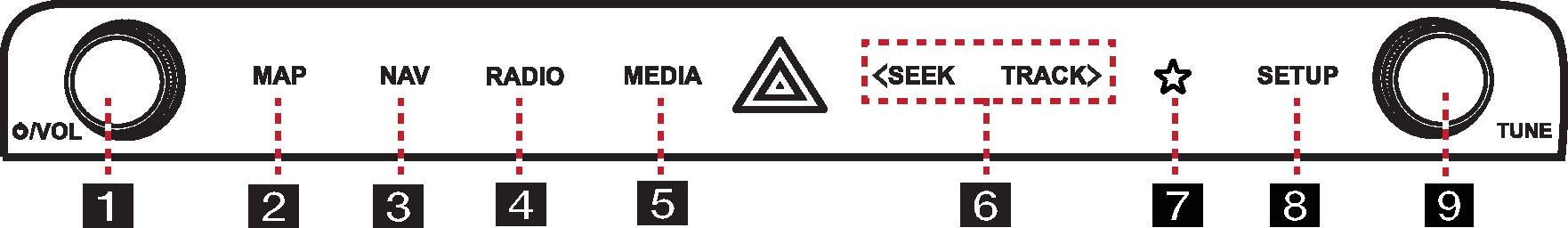

Head Unit

The image of this product may be different from the actual product.

  1. a/VOL Button

    • When the power is off, pressing the button turns the power on.

    • Press briefly to turn media/radio on/off.

    • Press and hold to turn on or off the display and the sound.

    • Turn the button to the left or right to adjust the volume.

  2. MAP button

    • Moves to the map screen showing the current position of vehicle.

    • When the destination is set, the voice navigation starts on the map screen.

  3. NAV button

    • Moves to destination search screen.

    • Press and hold to move to the destination search screen.

  4. RADIO button

    • Activates radio mode.

    • Each button press changes the mode in sequence of FM > AM > DMB > FM.

    • Press and hold to move to the media selection screen.

  5. MEDIA button

    • Press this button to switch between the media selection screen and media play screen.

    • Press and hold to move to the media selection screen.

    • When playing the background media, each time the button is pressed, the connected media is switched in sequence.

  6. A SEEK/TRACK D button

    • When it is pressed shortly

      • FM/AM: Plays the previous or next channel.

      • Media/Voice Memo: Plays the previous or next file.

      • DMB: Plays the previous channel or next channel.

    • When it is pressed and held

      • FM/AM: Changes the frequency until the button is released, then plays the frequency when released.

      • Media/Voice Memo: Rewinds or fast-forwards the file.

      • DMB: Changes the channel until the button is released.

  7. m (Custom) button

    • User may select and use a desired feature with this button.

    • Press and hold to move to the custom button settings screen.

  8. SETUP button

    • Moves to the settings screen.

    • Press and hold to move to the general settings screen.

  9. TUNE Button

    • Radio: Turning right or left to increase/decrease the frequency by one step (FM: 0.1 MHz, AM: 9 KHz).

    • Media/Voice memo: Search for files by turning them left and right. And, when the name of desired file is displayed, press the button to play the file.

    • DMB: Rotate it left and right to search for channels. When the desired channel is displayed, press the button to play the channel.

    • Navigation: Rotate left or right to change the map scale on the map screen.

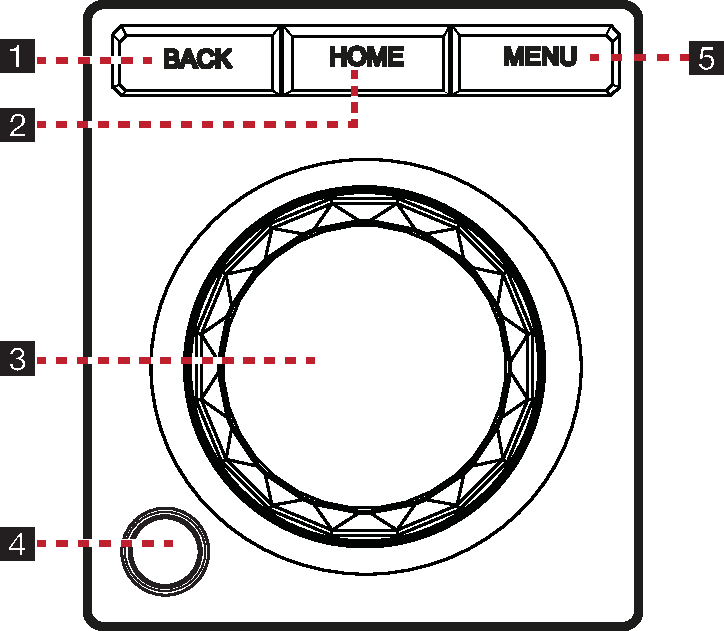

Front seat control key

The image of this product may be different from the actual product.

  1. BACK Button

    • Press briefly to move to the previous screen.

    • Press and hold to go to the home screen.

  2. HOME Button

    • Press briefly to go to the home screen.

    • Press and hold to go to the map screen.

  3. Controller

    • Use controller to move and select the menu as well as handwriting input.

    • Use controller to change the map scale on the map screen.

  4. Finger scan sensor

    Use sensor to select the user profile, approve CarPay payments, turn off the ballet mode, etc.

  5. MENU Button

    Press briefly to displays a pop-up menu for each mode.

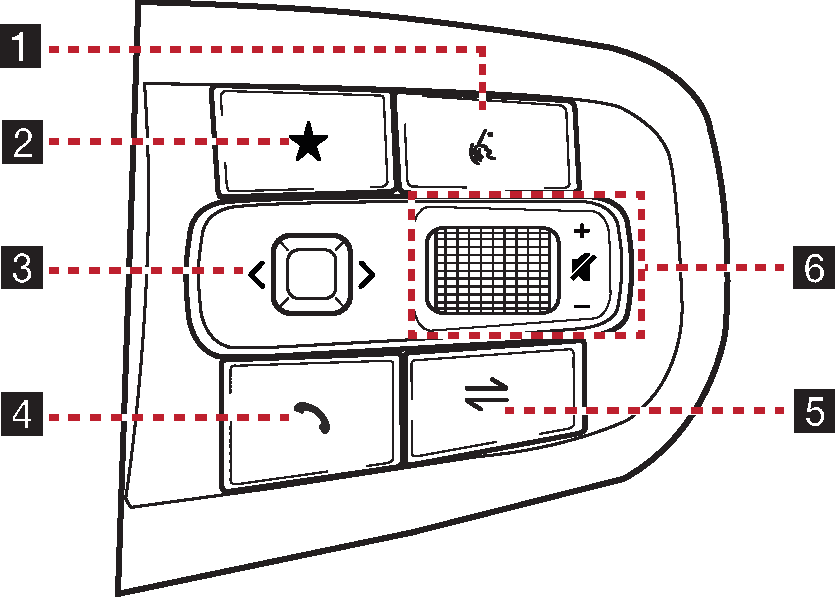

Steering wheel remote control (Right)

The image of this product may be different from the actual product.

  1. k (Voice recognition) button

    • When it is pressed shortly

      • Activates voice recognition mode.

    • When it is pressed and held

      • Activates voice recognition mode of the connected phone projection device.

      • Press and hold the button to cancel voice recognition.

  2. n (Custom) button

    • User may select and use a desired feature with this button.

    • Press and hold to move to the custom button settings screen.

  3. Optical touch pad

    You can use AVN(Audio/Video/Navigation) control if the search mode in the split screen of the cluster is not.

    • When it is swiped

      • Radio: Moves to the previous or next frequency saved.

      • Media/Voice Memo: Plays the previous or next file.

      • DMB: Plays the previous channel or next channel.

    • When it is dragged

      • Radio: Changes the frequency until you lift your finger, and then search for the frequency.

      • Media/Voice Memo: Rewinds or fast-forwards the file. (Except for the mode of Sounds of nature)

      • DMB: Changes the channel until you lift your finger.

  4. s (Bluetooth call) button

    When it is pressed shortly

    • Searches new Bluetooth phone or connects the registered phone if Bluetooth is not connected.

    • If Bluetooth is connected,

      • If selected in the call waiting screen, displays call history screen.

      • If selected in call history screen, makes a call to last called number.

      • If selected in phone entrance screen, enters the last call number.

      • If selected in phone reception alert screen, answers the phone call.

      • If selected in calling, ends the call.

    When it is pressed and held

    • When Bluetooth is connected, if selected in Bluetooth hand free waiting mode, redials.

    • If selected in calling, ends the call.

  5. Mode Button (Steering Wheel)

    • When it is pressed shortly

      • Plays the selected mode from FM, AM, DMB, USB music, USB video, Sounds of nature, Phone projection, Music streaming or Bluetooth audio.

    • When it is pressed and held

      • Moves to the MODE Button (Steering wheel) settings screen.

  6. K / L tumbler button

    Slide the tumbler up/down to adjust the volume.

    q (MUTE) button

    Press the tumbler to turn mute on/off.

Check how to operate the optical touch pad.

  • Swipe: Swipe the optical touch pad to up/down/left/right with your finger.

  • Drag: Stop at the edge of the optical touch pad without passing it completely with your finger.

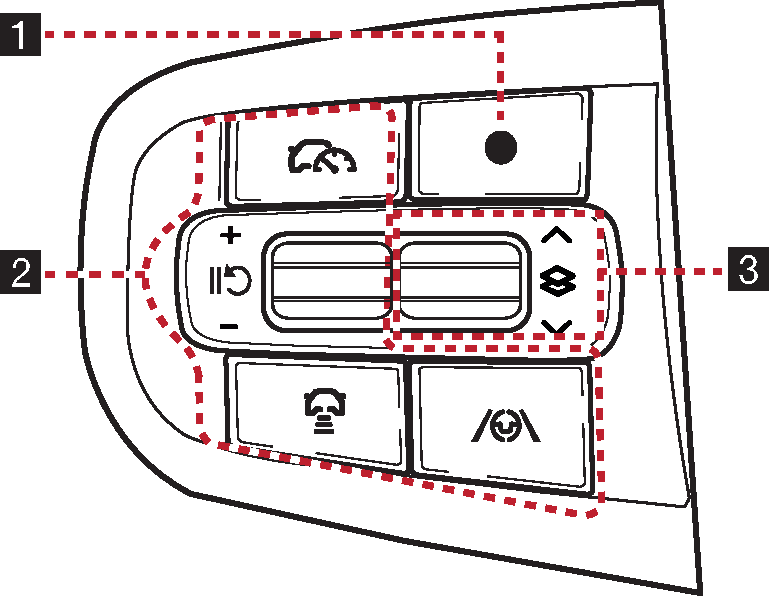

Steering wheel remote control (Left)

The image of this product may be different from the actual product.

  1. Custom Button

    • User may select and use a desired feature with this button.

    • Press and hold to move to the custom button settings screen.

  2. Button

    For details, refer to the vehicle instruction manual.

  3. Tumbler button

    Press or slide up/down the button to change the gauge style and view mode displayed on the cluster screen.
