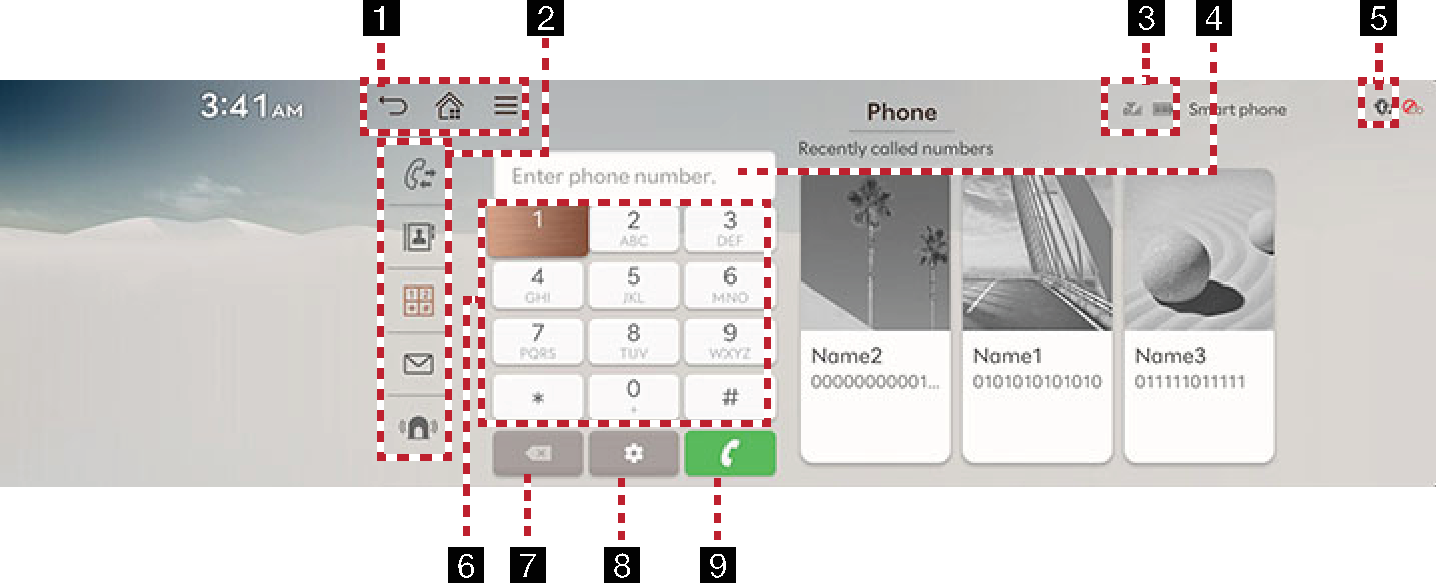

Using dial screen

Press [] on the screen.

1.

   Moves to home screen.



   It moves to the home screen or a previous screen.



   Displays pop-up menu of each mode.



   Displays the change device pop-up. (Displays the icon when there is more than one connected device.)

2. (Recent calls)

   Moves to recent calls screen.

   (Contacts)

   Moves to contacts screen.

   (Dial pad screen)

   Moves to Bluetooth phone dial pad screen.

   (Message)

   Moves to the message screen.

   (Emergency calls)

   Moves to the emergency calls screen.

3. (Reception level icon)

   The reception level (sensitivity) of the calling area is specified in the bar graph.

   (Mobile battery icon)

   Specifies the remaining battery of mobile phone.

4. Number entrance window

   Opens phone number entrance window.

5. (Bluetooth connection icon)

   Shows the connection status between Bluetooth phone and the head unit.

   When the phone is connected and the phone call is made, Bluetooth Icon () switches to Handset Icon ().

6. Dial pad

   Enter the phone number to call. The entered number is displayed on the number entrance window.

7. (Delete)

   Deletes the entered phone number.

8. (Setting)

   Moves to Bluetooth settings screen.

9. (Call)

   If there is a registered phone number, the call is connected. If there is no registered phone no., the most recent call number is entered.
