Start

Basic controls

Turning the system on

The images displayed on this system may differ from actual ones.

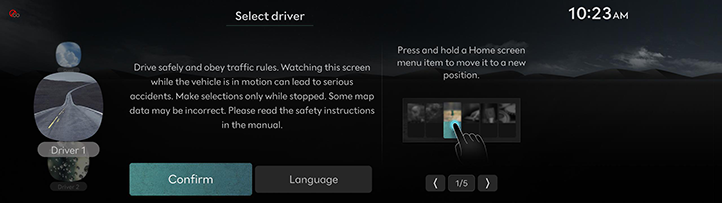

  1. Press START/STOP button. Once the system is turned on, the booting process will start and the safety warning page is displayed.

    • Press Language to change the language of the system display.

    • Press Driver 1, Driver 2 or Guest to change the profile of the system.

  2. Press Confirm.

  • You cannot operate the system while it is booting up.

  • It may take some time for all of the features of the system to boot up.

Turning the system off

Press and hold a/VOL the wheel on the front seat control key.

To turn the system on again, press a/VOL the wheel on the front seat control key.

Check the volume when turning on the system. Before turning on the system, adjust the volume to a reasonable level.

AV on/off or volume adjustment

AV on/off

Press the a/VOL wheel button on the front seat control key to turn the AV on/off.

Adjusting the volume

Turn the a/VOL wheel button on the front seat control key up/down to adjust the volume.

  • You can individually set the volume for each source (radio, media, voice recognition, bluetooth) by adjusting the volume knob.

  • The set volume is automatically saved and if you change volume, it changes to the previously set volume.

  • You can adjust the volume up to 75 steps. It is possible to the detailed set from low to high volume.

Resettings the system

This feature is used to reset the system in the occurrence of an unforeseen error or problem.

  1. After turning the vehicle off, press the start button once without pressing brake pedal.

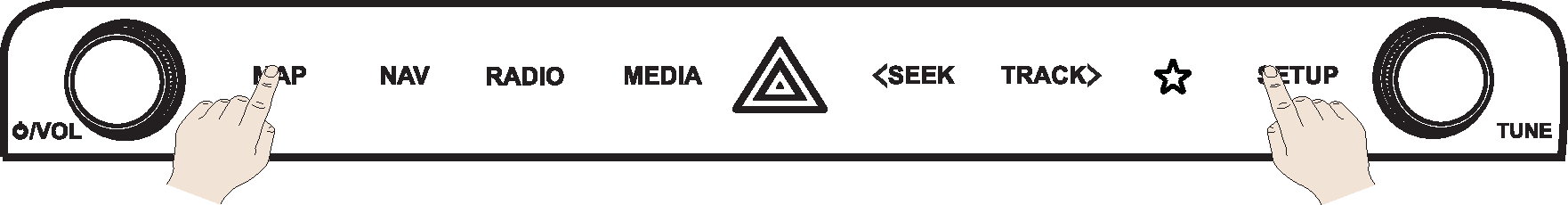

  2. Press and hold MAP and SETUP on the head unit for 5 seconds to reset the system.

Using controller and touchpad

Rotate controller to the left/right or use touchpad to switch or select the menu.

Controller

Details

Turn the controller clockwise/counterclockwise to move the list in the menu.

Operate zoom in/zoom out on the map screen.

Swipe up/down/left/right on touchpad to switch the menu.

Press touchpad to select the menu.

Enter character through handwriting input on a specific screen.

Push the controller up/down/left/right/diagonal to move the menu and map location.

Push and hold the controller to scroll the location on the map.

How to Use Touch Screen

Press the desired menu on the screen to select a menu.

If you touch the screen while driving, the attention may be scattered and cause a traffic accident. For safety, please use after stopping.

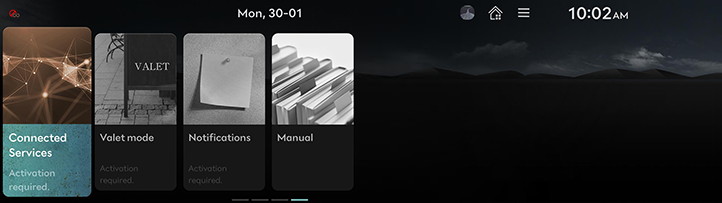

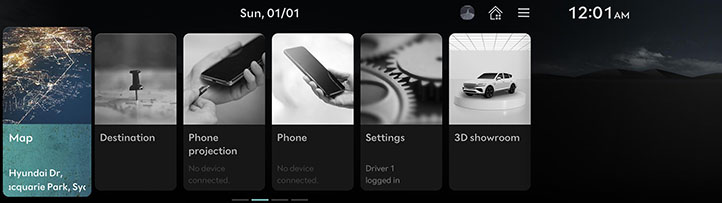

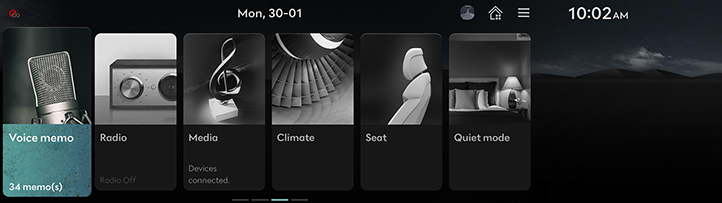

Basic Controls of HOME Screen

The images displayed on this system may differ from actual ones.

  1. Press HOME on the front seat control key or press []. The home screen opens.

  2. Press the desired menu on the home screen.

  3. Follow-up controls are available for the selected menu.

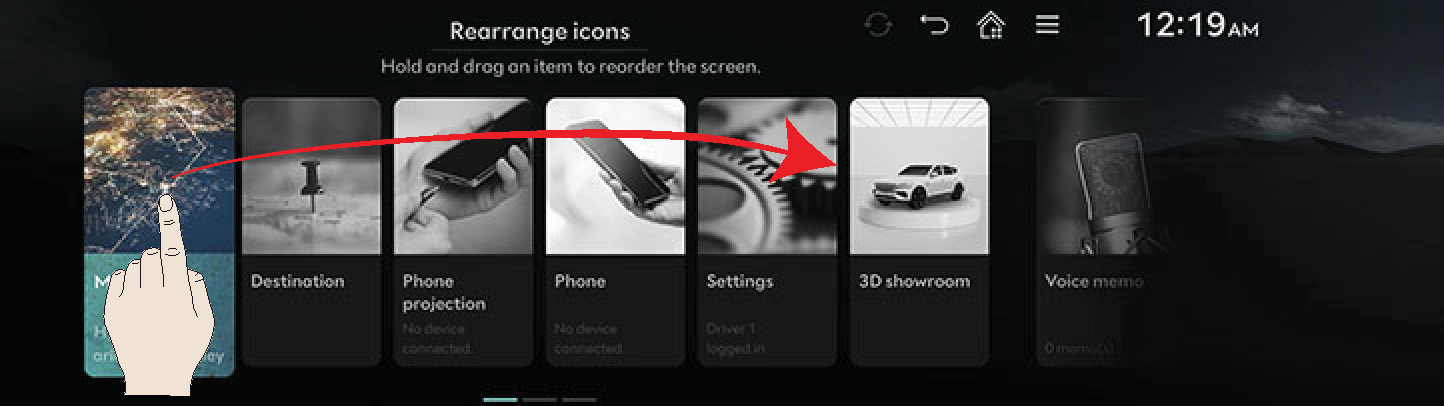

Editing HOME Screen

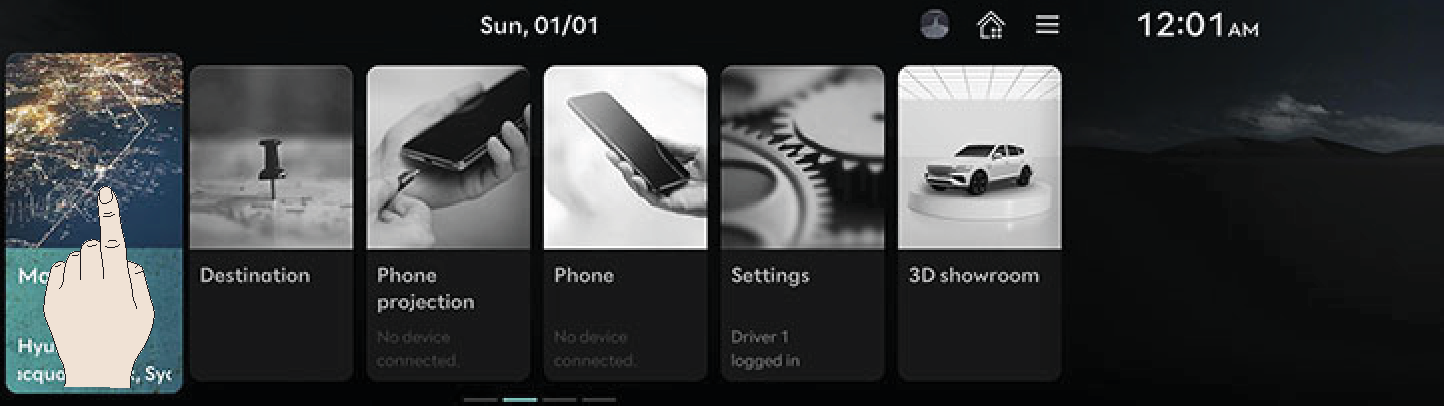

Press and hold the menu icon on the home screen to change the location.

  1. Press and hold the menu icon on the home screen.

  2. Press and hold the icon and drop the icon where you want it.

  3. Press [].
