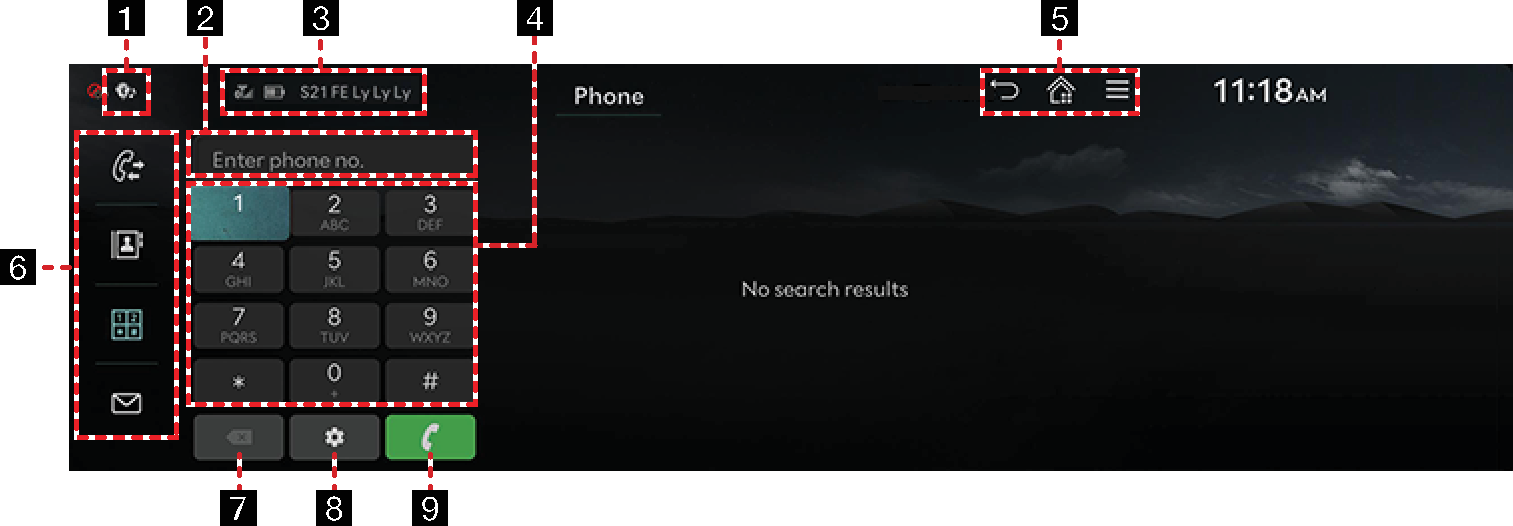

Using dial screen

Press Phone > [] on the home screen.

1. (Bluetooth connection icon)

   Shows the connection status between Bluetooth phone and the head unit.

   When the phone is connected and the phone call is made, Bluetooth Icon () switches to Handset Icon ()

2. Number entrance window

   Enter phone number or initial letter.

3. (Reception level icon)

   The reception level (sensitivity) of the calling area is specified in the bar graph.

   (Mobile battery icon)

   Specifies the remaining battery of mobile phone.

   Device Name

   Displays the name of the connected device.

4. Dial pad

   Enter the phone number to call. The entered number is displayed on the number entrance window.

5. (Back)

   Switches to the home screen or the previous screen.

   (Home)

   Moves to the home screen.

   (Menu)

   Displays popup menu of each mode.

   (Change device)

   Displays the change device pop-up. (Displays the icon when there is more than one connected device.)

6. (Recent calls)

   Moves to recent calls screen.

   (Contacts)

   Moves to contacts screen.

   (Dial pad screen)

   Moves to Bluetooth phone dial pad screen.

   (Message)

   Moves to message screen.

7. (Delete)

   Deletes the entered phone no.

8. (Setting)

   Moves to Bluetooth Setting Screen.

9. (Call)

   If there is a registered phone no., the call is connected. If there is no registered phone no., the most recent call number is entered.
