Others

Climate

The image of this product may be different from the actual product.

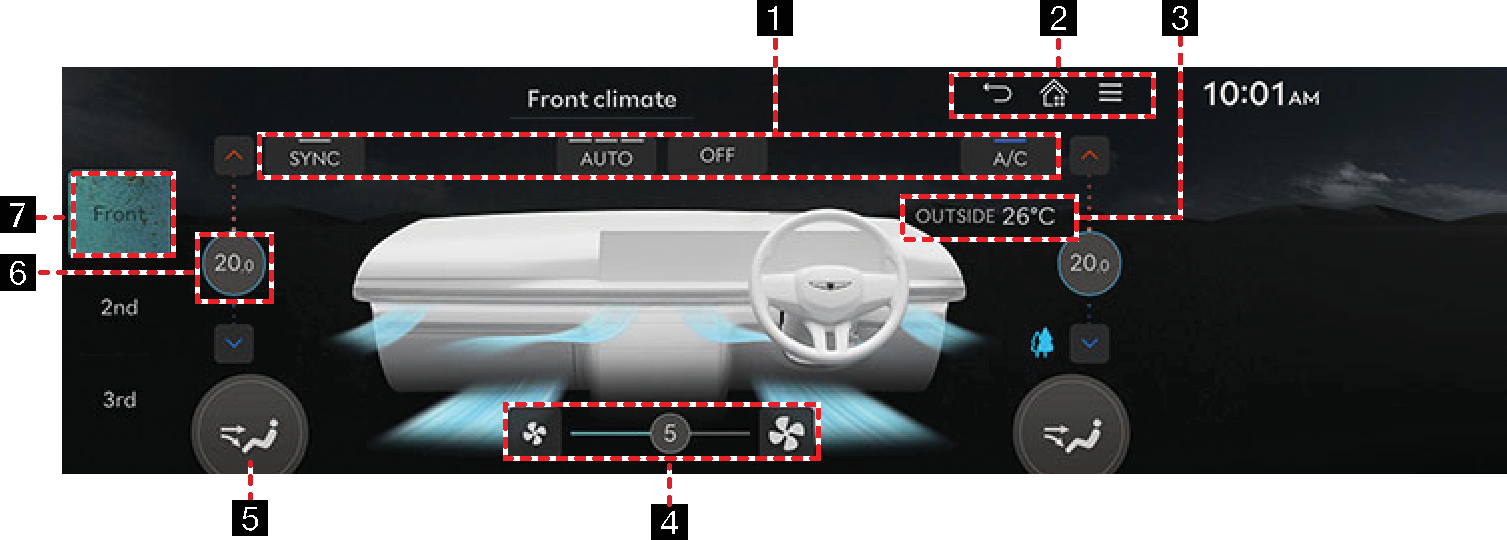

Operating Climate

Press Climate on the home screen.

  1. SYNC

    When the SYNC is active, passenger seat and driver seat are synchronized.

    AUTO

    The air cooling and heating are automatically activated according to the set temperature.

    OFF

    Turns off the climate function.

    A/C

    When the A/C is active, air conditioner is operated for vehicle cooling.

  2. Moves to the home screen or the previous screen.

    Moves to the home screen.

    It displays climate menu.

  3. Outside Temperature

    It displays the current temperature outside the vehicle.

  4. Blower Level

    Sets the blower speed.

  5. Airflow Direction Setting

    Changes the airflow position to up/down.

  6. Front Seat Set Temperature

    It sets the set temperature of the front seat.

  7. Front Seat Climate Control

    You can set the temperature and airflow of the climate control operating in the front seat.

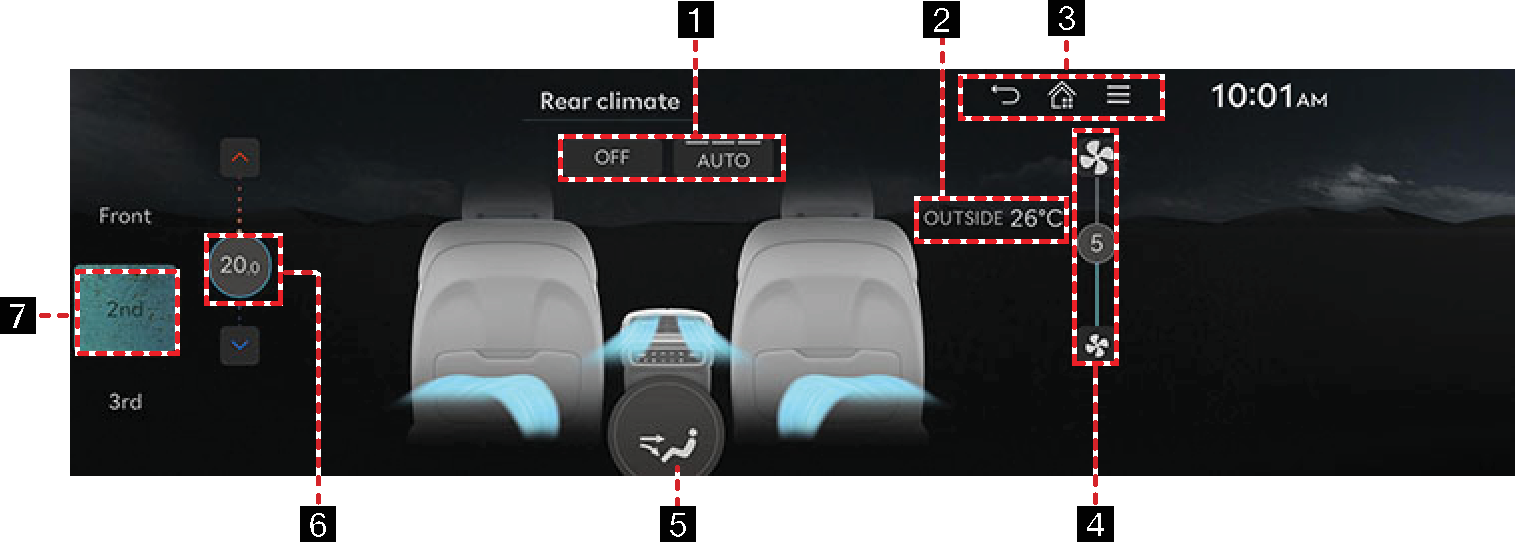

Adjusting 2nd Row Rear Seat Climate

Powers on or off of the climate device of the 2nd row rear seat.

On the climate screen, select the desired rear seat climate row.

  1. OFF

    Turns off the climate function.

    AUTO

    The air cooling and heating are automatically activated according to the set temperature.

  2. Outside Temperature

    It displays the current temperature outside the vehicle.

  3. Moves to the home screen or the previous screen.

    Moves to the home screen.

    It displays climate menu.

  4. Blower Level

    Sets the blower speed.

  5. Airflow Direction Setting

    Changes the airflow position to up/down.

  6. 2nd Row Rear Seat Temperature Setting

    Sets the temperature for the designated rear seat.

  7. 2nd Row Rear Seat Climate Control

    You can set the temperature and airflow of the climate control operating in the 2nd row rear seat.

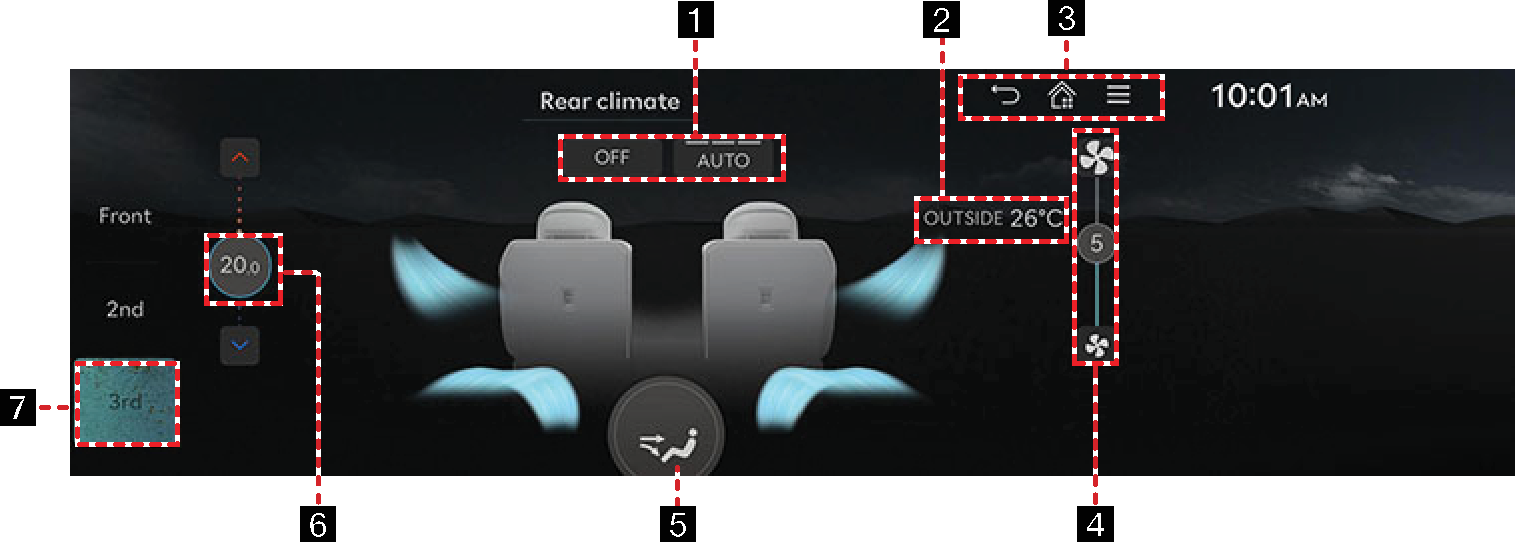

Adjusting 3rd Row Rear Seat Climate

Powers on or off of the climate device of the 3rd row rear seat.

On the climate screen, select the desired rear seat climate row.

  1. OFF

    Turns off the climate function.

    AUTO

    The air cooling and heating are automatically activated according to the set temperature.

  2. Outside Temperature

    It displays the current temperature outside the vehicle.

  3. Moves to the home screen or the previous screen.

    Moves to the home screen.

    It displays climate menu.

  4. Blower Level

    Sets the blower speed.

  5. Airflow Direction Setting

    Changes the airflow position to up/down.

  6. 3rd Row Rear Seat Temperature Setting

    Sets the temperature for the designated rear seat.

  7. 3rd Row Rear Seat Climate Control

    You can set the temperature and airflow of the climate control operating in the 3rd row rear seat.
