Vehicle Settings

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

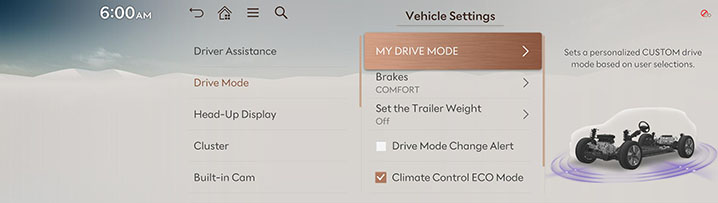

Drive Mode

1. Press Drive Mode on the vehicle settings screen.



2. Select the desired items.

   • MY DRIVE MODE: Selects the optimal mode through system-specific mode selection.

   • Brakes: Selects the brake feel and responsiveness.

   • Set the Trailer Weight (if equipped): This is a function that maintains driving performance and predicts the amount of change for the driving distance while connecting the trailer.

   • Drive Mode Change Alert (if equipped): Displays the changed drive mode together with the vehicle image.

   • Climate Control ECO Mode(if equipped): Reduces energy consumption by operating cooling and heating on low.

   • Coasting (if equipped): In ECO mode, if possible, the engine and transmission are separated to save fuel.

   • VGS (if equipped): Provides the sensation of shifting gears for an enhanced driving experience that is usually not found in electric vehicles. VGS is unavailable in ECO mode. Some driving sounds are unavailable when VGS is activated.

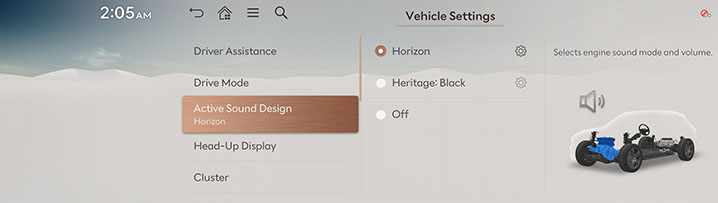

Active Sound Design

1. Press Active Sound Design on the vehicle settings screen.



2. Select the desired items.

   • Horizon (if equipped): Provides futuristic sounds of an EV.

   • Heritage: Black (if equipped): Provides engine sounds.

   • OFF (if equipped): Ends EV sounds.

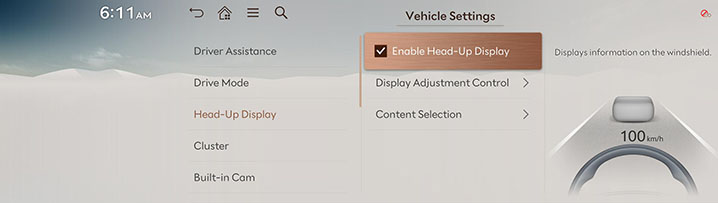

Head-Up Display

1. On the vehicle settings screen, press Head-Up Display.



2. Select the desired items.

   • Enable Head-Up Display: Displays information on the windshield.

   • Display Adjustment Control: Controls the display height, rotation and brightness to desired values.

   • Content Selection: Sets the display for Turn by Turn, Traffic Signs, Driving Convenience Info, Blind-Spot Safety Info, Radio/Media Info, Call Information and Voice Recognition Info.

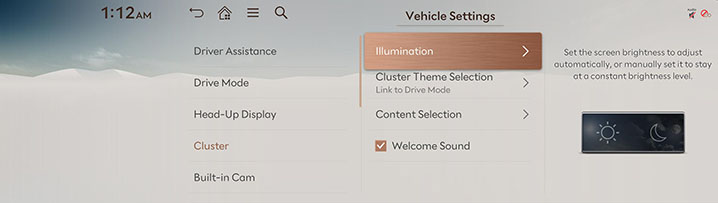

Cluster

1. Press Cluster on the vehicle settings screen.



2. Select the desired items.

   • Illumination: Set screen brightness to adjust automatically, or manually set it to maintain a brightness level.

   • Cluster Theme Selection: Selects a cluster theme.

   • Reset AUTO STOP Timer (if equipped): Select information to link with the AUTO STOP accumulated time display.

   • Content Selection: Select information to display on cluster.

   • Welcome Sound: Provides an audible tone when the cluster turns on or off.

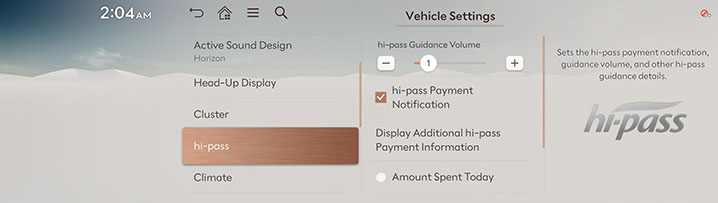

Hi-Pass

1. Press hi-pass on the vehicle settings screen.



2. Select the desired items.

   • hi-pass Guidance Volume: Sets the Hi-Pass payment notification, guide volume, and guide method.

   • hi-pass Payment Notification: Displays payment information on the screen when passing the Hi-Pass.

   • Display Additional hi-pass Payment Information: Additionally guides the use amount of today or this month after guiding the payment amount when passing the Hi-Pass.

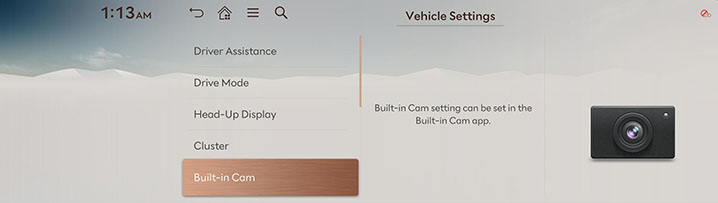

Built-in Cam

Built-in cam settings can be configured after entering the built-in cam.

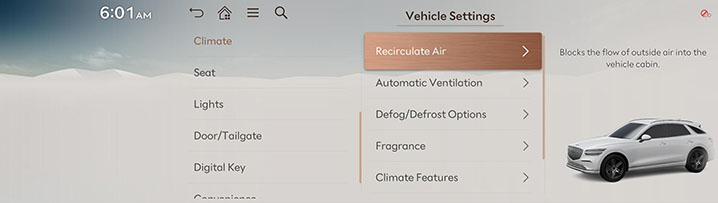

Climate

1. Press Climate on the vehicle settings screen.



2. Select the desired items.

   • Recirculate Air: Blocks the flow of outside air into the vehicle cabin.

   • Automatic Ventilation: Automatically switches the ventilation system to the fresh air mode after an extended use of recirculated air.

   • Defog/Defrost Options: Directs air to the windshield to reduce moisture on the windshield glass.

   • Fragrance: Select the intensity and type of indoor scent.

   • Climate Features: Activates the convenience functions for climate control.

   • Warmer/Ventilation Features: Activates the Convenience functions for warmer/Ventilation.

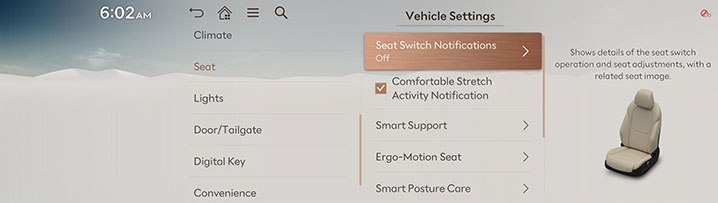

Seat

1. Press Seat on the vehicle settings screen.



2. Select the desired items.

   • Seat Switch Notifications: Details of the Seat Switch Control and Position change are shown with a seat image.

   • Ergo-Motion Active Alert (if equipped): When the ergo-motion activates, operation information is shown with the seat image.

   • Comfortable Stretch Activity Notification (if equipped): When the comfort stretching activates, operation information is shown with the seat image.

   • Smart Support: Increases seat bolster support based on Drive Mode and speed.

   • Ergo-Motion Seat: Reduce fatigue and helps to improve the overall driving experience.

   • Smart Posture Care: Recommends a posture fitting the driver's body type and provides a clinical analysis for back health.

   • Warmer/Ventilation Features: Activates the Convenience functions for warmer/Ventilation.

   • Seating Easy Access: Moves the steering wheel/seats to provide easier exit/entry for the driver and vehicle passengers.

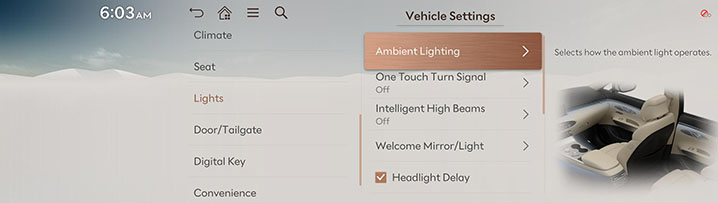

Lights

1. Press Lights on the vehicle settings screen.



2. Select the desired items.

   • Ambient Lighting: Selects how the ambient light operates.

   • One Touch Turn Signal: Selects the number of times the turn signal blinks when the turn signal lever is moved slightly.

   • Intelligent High Beams: Sets the vehicle speed at which the intelligent high beams system activates, or disables the feature.

   • Welcome Mirror/Light: Selects the condition when the outside mirrors will unfold and the door handle light will turn on automatically.

   • Headlight Delay: When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.

   • Lighting Pattern: Selects a lighting pattern. The selected pattern will be applied upon the next ignition.

   • High Beam Assist: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

   • Interior Lights Always On (if equipped): Indoor button and switch lightings are always turned on even during the day.

   • Set Daytime Lighting: External lighting and indoor button lighting can be turned on continuously even during the day.

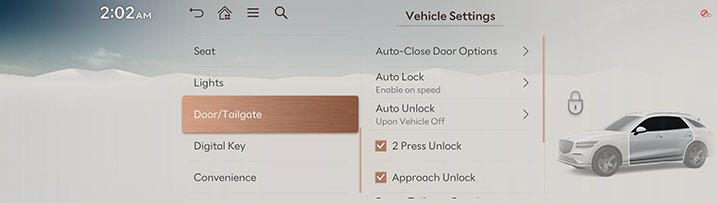

Door/Tailgate

1. Press Door/Tailgate on the vehicle settings screen.



2. Select the desired items.

   • Auto-Close Door Options: Sets how to close doors automatically.

   • Auto Lock: Selects the condition when all doors will lock automatically.

   • Auto Unlock: Selects the condition when all doors will unlock automatically.

   • 2 Press Unlock: Unlocks all doors when the unlock button on the smart key is pressed twice.

   • Power Tailgate Opening Speed: Sets the open speed of tailgate movement.

   • Power Tailgate Opening Height: Sets the height of the opened tailgate.

   • Smart Tailgate: The tailgate will automatically open when approaching the tailgate with the smart key.

   • Remote Window Control: You can set or release remote window control.

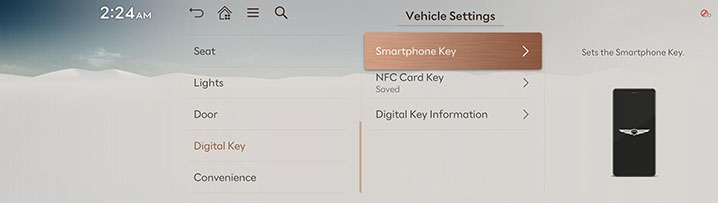

Digital Key

1. Press Digital Key on the vehicle settings screen.



2. Select the desired items.

   • Smartphone Key: Register or delete the smartphone key.

   • NFC Card Key: Register or delete the NFC card key.

   • Digital Key Information: Shows the serial number of the digital key.

Nav. Auto. Features

1. Press Convenience on the vehicle settings screen.



2. Select the desired items.

   • Rear Occupant Alert: When the door on the rear of the vehicle opens and closes, it notifies the driver to check the rear seat passenger and belongings when getting off.

   • Service Interval: Shows the remaining distance and time until the set service check time and notifies when it is time for an inspection.

   • Oil Change Reminder (if equipped): Displays the remaining lifespan of the engine oil. After changing the oil, be sure to reset the remaining oil life.

   • Wireless Charging System for Mobile Devices: Enables the wireless charging pad to be used with compatible devices.

   • Mobile Phone Wireless Charging Indicator: Select the type where the indicator is displayed when charging the phone wirelessly through a wireless charger.

   • Auto Rear Wiper (in R): When the front windshield wiper is active, shifting into reverse will automatically activate the rear wiper.

   • Advanced Anti-Theft: When movement is detected inside the vehicle after the vehicle doors have been locked, a warning sound is output.
