Sound settings

The images displayed on this system may differ from actual ones.

On the home screen, press [Setup] > [Sound].

The sound settings screen is displayed.

,Note

When listening with headphones/earphones connected to the rear earphone connector, the sound settings are not applied. The sound settings are applied to the vehicle speakers.

Adjusting the sound effect (if equipped)

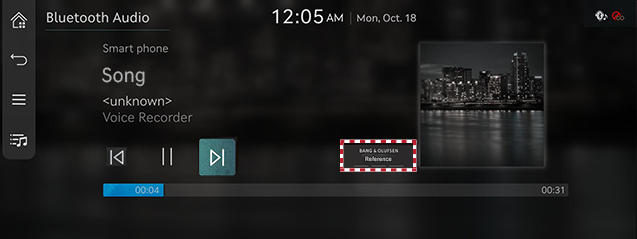

Press the sound effect button on the media/broadcasting screen to adjust.

,Note

However, this function is not provided in the sound settings. Sound effect can be set separately for each media/broadcasting mode. Phone projection/video streaming is linked with the BT sound effect settings.

Description of sound effect modes by the specification.

Bang & Olufsen sound system (if equipped)

• [Reference]: Delivers true sound focusing on original sound source.
• [Surround]: The surround sound technology identifies and re-authors individual sound sources into a precise multi-channel soundstage providing a 10-step surround effect enabling customized surround sound with variable intensity.

Bang & Olufsen premier sound system (if equipped)

• [Reference]: Delivers true sound focusing on original sound source.
• [Surround]: The surround sound technology identifies and re-authors individual sound sources into a precise multi-channel soundstage providing a 10-step surround effect enabling customized surround sound with variable intensity.
• [Bang & Olufsen Home]: An immersive in-cabin venue experience based on algorithms created by detailed and accurate measurements of where Bang & Olufsen’s new innovations are perfected within the acoustics of a home.
• [Boston Symphony Hall]: An immersive in-cabin venue experience based on algorithms created by detailed and accurate measurements of Boston Symphony Hall, one of the world’s top concert halls and the first built using acoustic principles.

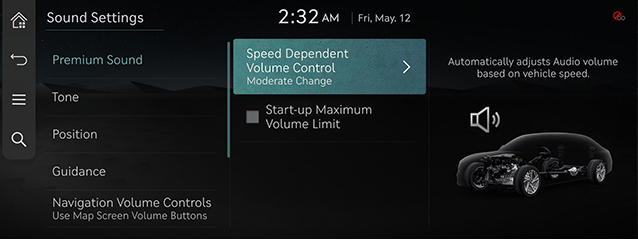

Premium sound

Sets the premium sound.

1. On the sound settings screen, press [Premium Sound].

2. Press the desired item.

• [Bang & Olufsen] (If equipped): Shows sound modes as reference and surround.
• [Speed Dependent Volume Control]: It automatically adjusts volume according to vehicle speed.
• [Start-up Maximum Volume Limit]: When starting vehicle, if audio volume is big, it decreases to adequate volume.

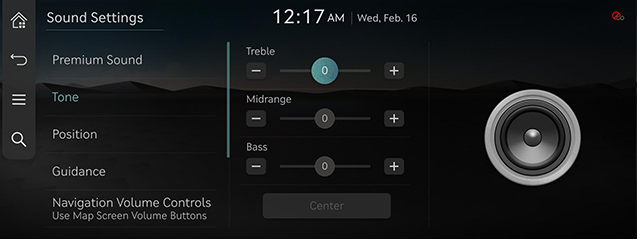

Tone

1. On the sound settings screen, press [Tone].

2. Adjust the desired items.

,Note

Press [Center] to reset the settings.

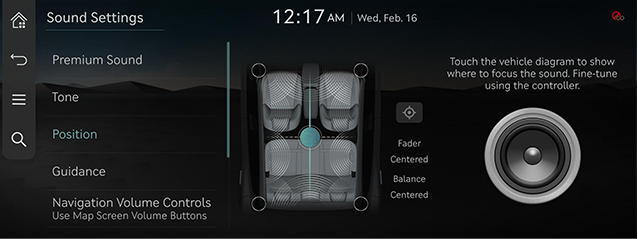

Position

Adjusts the desired seat position.

1. On the sound settings screen, press [Position].

2. Press the desired seat position.

,Note

Press [j] to reset the settings.

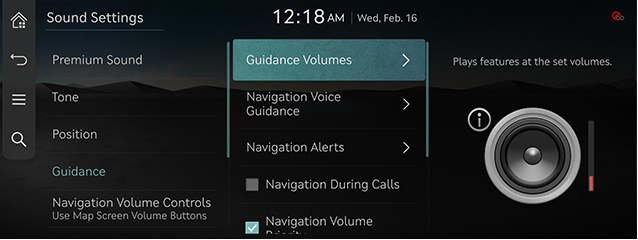

Guidance

1. On the sound settings screen, press [Guidance].

2. Select a desired item.

• [Guidance Volumes]: Sets the guide volume.
• [Navigation Voice Guidance]: Sets voice guidance preferences.
• [Navigation Alerts]: Sets different types of navigation alerts.
• [Navigation During Calls]: Plays audio navigation guidance during phone calls.
• [Navigation Volume Priority]: Media volume will be lowered during navigation guidance.
• [Mute Navigation Guidance]: While navigation guidance is playing, pressing the mute button on the steering wheel will mute guidance for 10 seconds.
• [Welcome Sound]: Provides an audible tone when the cluster turns on or off.

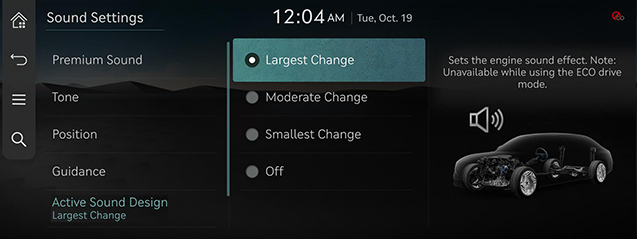

Active sound design (if equipped)

1. On the vehicle settings screen, press [Actvie Sound Design].

2. Press the desired items.

• [Largest Change]/[Moderate Change]/[Smallest Change]/[Off]: Sets the engine sound effect. Note: Unavailable while using the ECO drive mode.

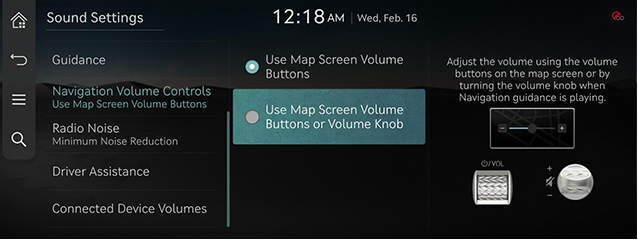

Navigation volume controls

Adjusts the navigation volume on the map screen or on the map screen and the knob.

1. On the sound settings screen, press [Navigation Volume Controls].

2. Select a desired item.

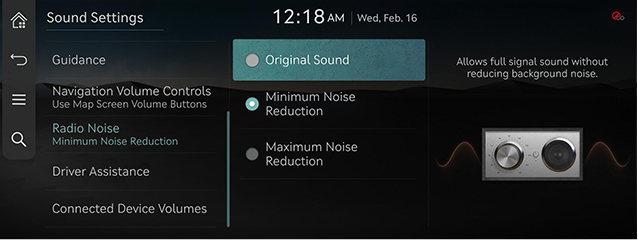

Radio noise

Sets the radio noise.

1. On the sound settings screen, press [Radio Noise].

2. Select a desired item.

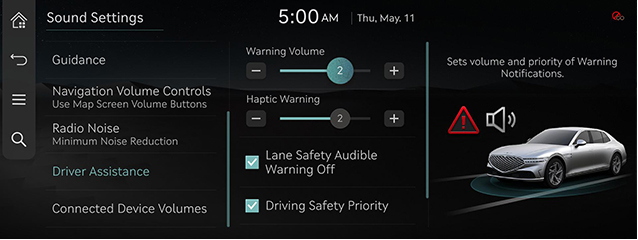

Driver assistance

1. On the sound settings screen, press [Driver Assistance].

2. Select a desired item.

• [Warning Volume]: Adjusts the volume of the warning sound.
• [Haptic Warning]: Adjusts the intensity of the steering wheel vibration warning.
• [Lane Safety Audible Warning Off]: Turns off the lane safety audible warning, even when both warning volume and haptic warning are on.
• [Driving Safety Priority]: Lowers all other audio volumes when a driving safety system sounds a warning.
• [Parking Safety Priority]: Lowers all other audio volumes when a parking assist view is active.

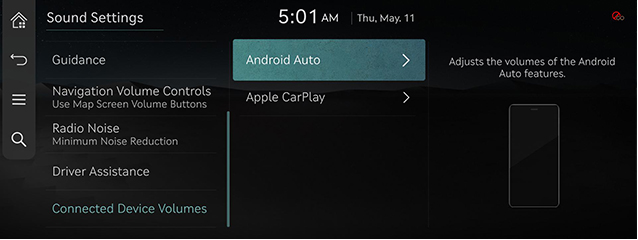

Connected device volumes

Sets the sound for Android Auto or Apple CarPlay.

1. On the sound settings screen, press [Connected Device Volumes].

2. Press the desired item.

,Note

Press [Reset] to reset the volume of the connected device. Media playback stops when operating volume menu.
