Vehicle settings

The images displayed on this system may differ from actual ones.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

On the home screen, press [Setup] > [Vehicle].

The vehicle settings screen is displayed.

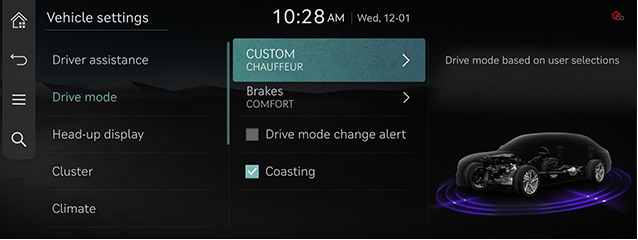

Drive mode

[CUSTOM]: Sets a personalized custom drive mode based on user selections.
[Brakes]: Sets the standard braking mode optimized for comfortable daily driving.
[Drive Mode Change Alert]: Selects change information display method in case of drive mode change.
[Coasting]: Decouples the engine from the transmission wheile coasting for better fuel economy in eco/smart drive modes.

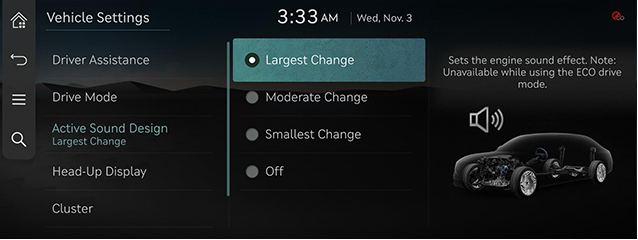

[Largest Change]/[Moderate Change]/[Smallest Change]/[Off]: Sets the engine sound effect. Note: Unavailable while using the ECO drive mode.

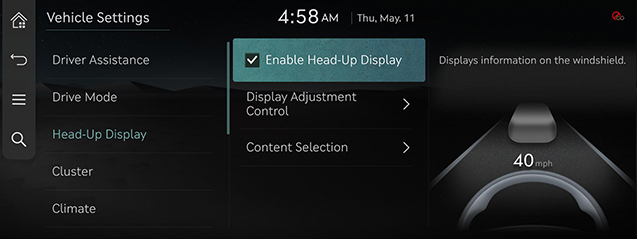

[Enable Head-Up Display]: Sets to show the head-up display on the windshield is available.
[Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
[Content Selection]: Sets the information to display on the heads-up display.

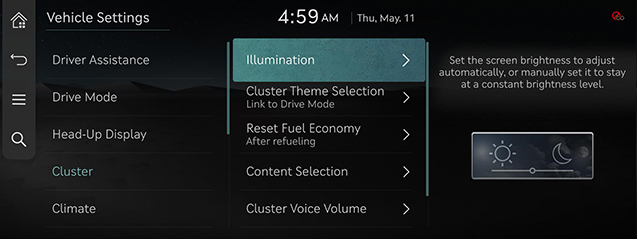

[Illumination]: Set the screen brightness to adjust automatically, or manually set it to stay at a constant brightness level.
[Cluster Theme Selection]: Selects a cluster theme.
[Reset Fuel Economy]: Selects when to reset the average fuel economy display.
[Content Selection]: Selects information to display on cluster.
[Cluster Voice Volume]: Adjusts the cluster voice volume level.
[Welcome Sound]: Provides an audible tone when the cluster turns on or off.

,Note

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier.
If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.
Visibility may decrease if the user adjusts the screen brightness to dark in a bright environment.

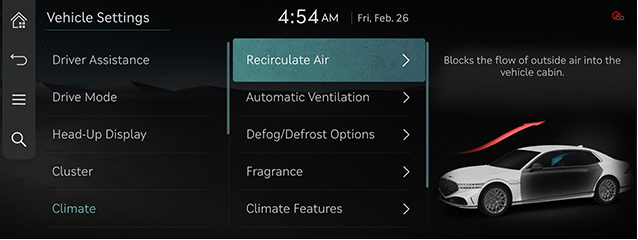

[Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
[Automatic Ventilation]: Switches the ventilation system to fresh air mode automatically after an extended use of recirculate air.
[Defog/Defrost Options]: Directs air to the windshield to reduce moisture on the windshield glass.
[Fragrance]: Selects the intensity and type of fragrance.
[Climate Features]: Activates the convenience functions for climate control.
[Warmer/Ventilation Features]: Sets the warmer/ventilation features.

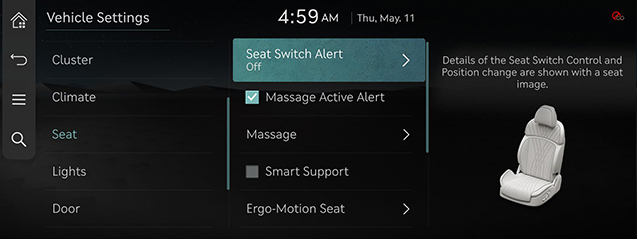

[Seat switch Alert]: When the seat position changes, details of the change are shown with a seat image.
[Massage Active Alert]: When the massage activates, operation information is show with the seat image.
[Massage]: Reduces fatigue and helps to improve the overall driving experience.
[Smart Support]: Increases seat bolster support based on drive mode and speed.
[Ergo-Motion Seat]: Reduce fatigue and helps to improve the overall driving experience.
[Smart Posture Care]: Recommends a posture fitting the driver's body type and provides a clinical analysis for back health.

[Warmer/Ventilation Features]: Sets the heated/ventilated features.
[Seating Easy Access]: The seat/steering wheel are moved so the driver can more easily exit/enter the vehicle.

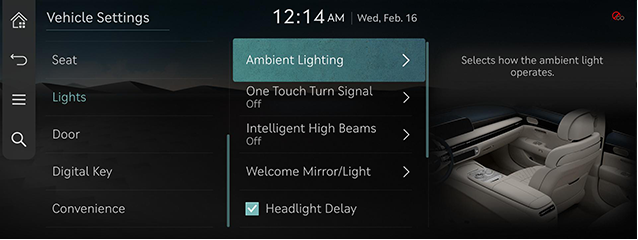

[Ambient Lighting]: Sets the interior mood lighting.
[One Touch Turn Signal]: Selects the number of blinks of turn signal by touching the turn signal lever.
[Intelligent High Beams]: Selects the vehicle speed at which the feature activates, or set to disable the feature.
[Welcome Mirror/Light]: The welcome feature is enabled
[Headlight Delay]: When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.
[Dynamic Welcome Light]: Selects the mode of the dynamic welcome light.
[High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.
[Interior Lights Always On]: Illuminates the interior buttons and switches at all times.

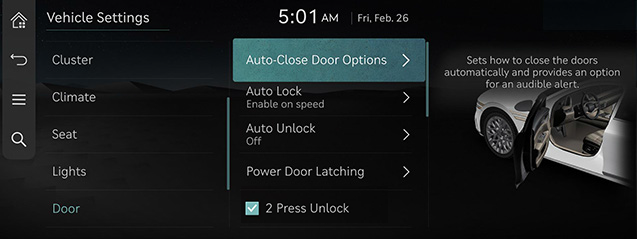

[Auto-Close Door Options]: Sets how to close the doors automatically and provides an option for an audible alert.
[Auto Lock]: Selects the timing for automatic locking all doors.
[Auto Unlock]: Selects the timing for automatic unlocking all doors.
[Power Door Latching]: Select door(s) that will not use power door latching.
[2 Press Unlock]: Press door unlock button of the key to unlock all doors.
[Approach Unlock]: Door handles will unlock when the smart key is nearby.
[Power Trunk]: The power trunk button can be used to automatically open/close the trunk.
[Power Trunk Open Height]: Sets the height of the opened trunk.
[Smart Trunk]: Opens the trunk lid automatically when approaching the trunk with the smart key.
[Remote Window]: Activate/deactivates the remote vehicle window control function.

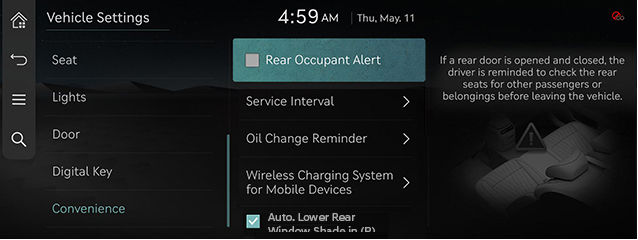

[Rear Occupant Alert]: Provides an alert to the driver that passengers are in the rear seat of the vehicle.

[Service Interval]: Displays an alert when a scheduled service interval is reached.
[Oil Change Reminder]: Displays remaining life of engine oil.
[Wireless Charging System for Mobile Devices]: Enables the wireless charging pad to be used with compatible devices.
[Auto. Lower Rear Windows Shade in (R)]: Automatically lowers the rear window shade when shifting into reverse (R).
