Button/Touch Pad settings

The images displayed on this system may differ from actual ones.

Move to Button/Touch Pad Settings screen

You can set button/touch pad Settings Items.

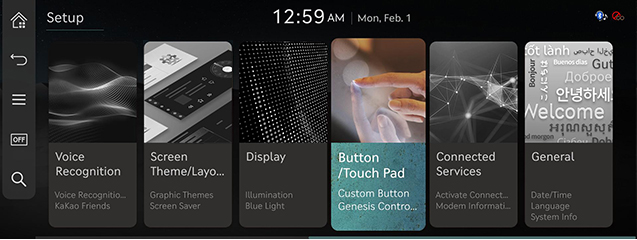

Press [Setup] > [Button/Touch Pad] on the home screen. Button/touch pad settings screen is displayed.

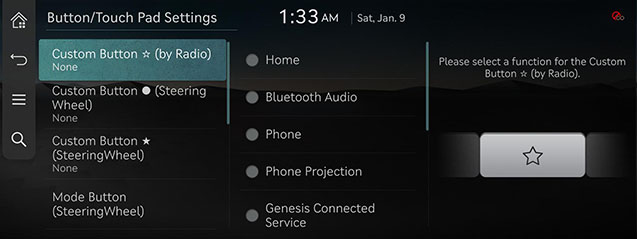

Custom Button

You can set the function you want to execute with the user button.

1. On the button/touch pad settings screen, press [Custom Button K (by Radio)], [Custom Button ● (Steering Wheel)] or [Custom Button L (Steering Wheel)].

• Custom Button K (by Radio)

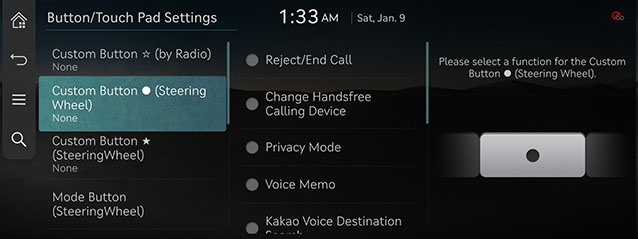

• Custom Button ● (Steering Wheel)

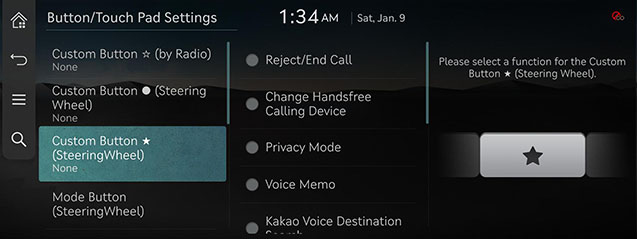

• Custom Button L (Steering Wheel)

2. Press the desired item.

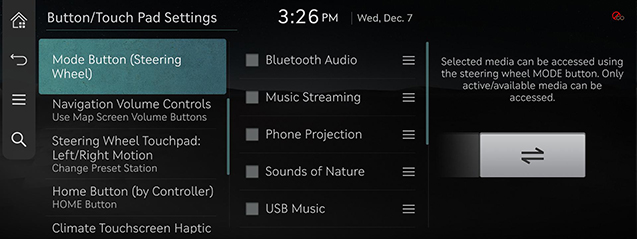

Mode Button (SteeringWheel)

The selected media can be accessed by pressing the steering wheel mode button. Only active/available media can be accessed.

1. On the button/touch pad settings screen, press [Mode Button (SteeringWheel)].

2. Press a desired mode.

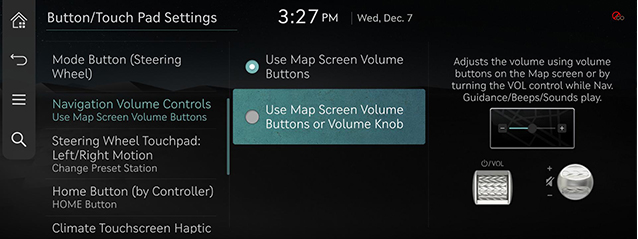

NAVIGATION VOLUME CONTROLS

1. Sets the volume controls used for Nav.Guidance/Beeps/Sounds.

2. Press the desired item.

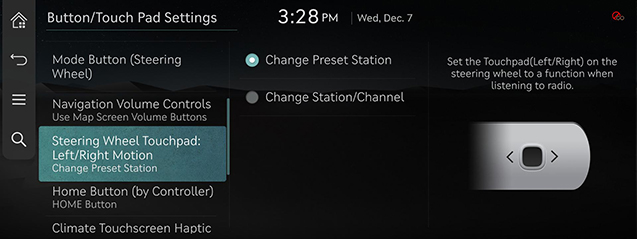

Steering Wheel Touchpad: Left/Right Motion

Sets the touchpad(Left/Right) on the steering wheel to a function when listing to radio.

1. On the button/touch pad settings screen, press [Steering Wheel Touchpad: Left/Right Motion].

2. Press a desired mode.

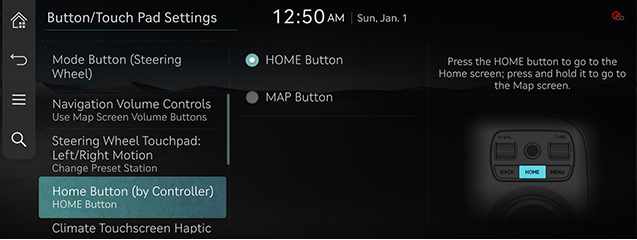

Home Btn (by Controller)

Sets the function to be activated when the Home button is pressed briefly.

1. On the button/touch pad Setting screen, press the [Home Btn (by Controller)].

2. Press a desired item.

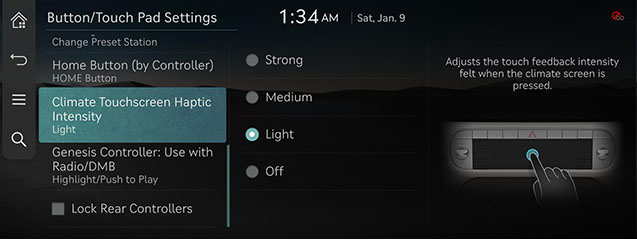

Climate Touchscreen Haptic Intensity

Adjusts the touch feedback intensity felt when the climate screen is pressed.

1. On the button/touch pad settings screen, press [Climate Touchscreen Haptic Intensity].

2. Press a desired item.

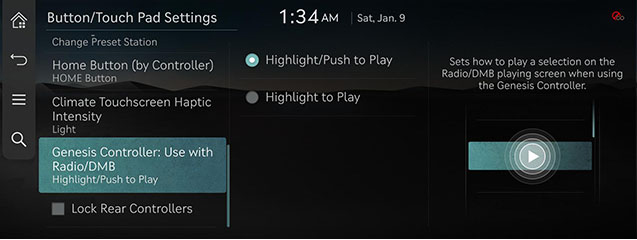

Genesis Controller: Use with Radio/DMB

Sets how to play a selection on the Radio/DMB playing screen when using rotary controller.

1. On the button/touch pad settings screen, press the [Genesis Controller: Use with Radio/DMB].

2. Press a desired item.

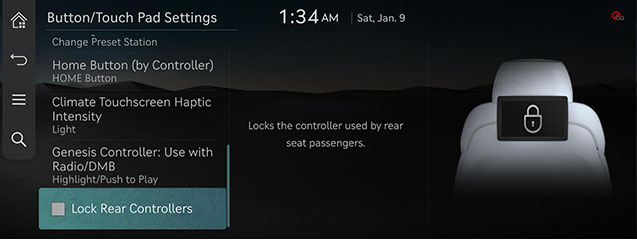

Lock Rear Controllers

Locks the controller used by rear seat passengers.

On the button/touch pad settings screen, turn the [Lock Rear Controllers] on or off.

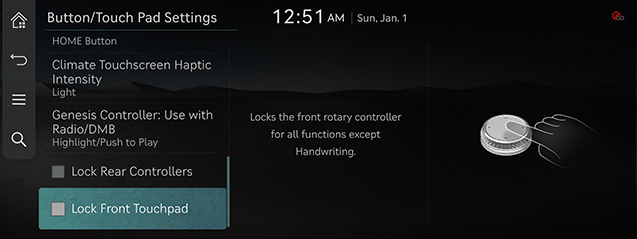

LOCK FRONT TOUCHPAD

Locks the front rotary controller for all functions except Handwriting.

On the button/touch pad settings screen, turn the [Lock Front Touchpad] on or off.
