System

Button/Touch Pad settings

The images displayed on this system may differ from actual ones.

Press [Settings] > [Button/Touchpad] on the home screen. Button/touch pad settings screen is displayed.

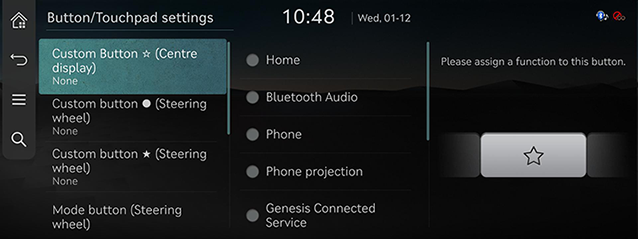

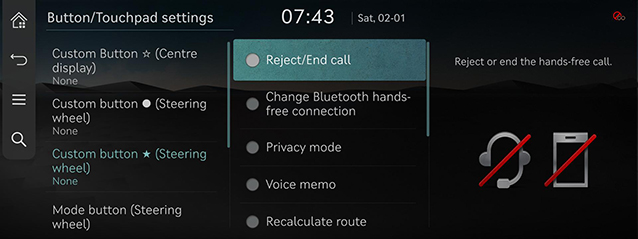

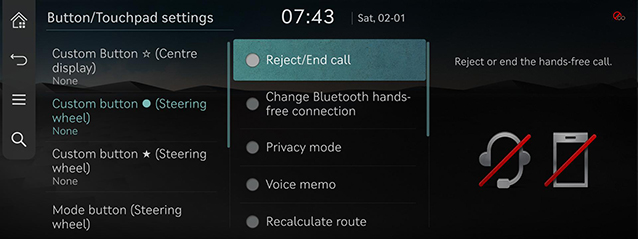

Custom Button

You can set the function you want to execute with the user button.

  1. On the button/touch pad settings screen, press [Custom Button K (Centre display)], [Custom Button 27042.png (Steering Wheel)] or [Custom Button L (Steering Wheel)].




  1. Press the desired item.

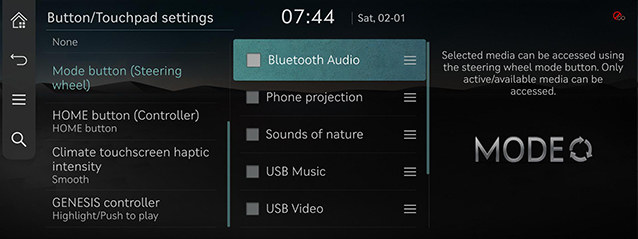

Mode button (Steering wheel)

The selected media can be accessed by pressing the steering wheel mode button. Only active/available media can be accessed.

  1. On the button/touch pad settings screen, press [Mode button (Steering wheel)].


  1. Press a desired mode.

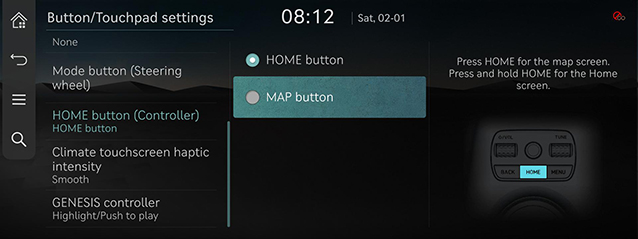

HOME button (Controller)

Sets the function to be activated when the Home button is pressed briefly.

  1. On the button/touch pad settings screen, press the [HOME button (Controller)].


  1. Press a desired item.

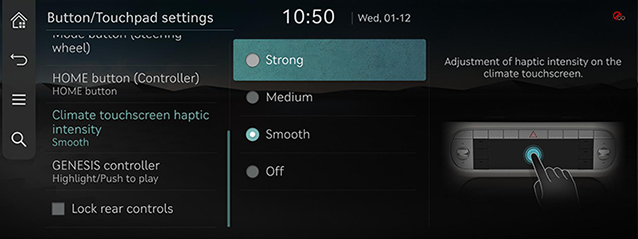

Climate touchscreen haptic intensity

Adjusts the touch feedback intensity felt when the climate screen is pressed.

  1. On the button/touch pad settings screen, press [Climate touchscreen haptic intensity].


  1. Press a desired item.

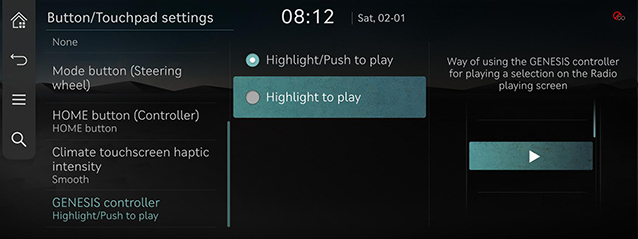

GENESIS controller

Sets how to play a selection on the radio playing screen when using the rotary controller.

  1. On the button/touch pad settings screen, press the [GENESIS controller].


  1. Press a desired item.
