Bluetooth

Bluetooth® Wireless Technology

What is Bluetooth Wireless Technology?

• Bluetooth wireless technology refers to a short-distance wireless networking technology which uses a 2.45GHz frequency to connect various devices within a certain distance.
• Supported within PCs, external devices, Bluetooth phones, PDAs, various electronic devices, and automotive environments, Bluetooth wireless technology to be transmitted without having to use a connector cable.
• Bluetooth hands-free refers to a device which allows the user to conveniently make phone calls with Bluetooth mobile phones through the system.
• The Bluetooth hands-free feature may not be supported in some mobile phones.

Precautions for Safe Driving

• Bluetooth is a feature that enables drivers to use handsfree while driving. Connecting the head unit with a Bluetooth phone allows the user to conveniently make calls, receive calls, and manage the phone book. Before using Bluetooth Wireless Technology, carefully read the contents of this user’s manual.
• Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents. Do not operate the device excessively while driving.
• Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.

Cautions upon Connecting Bluetooth Phone

• Before connecting the head unit with the mobile phone, check to see that the mobile phone supports Bluetooth features.
• If you do not want automatic connection with your Bluetooth device, turn the Bluetooth feature off of the Bluetooth device.
• Park the vehicle when pairing the head unit with the mobile phone.
• Some Bluetooth features may occasionally not operate properly depending on the firmware version of your mobile phone. If such features can be operated after receiving a S/W upgrade from your mobile phone manufacturer, unpair all devices and pair again before use.
• When pairing and the head unit with the iPhone for the first time while your iPhone is connected to the USB port with iPhone cable, error message may be displayed on your iPhone. But, this is intended operation. You may ignore it if your iPhone has been connected to the head unit.

Pairing and connecting the unit and a Bluetooth phone

To use the Bluetooth feature, make sure the Bluetooth on your phone is turned on. Refer to your phone’s user guide.

When no phones have been paired

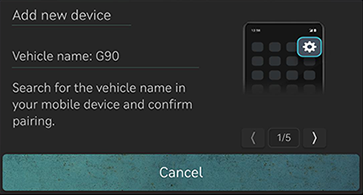

1. Press [W] on steering wheel remote control or [Phone] on the home screen.

Press [Cancel] if desire not to register a new device.

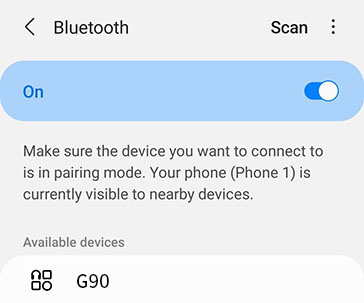

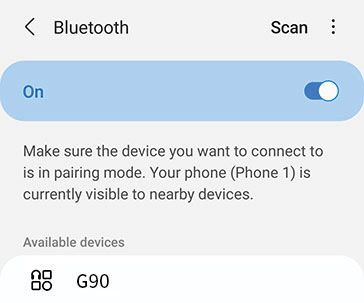

2. Search and select the vehicle name on Bluetooth device registration waiting screen.

<Example of Bluetooth device screen>

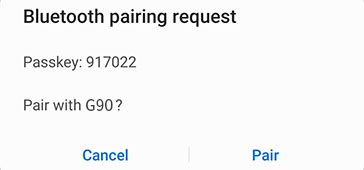

3. Check the passkey and approve the registration on the Bluetooth device.

<Example of Bluetooth device screen>

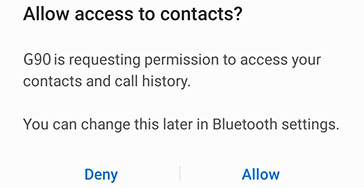

4. A message that approves the access request to the contacts and the call record of the Bluetooth device opens.

<Example of Bluetooth device screen>

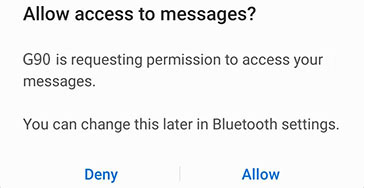

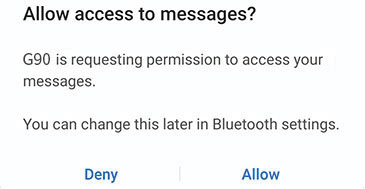

5. A message that request for the access to messages of the Bluetooth device opens.

<Example of Bluetooth device screen>

6. The Bluetooth device is connected.

,Note

The initial vehicle name is registered as "G90". Depending on the Bluetooth device, the certification no. may or may not be entered. Depending on the Bluetooth device or Android, iOS phone, the message may appear differently. For iOS phones, set the Bluetooth notification.

When a phone is already paired

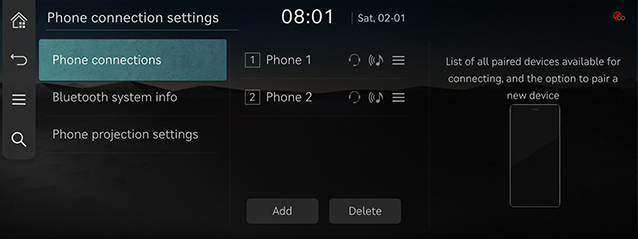

1. Press [Settings] > [Phone connections] > [Phone connections] on the home screen. Bluetooth setting screen opens.

2. Press the name of device to connect. If the device to connect is not found, register the Bluetooth device by selecting [Add].

3. Search and select the vehicle name on Bluetooth device registration waiting screen.

<Example of Bluetooth device screen>

4. Check the passkey and approve the registration on the Bluetooth device.

<Example of Bluetooth device screen>

5. A message that approves the access request to the contacts and the call record of the Bluetooth device opens.

<Example of Bluetooth device screen>

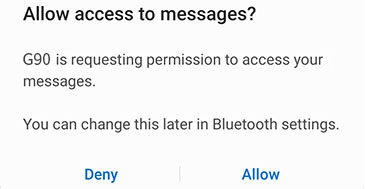

6. A message that request for the access to messages of the Bluetooth device opens.

<Example of Bluetooth device screen>

,Note

The initial vehicle name is registered as "G90". Depending on the Bluetooth device, the certification no. may or may not be entered. Depending on the Bluetooth device or Android, iOS phone, the message may appear differently. For iOS phones, set the Bluetooth notification.

7. The Bluetooth device is connected.

,Note

Up to 6 Bluetooth devices are allowed for the registration. One bluetooth hands-free or two bluetooth device is allowed. No device can be registered while connecting a Bluetooth device. Only features related to Bluetooth Hands-free, the phonebook synchronization, the message synchronization and Bluetooth Audio are supported. Bluetooth Hands-free is specified only on the front screen. A pop-up opens if the certification number entrance is delayed or the registration fails. Try the registration again after selecting [OK].

Change connection

You can connect the head unit and another Bluetooth device already paired.

1. Press [] > [Change connection] on the phone screen.
2. Press the desired Bluetooth device on the pop-up.

,Note

You can use the change connection function by pressing [] on the playing screen.

Cancelling phone connection

1. Press [Settings] > [Phone connections] > [Phone connections] on the home screen. Bluetooth setting screen opens.
2. Press [] of the connected device. The Bluetooth hands-free connection is disconnected.

,Note

Press [a] on the dial pad to move to the Bluetooth settings screen.

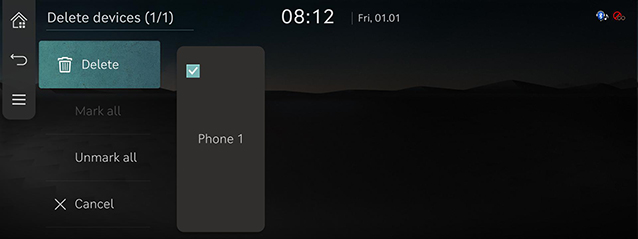

Deleting device

1. Press [Settings] > [Phone connections] > [Phone connections] on the home screen. Bluetooth settings screen opens.
2. Press [] > [Delete devices].

3. Select the desired item, Press [Delete] > [Yes].

• [Mark all]: Selects all items.
• [Unmark all]: Unmarks all items.
• [Cancel]: Exits screen.

,Note

Press [a] on the dial pad to move to the Bluetooth settings screen. When a device is deleted, the recent calls and the contacts of the device saved in the head unit are entirely deleted.
