Climate
The images may differ from the actual components.

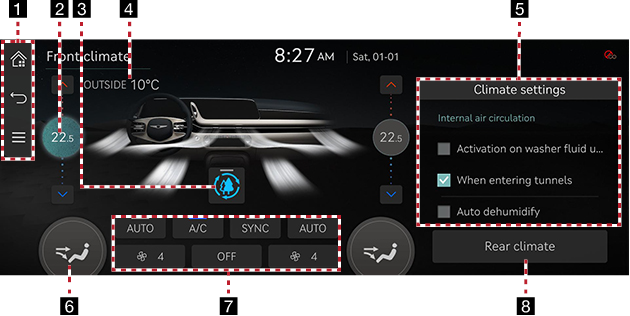

Operating Front climate
Press [Climate] on the home screen.
|
|
1
Moves to the home screen.
It moves to the home screen or a previous screen.
It displays climate menu.
2 Front seat set temperature
It sets the set temperature of the front seat.
3 Air clean mode
The colour is changed according to the air quality and condition inside the vehicle.
4 Outside temperature
It displays the current temperature outside the vehicle.
5 Activation on washer fluid use
Automatically prevents the washer fluid scent from entering the cabin.
Tunnel section
Blocks outside air automatically when entering a tunnel.
Auto dehumidify
Automatically switches to fresh air ventilation to decrease humidity after an extended use of recirculated air.
Defog/Defrost
Sets the DEF button so that it increases fan speed, switches to Fresh Air, activates A/C, and directs air to the windshield to clear it.
Auto defog
Automatically activates various defog functions based on the level of humidity in the vehilce cabin.
Air conditioner auto-drying
Turns on the fan to dry the inside of the air conditioner after the vehicle is turned off.
Seat heating/ventilation
Driver seat warmer/ventilation adjusts automatically based on climate control settings.
Steering wheel heating
Steering wheel warmer adjusts automatically based on climate control settings.
6 Blower position
Changes the seat blower position to up/down.
7 AUTO
The air cooling and heating are automatically activated according to the set temperature.
A/C
When the A/C is active, air conditioner is operated for vehicle cooling.
OFF
Turns off the climate function.
Blower level
Sets the blower speed.
SYNC
When the SYNC is active, passenger seat and driver seat are synchronized.
8 Rear Climate
You can set the rear seat climate controls.
|
,Note |
|
AUTO and blower level buttons may differ depending on the vehicle's option. |

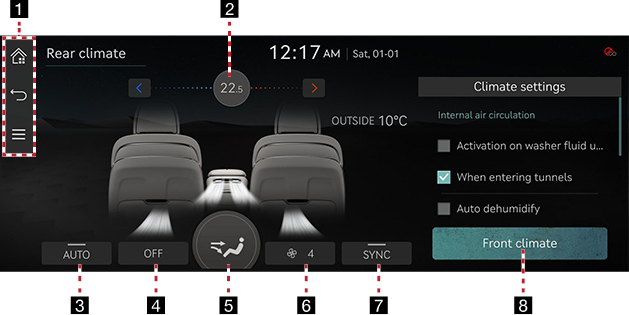

Operating Rear Climate
Controls the climate of the rear seat.
Press [Rear Climate] on the Front Climate screen.
|
|
1
Moves to the home screen.
It moves to the home screen or a previous screen.
It displays climate menu.
2 Rear Seat Set Temperature
You can set the temperature of the rear seat.
3 AUTO
The air cooling and heating are automatically activated according to the set temperature.
4 OFF
Turns off the climate function.
5 Blower Position
Changes the seat blower position to up/down.
6 Blower Level
Sets the blower level.
7 SYNC
When the SYNC is active, front seat temperature is synchronized as the rear seat temperature.
8 Front Climate
You can set the front seat climate controls.
