Vehicle settings

The images displayed on this system may differ from actual ones.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

On the home screen, press [Setup] > [Vehicle].

The vehicle settings screen is displayed.

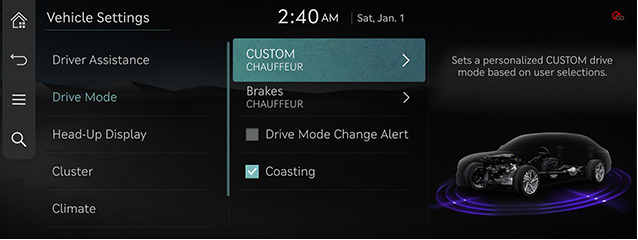

Drive mode

1. On the vehicle settings screen, press [Drive Mode] .

2. Press the desired item.

• [CUSTOM]: Sets a personalized CUSTOM drive mode based on user selections.
• [Brakes]: Selects the brake feel and responsiveness.
• [Drive Mode Change Alert]: Shows details of the drive mode change and a vehicle image highlighting the area involved.
• [Coasting]:Decouples the engine from the transmission while coasting for better fuel economy in ECO/SMART drive modes.

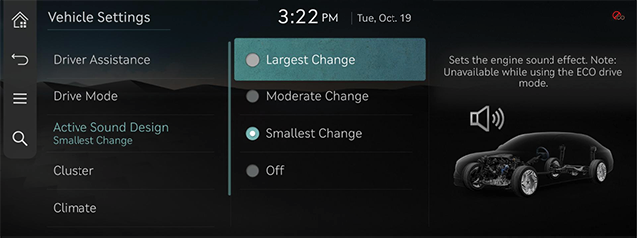

Active sound design (if equipped)

1. On the vehicle settings screen, press [Actvie Sound Design].

2. Press the desired items.

• [Largest Change]/[Moderate Change]/[Smallest Change]: Provides a unique driving sound for EVs and sets the volume.
• [Off]: Turns off the driving sound for EVs. Select a volume to activate this sound feature.

Head-up display

1. On the vehicle settings screen, press [Head-Up Display].

2. Press the desired item.

• [Enable Head-Up Display]: Sets to show the head-up display on the windshield is available.
• [Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
• [Content Selection]: Sets the information to display on the heads-up display.

Cluster

1. On the vehicle settings screen, press [Cluster].

2. Press the desired item.

• [Cluster Theme Selection]: Sets the appearance/theme of the cluster.
• [Reset Fuel Economy]: Selects when to reset the average fuel economy display.
• [Content Selection]: Selects contents to be shown on the cluster display.
• [Welcome Sound]: Provides an audible tone when the cluster turns On or Off.

,Note

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier. If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work. Visibility may decrease if the user adjusts the screen brightness to dark in a bright environment.

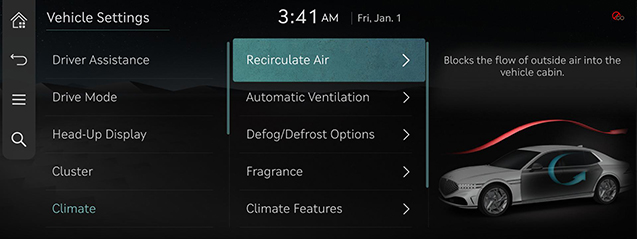

Climate

1. On the vehicle settings screen, press [Climate].

2. Press the desired item.

• [Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
• [Automatic Ventilation]: Automatically switches the ventilation system to the Fresh Air mode after an extended use of Recirculated Air.
• [Defog/Defrost Options]: Sets the function used to reduce moisture on the windshield glass.
• [Fragrance]: Selects the intensity and type of fragrance.
• [Climate Features]: Activates the convenience functions for climate control.
• [Warmer/Ventilation Features]: Activates the Convenience functions for Warmer/Ventilation.

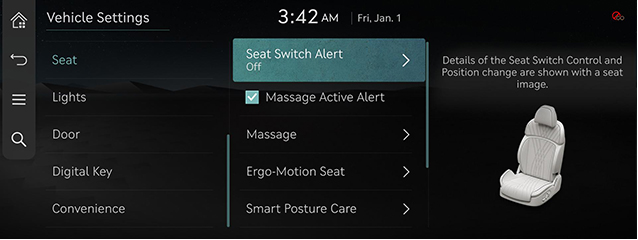

Seat

1. On the vehicle settings screen, press [Seat].

2. Press the desired item.

• [Seat Switch Alert]: Details of the Seat Switch Control and Position change are shown with a seat image.
• [Massage Active Alert]: When the massage activates, operation information is shown with the seat image.
• [Massage]: Reduces fatigue and helps to improve the overall driving experience.
• [Ergo-Motion Seat]: Reduce fatigue and helps to improve the overall driving experience.
• [Smart Posture Care]: Recommends a posture fitting the driver's body type and provides a clinical analysis for back health.

• [Warmer/Ventilation Features]: Activates the Convenience functions for warmer/Ventilation.
• [Seating Easy Access]: Moves the steering wheel/seats to provide easier exit/entry for the driver and vehicle passengers.

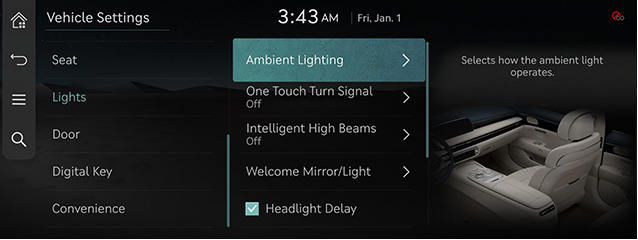

Lights

1. On the vehicle settings screen, press [Lights].

2. Press the desired item.

• [Ambient Lighting]: Selects how the ambient light operates.
• [One Touch Turn Signal]: Selects the number of times the turn signal blinks when the turn signal lever is moved slightly.
• [Intelligent High Beams]: Sets vehicle speed at which the Intelligent High Beams system activates, or disables the feature.
• [Welcome Mirror/Light]: Selects the condition when the outside mirrors will unfold and the door handle light will turn on automatically.
• [Headlight Delay]: When the ignition is turned [OFF], the exterior lights turn off after approximately 15 seconds.
• [High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.
• [Dynamic Welcome Light]: Selects the mode of the dynamic welcome light.

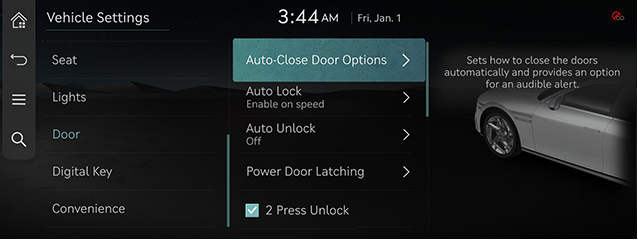

Door

1. On the vehicle settings screen, press [Door].

2. Press the desired item.

• [Auto-Close Door Options]: Sets how to close the doors automatically and provides an option for an audible alert.
• [Auto Lock]: Selects the condition when all doors will lock automatically.
• [Auto Unlock]: Selects the condition when all doors will unlock automatically.
• [Power Door Latching]: Select door(s) that will not use Power Door Latching.
• [2 Press Unlock]: Unlocks all doors when the unlock button on the key is pressed twice.
• [Approach Unlock]: Door handles will unlock when the smart key is nearby.
• [Power Trunk]: The Power Trunk button can be used to automatically open/close the trunk.
• [Power Trunk Open Height]: Selects the height the power trunk automatically moves.
• [Smart Trunk]: Opens the trunk lid automatically when approaching the trunk with the smart key.
• [Remote Window]: Activates/deactivates the remote vehicle window control function.

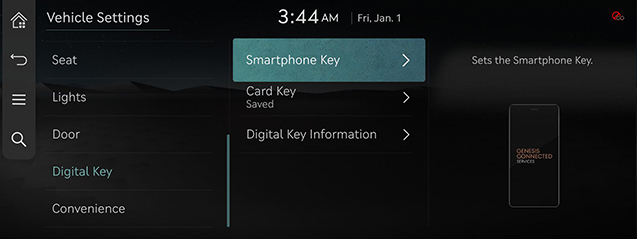

Digital Key

1. On the vehicle settings screen, press [Digital Key].

2. Press the desired item.

• [Smartphone key]: Sets the smartphone key.
• [Card Key]: Saves or deletes a card key.
• [Digital Key Information]: Shows the serial number of the digital key.

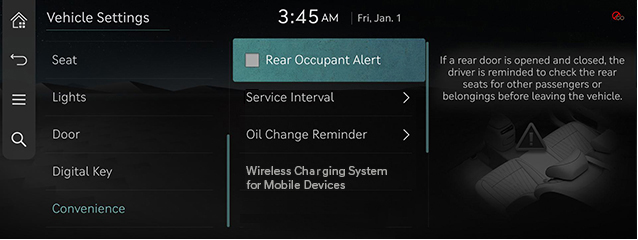

Convenience

1. On the vehicle settings screen, press [Convenience].

2. Press the desired item.

• [Rear Occupant Alert]: If a rear door is opened and closed , the driver is reminded to check the real seats for other passengers or belongings before leaving the vehicle.

• [Service Interval]: Displays an alert when a scheduled service interval is reached.
• [Oil Change Reminder]: Displays remaining life of engine oil. Reset manually after oil change .check the oil level separately.
• [Wireless Changing System for Mobile Devices]: Enables the wireless charging pad to be used with compatible devices.
