Name of each component

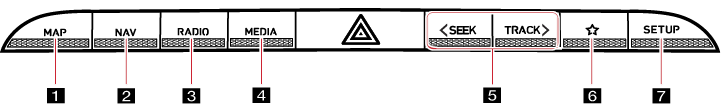

Head Unit

The image of this product may be different from the actual product.

1 MAP button

• Moves to the map screen showing the current position of the vehicle.
• When the destination is set, the voice navigation starts on the map screen.

2 NAV button

• Moves to the navigation menu screen.
• Press and hold to move to the destination search screen.

3 RADIO button

• Activates radio mode.
• Press to change the radio mode.
• Press and hold to move to the media menu screen.

4 MEDIA button

• Press to switch between the media menu screen and the media playback screen.
• Press and hold to move to the media menu screen.

5 A SEEK/TRACK D button

• When it is pressed shortly
• Radio: Plays the previous or next channel.
• Media/Voice memo: Plays the previous or next file.
• When it is pressed and held
• Radio: Changes the frequency until the button is released, then plays the frequency when released.
• Media/Voice memo: Rewinds or fast-forwards the file.

6 K (Custom) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

7 SETUP button

• Moves to the settings screen.
• Press and hold to move to the general settings screen.

Front seat control key

The image of this product may be different from the actual product.

1 :/VOL (Power/Volume) button

• Press to turn media/radio on/off.
• Press and hold to turn on or off the display and the sound.
• Turns the wheel up/down to adjust the volume.

2 BACK button

• Press to move to the previous screen.
• Press and hold to move to the home screen.

3 HOME button

• Press to move to the home screen.
• Press and hold to move to the map screen.

4 Finger scan sensor

Use sensor to select the user profile or convenience features, etc.

5 TUNE/FILE button

• Radio mode: Selects a radio station.
• Media/Voice memo mode: Turns the wheel up/down to search for files. Press the wheel to select a file.
• Navigation: Turn up/down to change the map scale on the map screen.

6 MENU button

Press to display a pop-up menu for each mode.

7 Controller

• Use controller to move and select the menu as well as handwriting input.
• Use controller to change the map scale on the map screen.

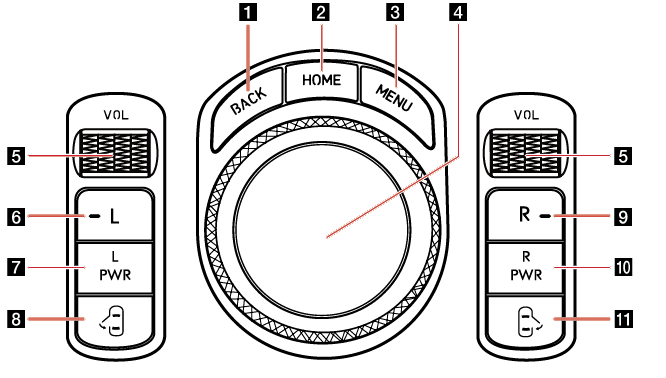

Rear Seat Control Key

The Rear Seat Control function keys differ depending on the selected option. The images may differ from the actual components.

1 BACK button

• Press to move to the previous screen.
• Press and hold to move to the home screen.

2 HOME button

• Press to move to the home screen.
• Press and hold to move to the map screen.

3 MENU button

Press to display a pop-up menu for each mode.

4 Controller

• Use controller to move and select the menu.
• Use controller to change the map scale on the map screen.

5 VOL wheel button

Turn the wheel up/down to adjust the volume.

6 L button

Sets the rear seat control key to control the rear left display.

7 L PWR button

• Press the button to turns on or off the rear left display.
• Press and hold the button to turn the AV system on or off.

8 Automatic door button (Rear left)

Close the rear left door.

9 R button

Sets the rear seat control key to control the rear right display.

10 R PWR button

• Press the button to turns on or off the rear right display.
• Press and hold the button to turn the AV system on or off.

11 Automatic door button (Rear right)

Close the rear right door.

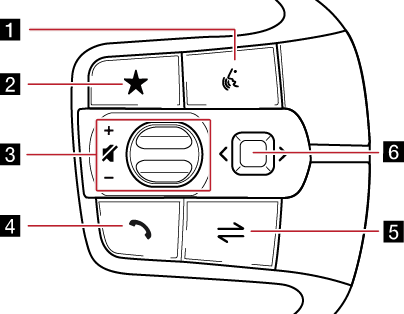

Steering wheel remote control (Right)

The image of this product may be different from the actual product.

1 i (Voice recognition) button

Activates voice recognition mode.

2 L (Custom) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

3 J / I (Tumbler) button

Turns the tumbler up/down to adjust the volume.

f (Mute) button

Press the tumbler to turn mute on/off.

4 (Bluetooth call) button

• When there is no connected Bluetooth device, search for connectable Bluetooth devices and connect or add a new device.
• When connected to a Bluetooth device,
• To move to the call history screen, press the button briefly.
• To dial the last phone number of a connected Bluetooth device, press and hold the button.

5 MODE button

• Press to select the media mode to play.
• Press and hold to move to the mode button settings screen.

6 Optical touch pad

(You can use AVN [Audio/Video/Navigation] control if the search mode in the split screen of the cluster is not.)

• When it is swiped
• Radio mode: Moves to the previous or next frequency saved.
• Media/Voice memo mode: Plays the previous or next file.
• When it is dragged
• Radio mode: Changes the frequency until you lift your finger, and then search for the frequency.
• Media/Voice memo mode: Rewinds or fast-forwards the file. (Except for the mode of sounds of nature)

,Note

Check how to operate the optical touch pad. Swipe: Swipe the optical touch pad to up/down/left/right with your finger. Drag: Stop at the edge of the optical touch pad without passing it completely with your finger.

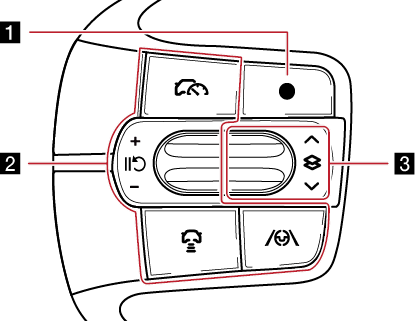

Steering wheel remote control (Left)

The image of this product may be different from the actual product.

1 Custom button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

2 button

For details, refer to the vehicle instruction manual.

3 Tumbler button

Press or turn up/down the button to change the gauge style and view mode displayed on the cluster screen.
