Vehicle settings

The images displayed on this system may differ from actual ones.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

On the home screen, press [Setup] > [Vehicle].

The vehicle settings screen is displayed.

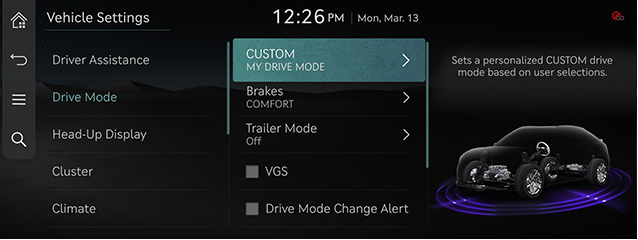

Drive mode

[CUSTOM]: Sets a personalized custom drive mode based on user selections.
[Brakes]: Sets the standard braking mode optimized for comfortable daily driving.
[Trailer Mode]: This function maintains the driving performance and estimates the Distance To Empty (DTE) when pulling a trailer.
[VGS]: VGS provides retro emotions of vehicles equipped with an engine/transmission by creating a virtual shift.
[Drive Mode Change Alert]: Selects change information display method in case of drive mode change.
[Climate Ctrl Eco Mode]: ECO climate control can help increase driving range by reducing the heating and cooling power of the climate control system.

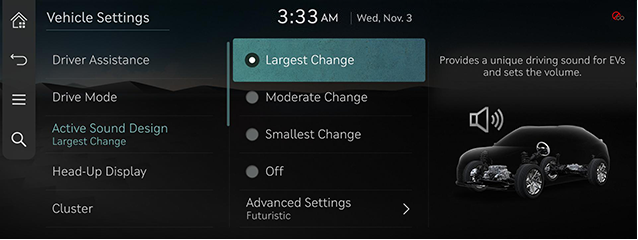

[Largest Change]/[Moderate Change]/[Smallest Change]: Provides a unique driving sound for EVs and sets the volume.
[Off]: Turns off the driving sound for EVs. Select a volume to activate this sound feature.
[Advanced Settings]: Provides a user-customized sound.
[Futuristic]: Provides a futuristic driving sound for electric vehicles.
[S-Engine]: Provides a sporty engine sound for electric vehicles.
[E-Motor]: Provides a natural electric motor sound for EVs.
[Custom Sound]: Provides additional sound settings to select a personalized EV sound.

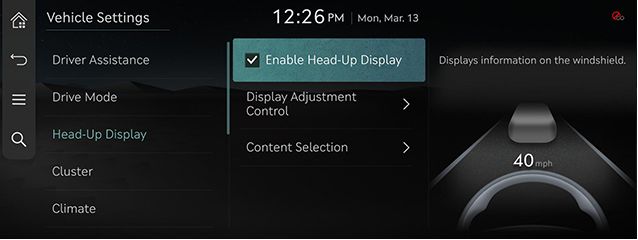

[Enable Head-Up Display]: Sets to show the head-up display on the windshield is available.
[Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
[Content Selection]: Sets the information to display on the heads-up display.

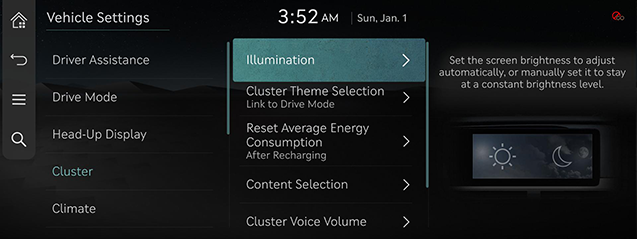

[Illumination]: Set the screen brightness to adjust automatically, or manually set it to stay at a constant brightness level.
[Cluster Theme Selection]: Selects a cluster theme.
[Reset Average Energy Consumption]: Selects when to reset the average energy consumption.
[Content Selection]: Selects information to display on cluster.
[Cluster Voice Volume]: Adjusts the cluster voice volume level.
[Welcome Sound]: Provides an audible tone when the cluster turns on or off.

,Note

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier.
If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.
Visibility may decrease if the user adjusts the screen brightness to dark in a bright environment.

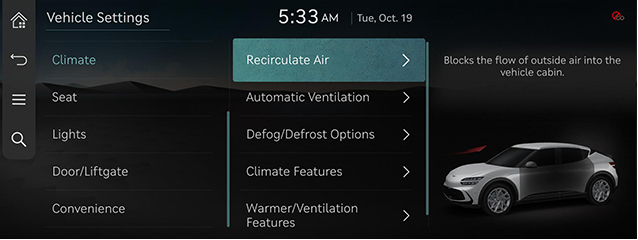

[Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
[Automatic Ventilation]: Switches the ventilation system to fresh air mode automatically after an extended use of recirculate air.
[Defog/Defrost Options]: Directs air to the windshield to reduce moisture on the windshield glass.
[Climate Features]: Activates the convenience functions for climate control.
[Warmer/Ventilation Features]: Sets the warmer/ventilation features.

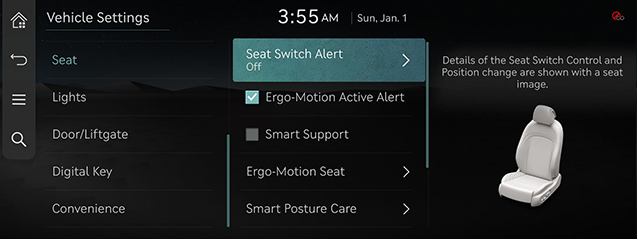

[Seat Switch Alert]: Details of the seat switch control and position change are shown with a seat image.
[Ergo-Motion Active Alert]: When the ergo-motion activates, operation information is shown with the seat image.
[Smart Support]: Increases seat bolster support based on drive mode and speed.
[Ergo-Motion Seat]: Reduces fatigue and helps to improve the overall driving experience.
[Smart Posture Care]: Recommends a posture fitting the driver's body type and provides a clinical analysis for back health.

[Warmer/Ventilation Features]: Sets the heated/ventilated features.
[Seating Easy Access]: The seat/steering wheel are moved so the driver can more easily exit/enter the vehicle.

[Ambient Lighting]: Sets the interior mood lighting.
[One Touch Turn Signal]: Selects the number of blinks of turn signal by touching the turn signal lever.
[Intelligent High Beams]: Selects the vehicle speed at which the feature activates, or set to disable the feature.
[Welcome Mirror/Light]: The welcome feature is enabled
[Headlight Delay]: When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.
[Dynamic Welcome Light]: Selects the mode of the dynamic welcome light.
[Travel Mode]: Reduce the headlight range to prevent glare for oncoming cars within countries with opposing driving directions.
[High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.
[Interior Lights Always On]: Illuminates the interior buttons and switches at all times.

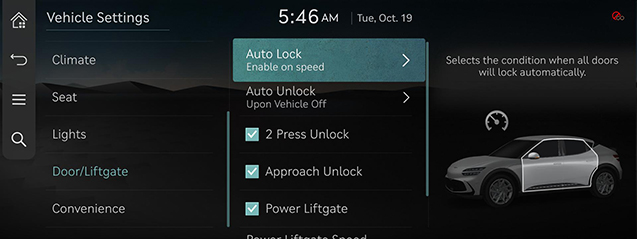

[Auto Lock]: Selects the timing for automatic locking all doors.
[Auto Unlock]: Selects the timing for automatic unlocking all doors.
[2 Press Unlock]: Press door unlock button of the key to unlock all doors.
[Approach Unlock]: Door handles will unlock when the smart key is nearby.
[Power Liftgate]: Power liftgate button can be used to automatically open/close the liftgate.
[Power Liftgate Speed]: Sets the speed of liftgate movement.
[Power Liftgate Open Height]: Sets the height of the opened liftgate.
[Smart Liftgate]: The liftgate will automatically open when approaching the liftgate with the smart key.
[Remote Window]: Activate/deactivates the remote vehicle window control function.

[Rear Occupant Alert]: Provides an alert to the driver that passengers are in the rear seat of the vehicle.

[Service Interval]: Displays an alert when a scheduled service interval is reached.
[Wireless Charging System for Mobile Devices]: Enables the wireless charging pad to be used with compatible devices.
[Digital side mirror reference line]: When using the turn signal while driving, rear distance line appear in the digital side mirrors.
