Basic controls

Turning the system on

The images displayed on this system may differ from actual ones.

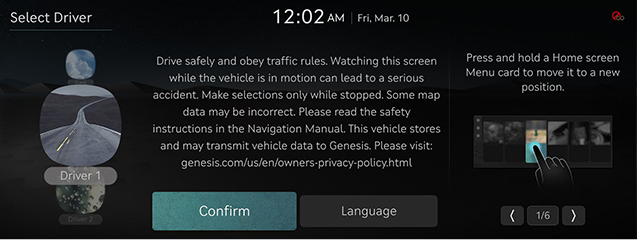

1. Press [START/STOP] button. Once the system is turned on, the booting process will start and the safety warning page is displayed.

• Press [Language] to change the language of the system display.
• Press [Driver 1], [Driver 2] or [Guest] to change the profile of system.

2. Press [Confirm].

,Note

You cannot operate the system while it is booting up. It may take some time for all of the features of the system boot up.

Turning the system off

Press and hold the power button on the front seat control key to turn off the system.

Press the power button on the front seat control key to turn on the system.

,Note

Check the volume when turning on the system. Before turning on the system, adjust the volume to a reasonable level.

Adjust av or volume

AV on/off

Press the power button on the front seat control key to turn the AV on/off.

Adjusting the volume

Rotate the volume control knob on the front seat control key.

Resetting the system

Resets the system when unexpected errors or problems occur.

1. After turning the vehicle off, press the start button once without pressing brake pedal.

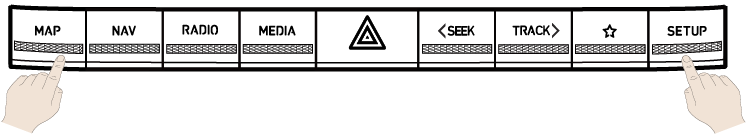

2. Press and hold the [MAP] button and the [SETUP] button on the head unit for 5 seconds.

Using the controller and touchpad

Controller	Details
	Turn the controller clockwise/counterclockwise to move the list in the menu. Operate zoom in/zoom out on the map screen.
	Swipe up/down/left/right on touchpad to switch the menu.
	Press touchpad to select a menu. Enter character through handwriting input on a specific screen.
	Push the controller up/down/left/right/diagonal to move the menu and map location. Push and hold the controller to scroll the location on the map.

Using the touch screen

Press the desired menu on the screen to select a menu.

,Note

If you use the touch screen while driving, your attention to driving may be distracted.

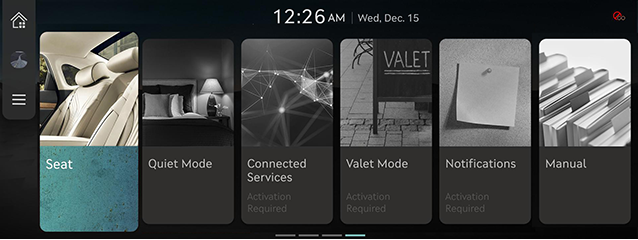

Basic Controls of HOME Screen

The images displayed on this system may differ from actual ones.

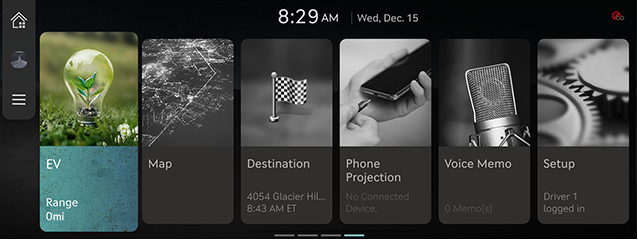

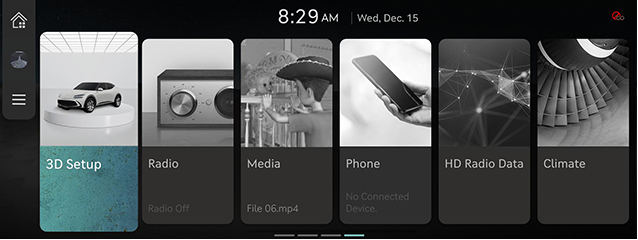

1. Press [HOME] on the front seat control key or press []. The home screen opens.

2. Select a desired menu on the home screen.
3. Follow-up controls are available for the selected menu.

Editing HOME Screen

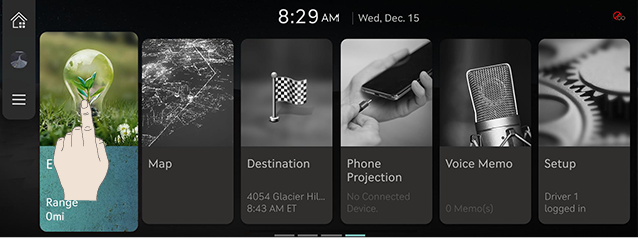

Press and hold the menu icon on the home screen to change the location.

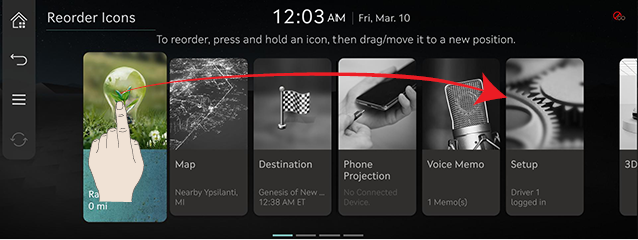

1. Press and hold the menu icon on the home screen.

2. Change the position.

3. Press [].

,Note

Press [D] to reset the home icon settings.
